EH15EFXRW07 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Enamel, Black (1 Qt. Uncut)
	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
	72032 Whirlpool Touch Up Paint Black
	Leveler (Thinner) (2oz.)
	WPL LIT656493
	List, Parts
	Energy Guide
	Use & Care Guide
	Kit, Insulation (Door Only)
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	VALVE, ACCESS (5/8“)
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	876764 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	WP505587 Whirlpool Refrigerator Sealer
	978027 Whirlpool Refrigerator Primary Valve
	Tech Sheet

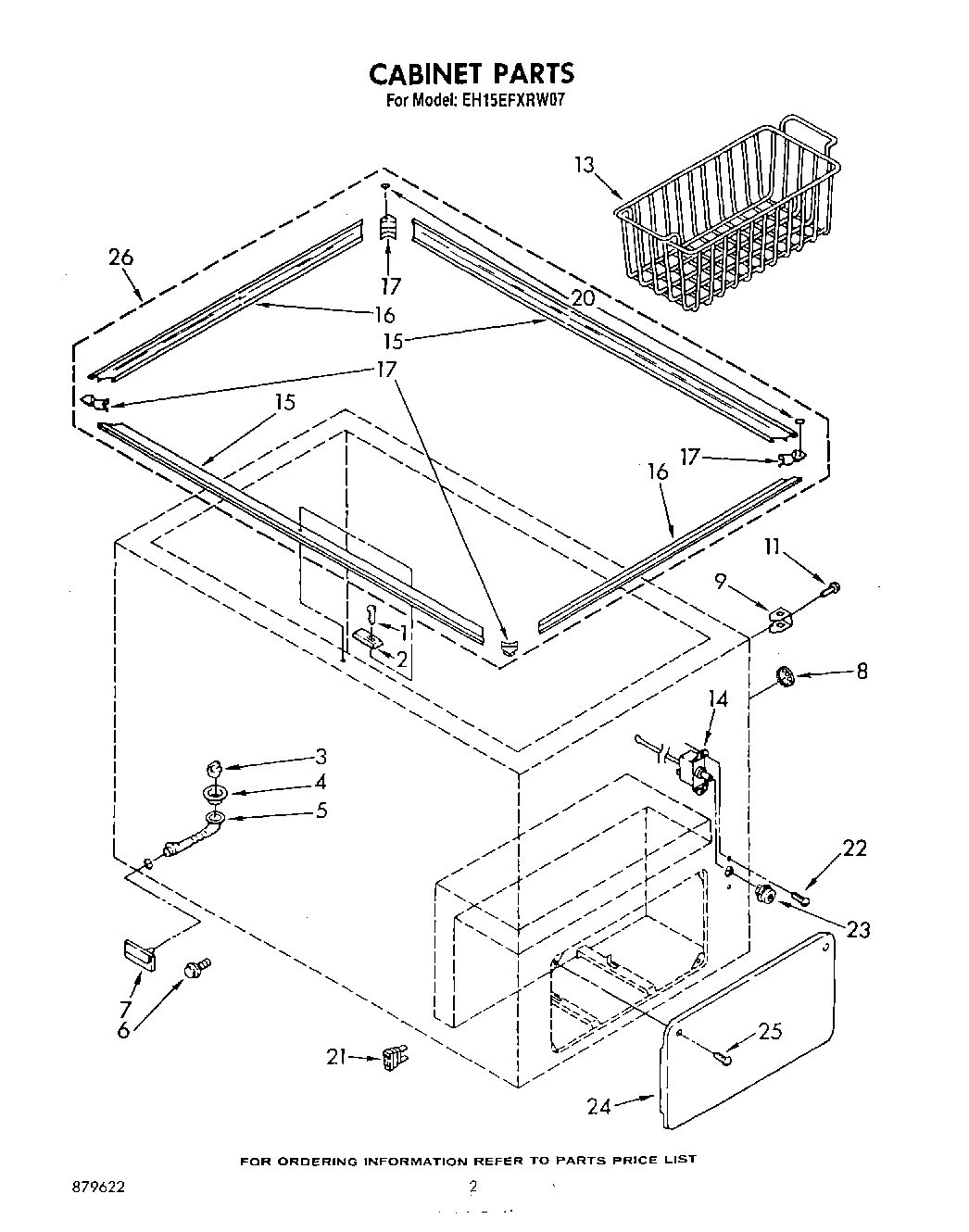

1	Screw
2	Box, Strike
3	Plug, Drain
4	Ferrule, Drain
5	Tube, Drain
6	Adapter, Hose
7	Cover, Drain
8	Plug Button
9	Rod Holder Assembly
11	Bolt, Machine
13	Basket (2)
14	Control, Cold
15	Collar (2) (Front & Rear)
16	Collar, End (2)
17	Corner, Front (2)
20	Grommet (2)
21	Light, Indicator
22	Screw
23	Knob, Control
24	Door
25	Screw
26	Collar Kit (Items 15, 16, 17 18, 19, and 20 Are Included In Collar Kit)
