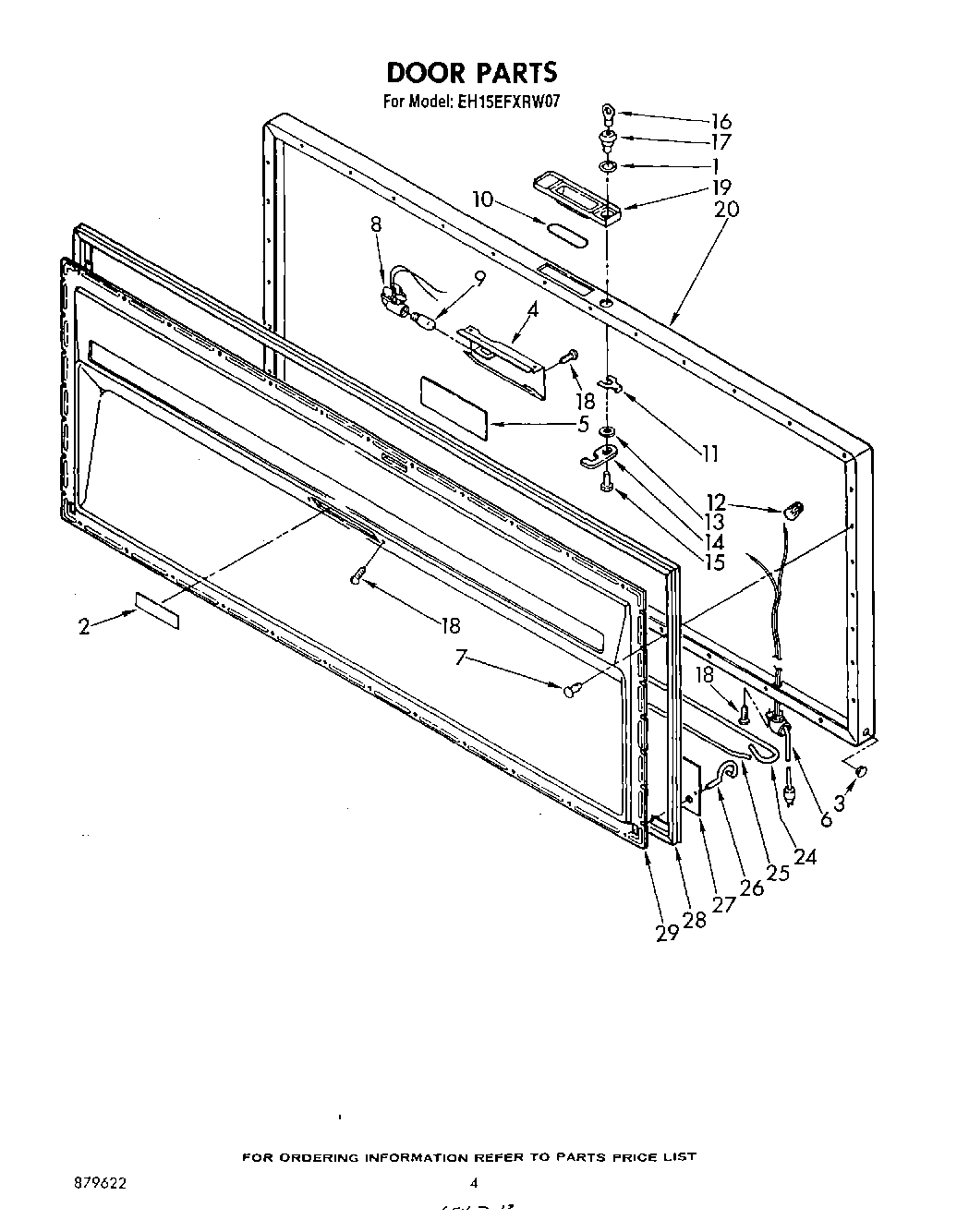

| 1 | ``O`` Ring |
| 2 | Decal, Panel |
| 3 | Hole Plug (2) |
| 4 | Deflector, Light |
| 5 | Tape, Foil Backed |
| 6 | Harness, Exterior Door |
| 7 | Clip (36) |
| 8 | Lampholder |
| 9 | Bulb, Light |
| 10 | Gasket, Handle |
| 11 | Clip, Spring |
| 12 | Conector, Wire |
| 13 | Plate, Bolt |
| 14 | Hook, Lock |
| 15 | Screw |
| 16 | WP842177 Whirlpool Refrigerator Door Key |
| 17 | Lock |
| 18 | WP965173 Whirlpool Dishwasher Screw |
| 19 | Handle |
| 20 | Panel, Door Exterior |
| 24 | Torsion Bar, L.H. |
| 25 | Torsion Bar, R.H. |
| 26 | Hinge, R.H. |
| 26 | Hinge, L.H. |
| 27 | Cover, Hinge Rod (2) |
| 28 | Gasket |
| 29 | Panel, Door Interior |
