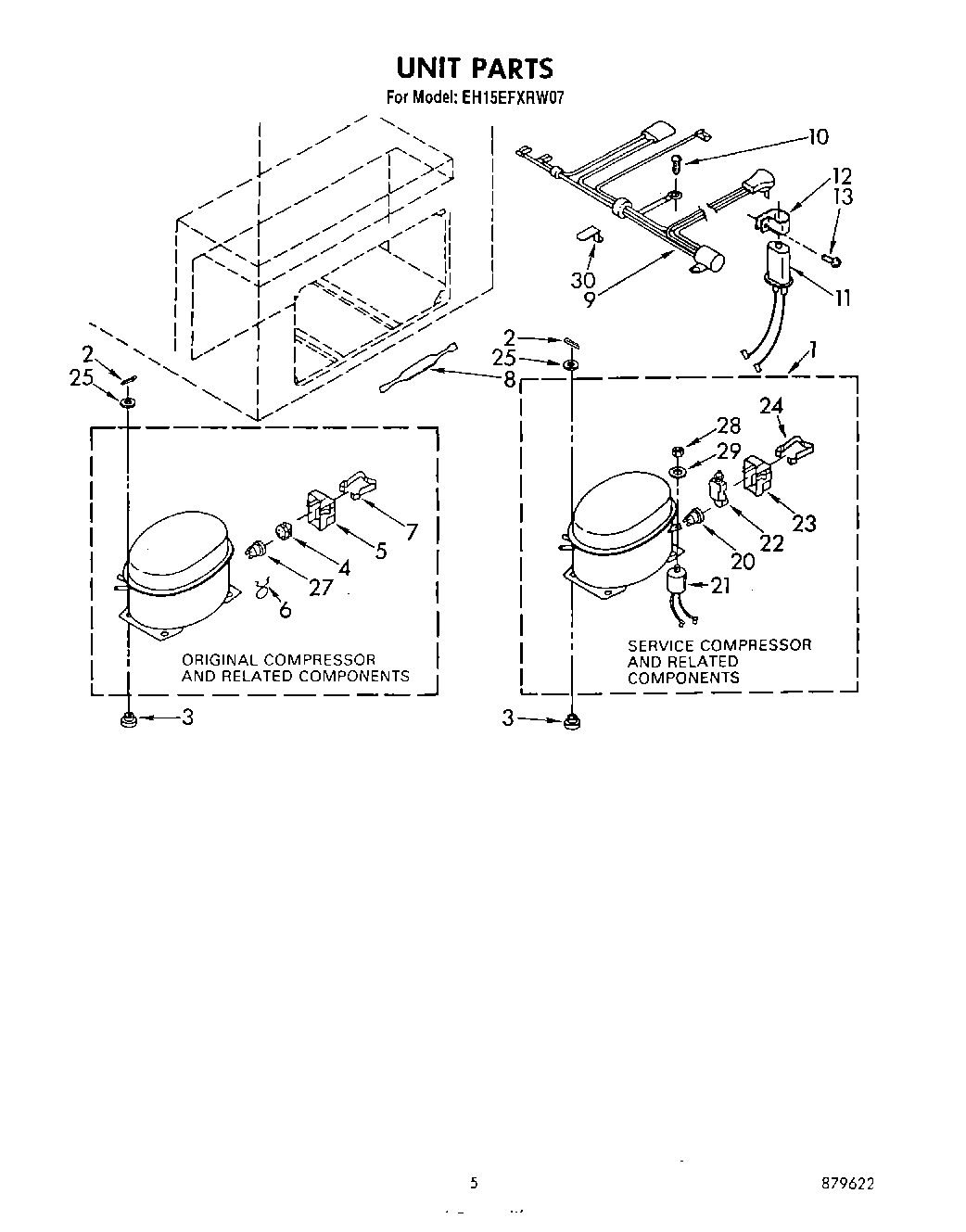

| 1 | Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu |
| 2 | Clip (4) |
| 3 | 876811 Whirlpool Grommet |
| 4 | WP2262181 Whirlpool Refrigerator Start Relay |
| 5 | Cover |
| 6 | Overload Spring |
| 8 | Drier |
| 9 | Harness, Wiring |
| 10 | Screw |
| 11 | Running Capacitor |
| 12 | WP43449 Whirlpool Bracket |
| 13 | Screw, 8-32 x 1/2 |
| 20 | Overload |
| 21 | Capacitor |
| 22 | Relay |
| 23 | Cover, Terminal |
| 24 | Strap |
| 25 | Washer |
| 27 | Overload (Used w/Original Compressor) |
| 28 | Nut |
| 29 | Washer |
| 30 | Clip, Cord Plug |
