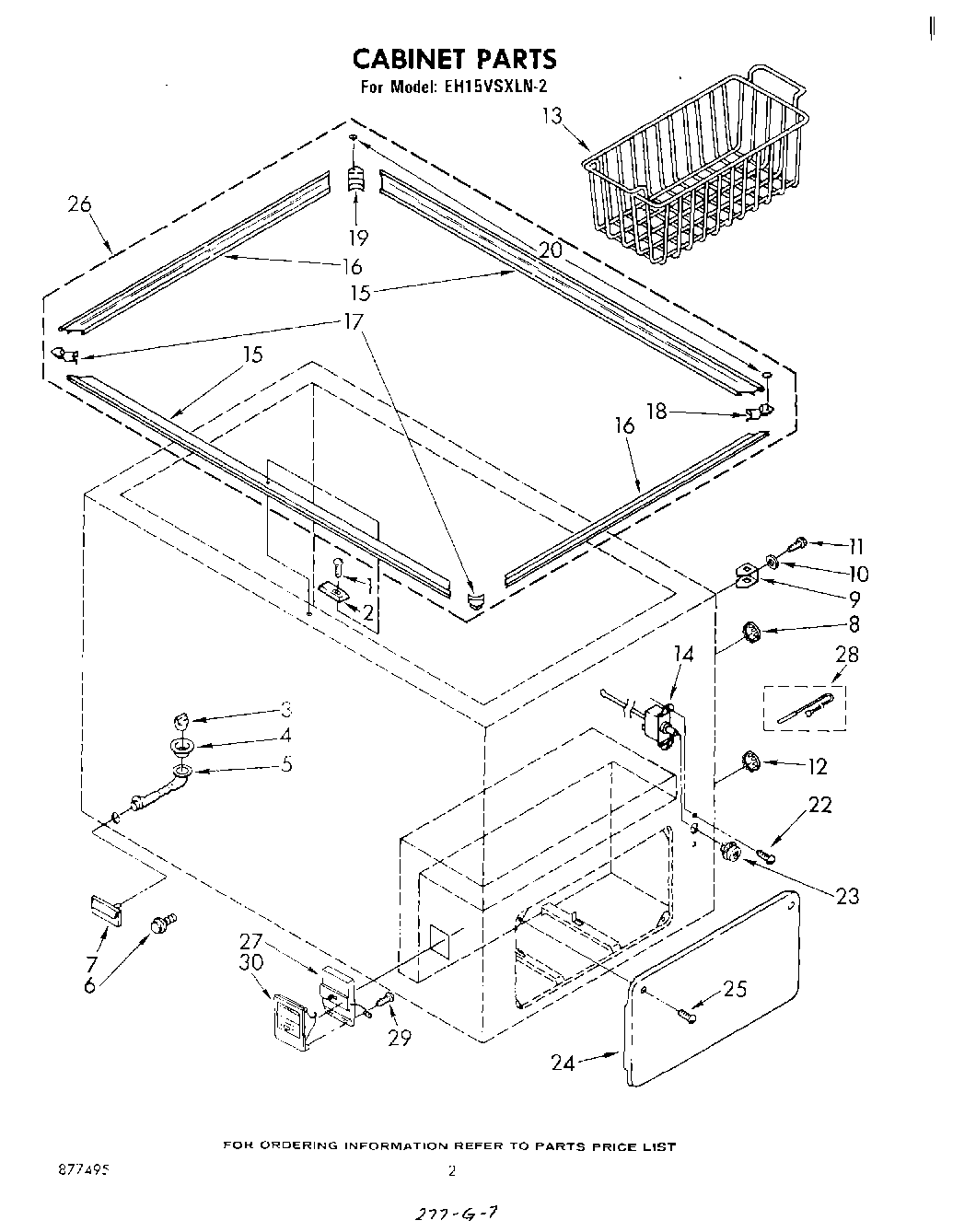

EH15VSXLN2 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	Leveler (Thinner) (2oz.)
	xEnamel, Black (12 Oz. Spray Can)
	350942 Whirlpool Spray Paint
1	Screw
2	Box, Strike
3	Plug, Drain
4	Ferrule, Drain
5	Tube, Drain
6	Adapter, Hose
7	Cover, Drain
8	Plug Button
9	Rod Holder Assembly
10	WP120393 Whirlpool Washer Assembly
11	Screw
12	Plug, Button
13	Basket (2)
14	Control, Cold
15	Collar (2) (Front & Rear)
16	Collar, End (2)
17	Corner, Front (2)
18	Corner (Right Rear)
19	Corner (Right Rear)
20	Grommet (2)
22	Screw
23	Knob, Control
24	Door
25	Screw
26	Collar Kit (Items 15, 16, 17 18, 19, and 20 Are Included In Collar Kit)
27	Temperature Alarm Assembly
28	Sensor Kit (Alarm)
29	WP488787 Whirlpool Refrigerator Screw
30	72017 Whirlpool Appliance Touch-Up Paint White
30	Energy Guide
30	Kit, Insulation (Door Only)
30	Book, How To Freeze
30	212643 Whirlpool Refrigerator Permagum Sealer
30	Tech Sheet
30	Guide, Use & Care
30	Temperature Housing Assembly
30	List, Parts
30	WPL 799351
30	799344 Whirlpool Refrigerator Paint
30	Enamel, Black (1 Qt. Uncut)
30	VALVE, ACCESS (1/2“)
30	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
30	WP978025 Whirlpool Refrigerator Valve
30	978030 Whirlpool Refrigerator Valve
30	978027 Whirlpool Refrigerator Primary Valve
30	WP505587 Whirlpool Refrigerator Sealer
30	978026 Whirlpool Refrigerator Primary Valve
30	WP503695 Whirlpool Refrigerator Sealer
30	VALVE, ACCESS (5/8“)
30	72032 Whirlpool Touch Up Paint Black
30	WP72107 Whirlpool Touchup
30	Almond (Uncut)
