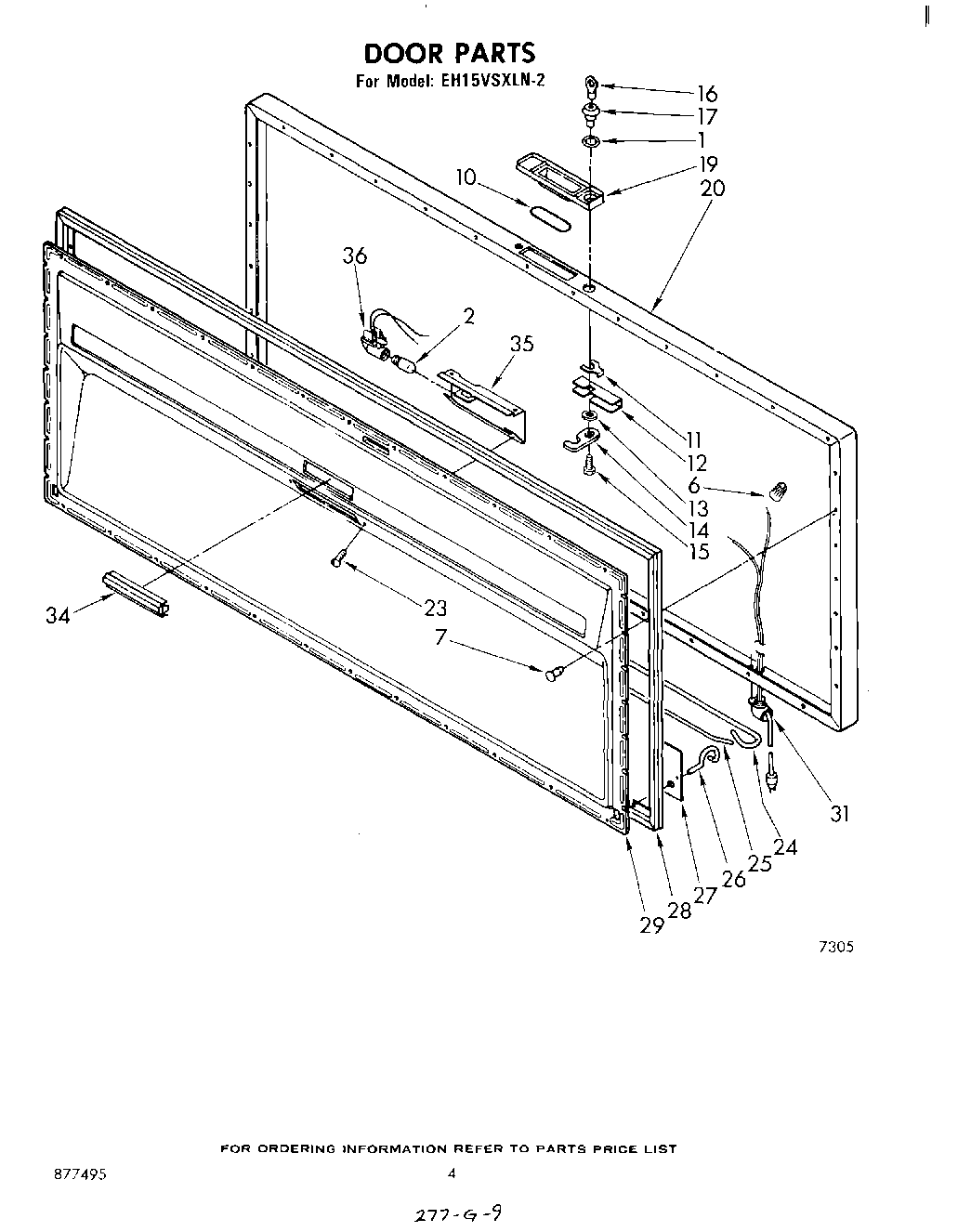

EH15VSXLN2 03 – SECTION

Products

Position	Product
1	“O“ Ring
2	W10873798 Whirlpool Refrigerator Light Bulb
6	Conector, Wire
7	Clip (36)
10	Gasket, Handle
11	Clip, Lock
12	Shroud, Lock
13	Plate, Bolt
14	Hook, Lock
15	Screw
16	WP842177 Whirlpool Refrigerator Door Key
17	Lock
19	Handle
20	Panel, Door Exterior (Almond)
23	WP965173 Whirlpool Dishwasher Screw
24	Torsion Bar, L.H.
25	Torsion Bar, R.H.
26	Hinge, R.H.
26	Hinge, L.H.
27	Cover, Hinge Rod (2)
28	Gasket
29	Panel, Door Interior
31	Harness, Exterior Door
34	Lens, Light
35	Deflector, Light
36	Lampholder
