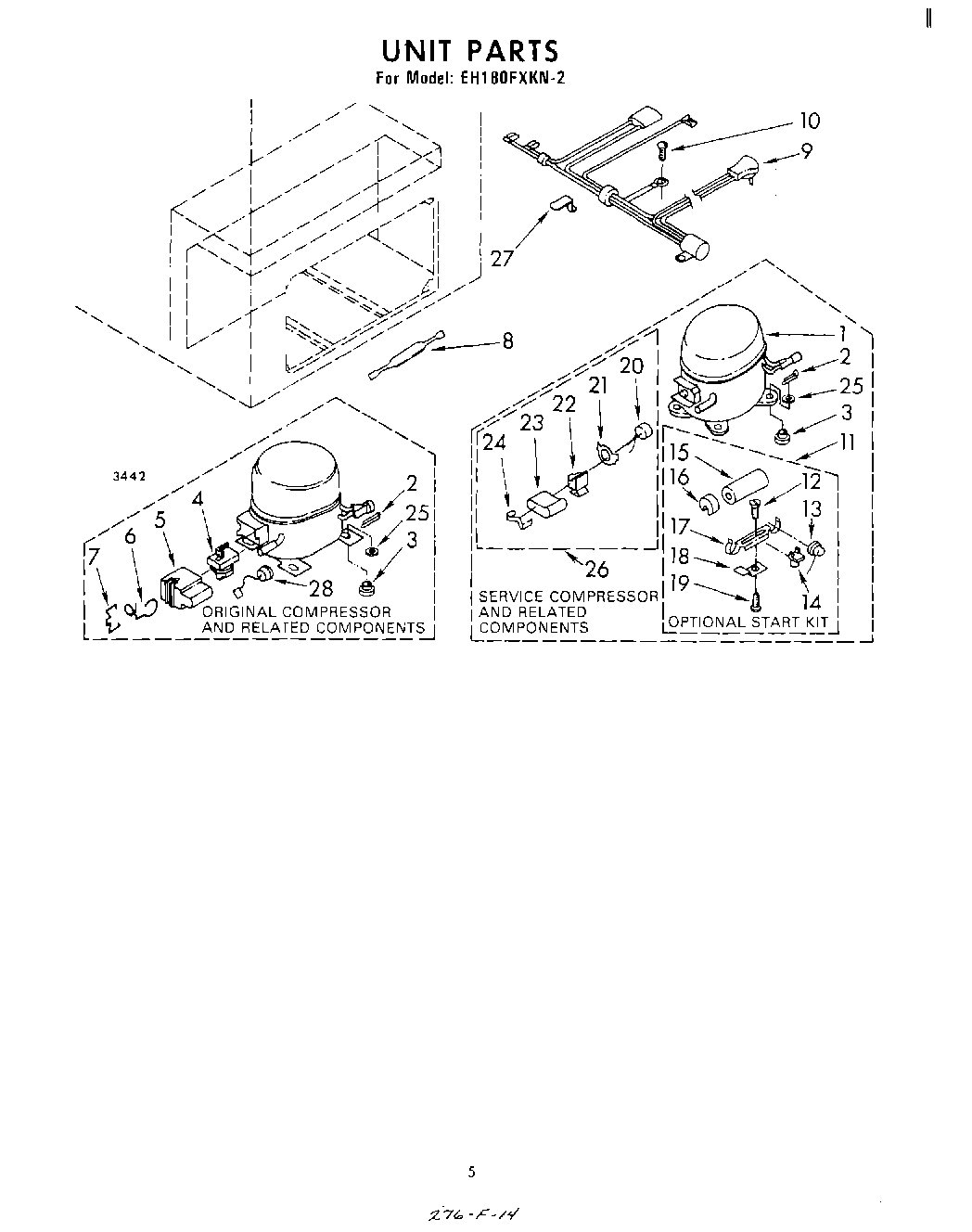

| 1 | W10439652 Whirlpool Refrigerator Compressor |
| 2 | Clip, Compressor Mounting (4) |
| 3 | 876811 Whirlpool Grommet |
| 4 | Relay, Starting (Used W/Original Compressor) |
| 5 | Cover, Relay & Overload Assembly (Used W/Original Compressor) |
| 6 | Clamp (Used W/Original Compressor) |
| 7 | Clip (Used W/Original Compressor) |
| 8 | W10843121 Whirlpool Refrigerator Tube |
| 9 | Harness, Wiring |
| 10 | Screw |
| 11 | Start Kit (Used W/Service Compressor 588602) |
| 12 | Screw (2) (Used On Start Kit 482278) |
| 13 | Overload (Used on Start Kit 482477) |
| 14 | Relay (Used on Start Kit 482477) |
| 15 | WP482156 Whirlpool Refrigerator Capacitor |
| 16 | Cap, Capacitor (Used On Start Kit 482278) |
| 17 | Support, Bracket (Used On Start Kit 482278) |
| 18 | Bracket, Mounting (Used On Start Kit 482278) |
| 19 | Screw (Used On Start Kit 482278) |
| 20 | Overload (Used on Service Compressor 588602) |
| 21 | Spring |
| 22 | Relay (Used on Service Compressor 588602) |
| 23 | Case, Relay |
| 24 | Cover Strap |
| 25 | Washer |
| 26 | WPL 876112 |
| 27 | Clip, Cord Plug |
| 28 | WPL 753505 |
