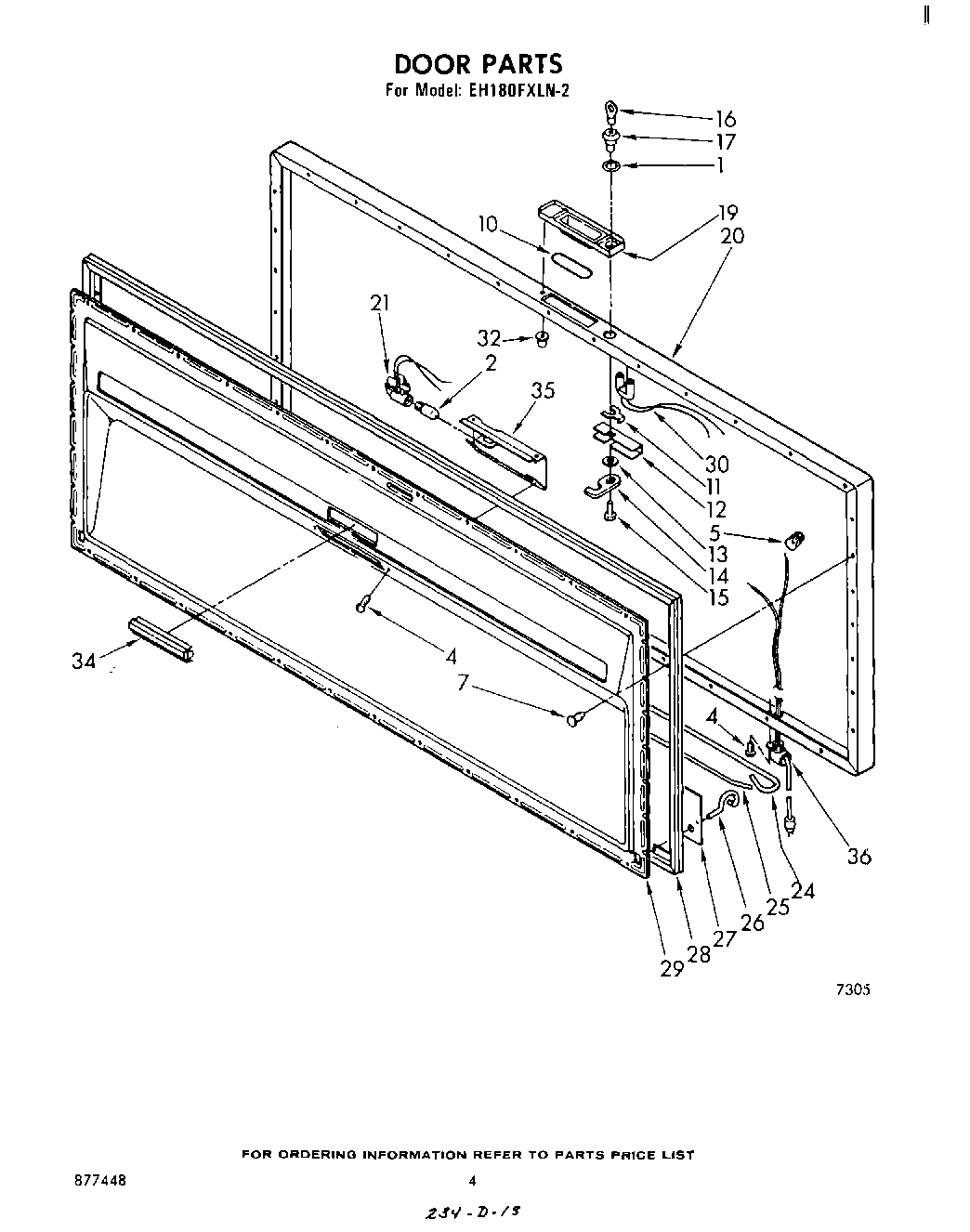

EH180FXLN2 03 – SECTION

Products

Position	Product
1	“O“ Ring
2	W10873798 Whirlpool Refrigerator Light Bulb
4	WP965173 Whirlpool Dishwasher Screw
5	Conector, Wire
7	Clip (36)
10	Gasket, Handle
11	Clip, Lock
12	Shroud, Lock
13	Plate, Bolt
14	Hook, Lock
15	Screw
16	WP842177 Whirlpool Refrigerator Door Key
17	Lock
19	Handle
20	Panel, Door Exterior
21	Lampholder
24	Bar, L.H. Torsion
25	Bar, R.H. Torsion
26	Hinge, R.H.
26	Hinge, L.H.
27	Cover, Hinge Rod (2)
28	Gasket
29	Panel, Door Interior
30	Plug, Indicator Light
32	Clip, Tubular (2)
34	Lens, Light
35	Deflector, Light
36	Harness, Exterior Door
