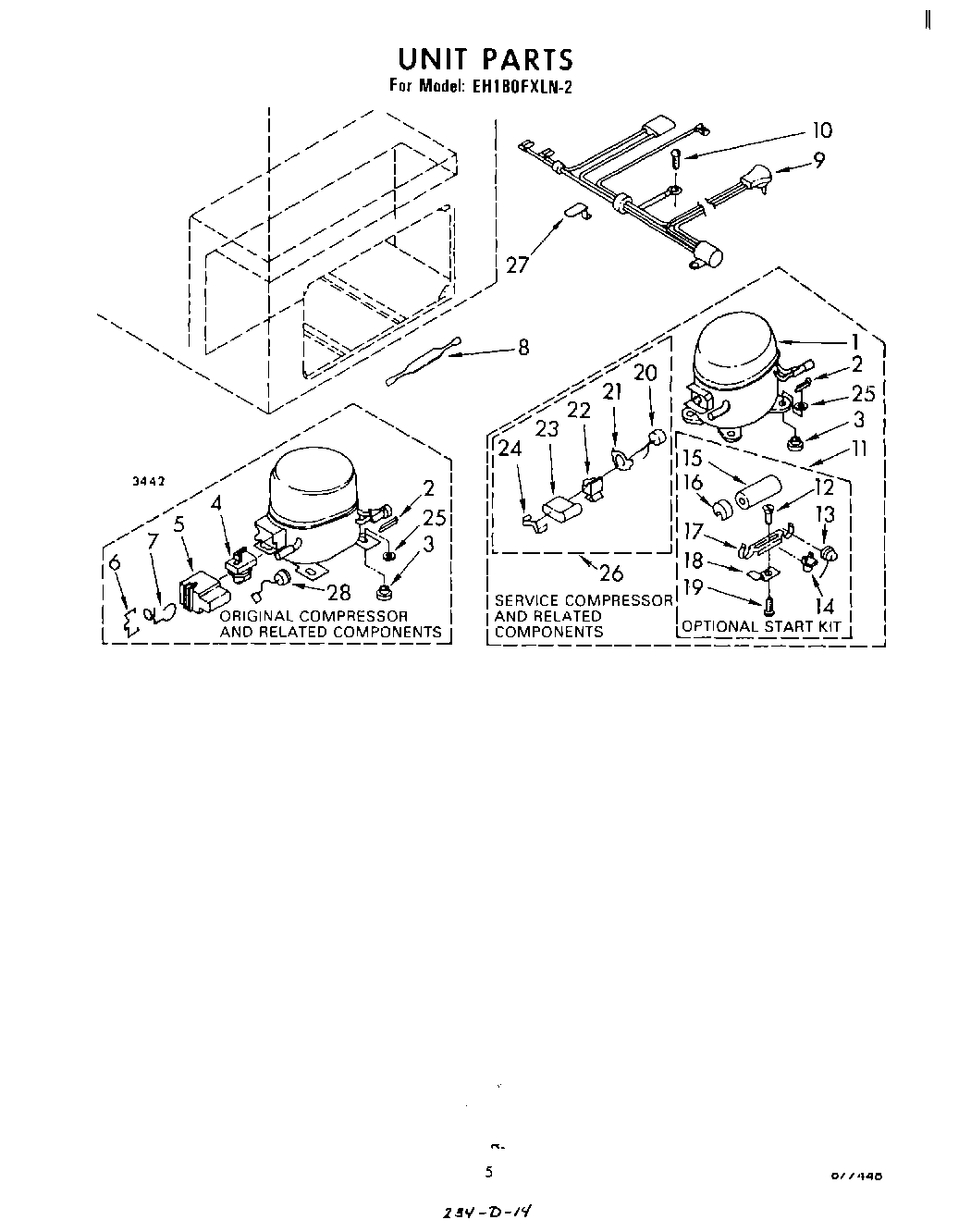

EH180FXLN2 04 – SECTION

Products

Position	Product
1	W10439652 Whirlpool Refrigerator Compressor
2	Clip, Compressor Mounting (4)
3	876811 Whirlpool Grommet
4	Relay, Starting (Used W/Original Compressor)
5	Cover, Relay & Overload Assembly (Used W/Original Compressor)
6	Clamp (Used W/Original Compressor)
7	Clip (Used W/Original Compressor)
8	W10843121 Whirlpool Refrigerator Tube
9	Harness, Wiring
10	Screw
11	Start Kit (Used W/Service Compressor 588602)
12	Screw (2) (Used On Start Kit 482278)
13	Overload (Used on Start Kit 482477)
14	Relay (Used on Start Kit 482477)
15	WP482156 Whirlpool Refrigerator Capacitor
16	Cap, Capacitor (Used On Start Kit 482278)
17	Support, Bracket (Used On Start Kit 482278)
18	Bracket, Mounting (Used On Start Kit 482278)
19	Screw (Used On Start Kit 482278)
20	Overload (Used on Service Compressor 588602)
21	Spring
22	Relay (Used on Service Compressor 588602)
23	Case, Relay
24	Cover Strap
25	Washer
26	WPL 876112
27	Clip, Cord Plug
28	WPL 753505
