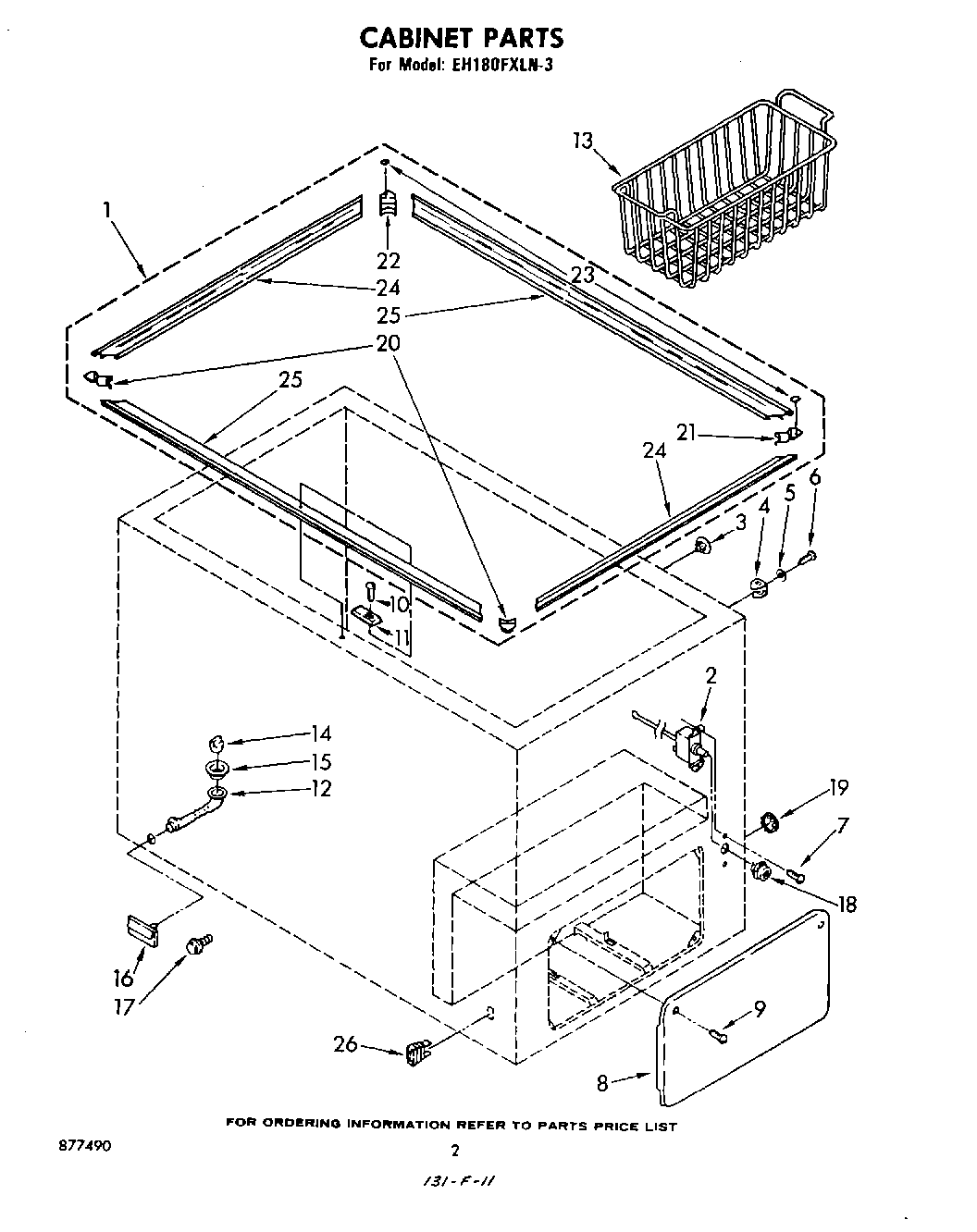

EH180FXLN3 02 – SECTION

Products

Position	Product
1	Collar Kit (Items 20, 21, 22, 23, 24 & 25 Are Included In Collar Kit)
2	Control, Cold
3	Plug Button
4	Rod Holder Assembly
5	WP120393 Whirlpool Washer Assembly
6	Screw
7	Screw
8	Door
9	Screw
10	Screw
11	Box, Strike
12	Tube, Drain
13	Basket (2)
14	Plug, Drain
15	Ferrule, Drain
16	Cover, Drain
17	Adapter, Hose
18	Knob, Control
19	Plug, Button
20	Corner, Front (2)
21	Corner (Right Rear)
22	Corner (Left Rear)
23	Grommet (2)
24	Collar, End (2)
25	Collar (2) (Front & Rear)
26	72017 Whirlpool Appliance Touch-Up Paint White
26	Energy Guide
26	Almond (Uncut)
26	WP72107 Whirlpool Touchup
26	350930 Whirlpool White Spray Paint
26	799344 Whirlpool Refrigerator Paint
26	350956 Whirlpool Spray Assembly
26	VALVE, ACCESS (5/8“)
26	Tech Sheet
26	978030 Whirlpool Refrigerator Valve
26	Guide, Use & Care
26	WP978025 Whirlpool Refrigerator Valve
26	VALVE, ACCESS (1/2“)
26	Enamel, Black (1 Qt. Uncut)
26	978027 Whirlpool Refrigerator Primary Valve
26	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
26	285006 Whirlpool Spray
26	WP505587 Whirlpool Refrigerator Sealer
26	Leveler (Thinner) (2oz.)
26	WPL 799351
26	Light, Indicator
26	978026 Whirlpool Refrigerator Primary Valve
26	Book, How To Freeze
26	WP503695 Whirlpool Refrigerator Sealer
26	876370 Whirlpool Refrigerator Insulation
26	212643 Whirlpool Refrigerator Permagum Sealer
26	72032 Whirlpool Touch Up Paint Black
26	List
