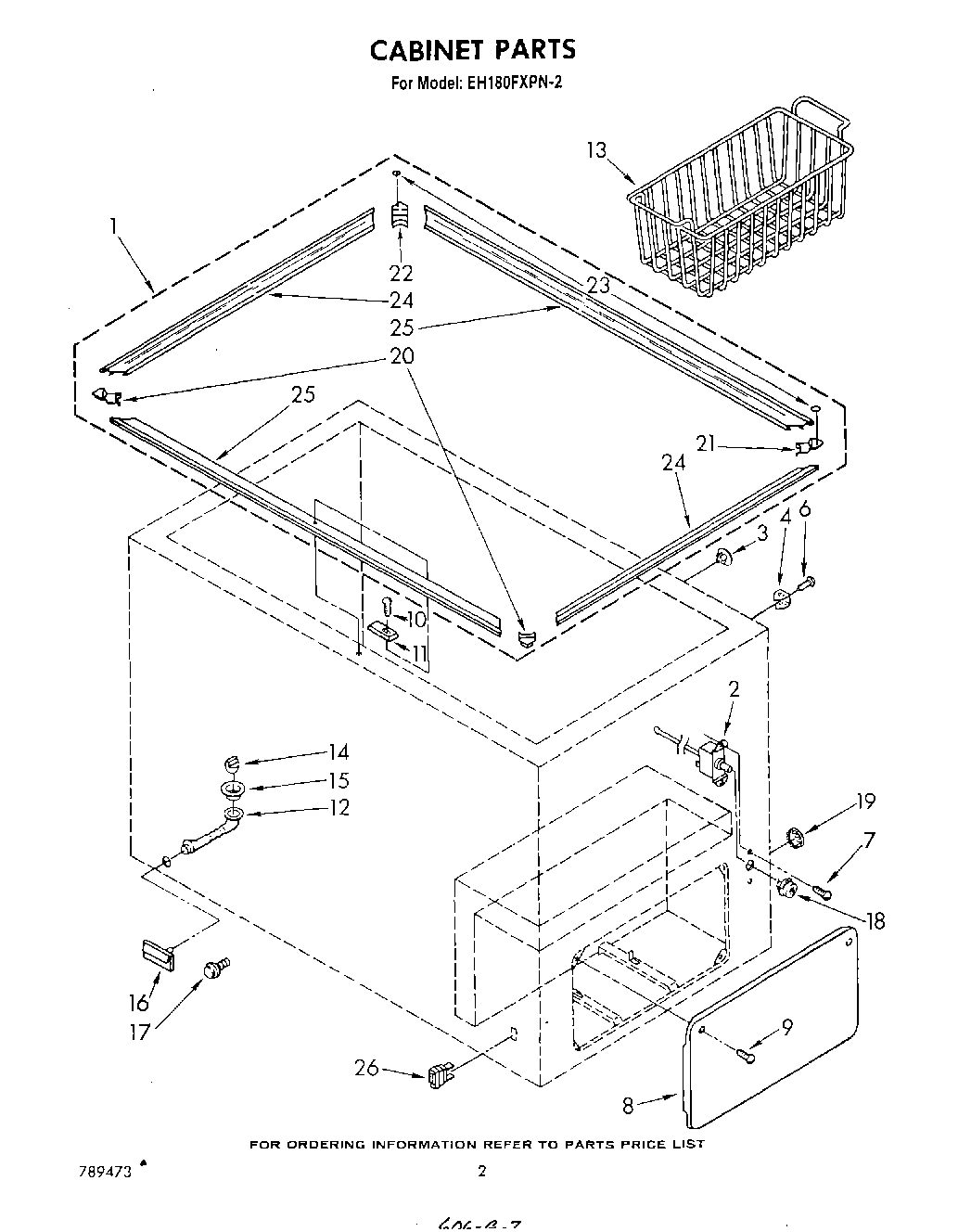

EH180FXPN2 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Tech
	WPL LIT730051
	WPL LIT789473
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	Leveler (Thinner) (2oz.)
	WPL LIT656493
	WPL LIT730096
	350956 Whirlpool Spray Assembly
1	Collar Kit (Items 20, 21, 22, 23, 24 & 25 Are Included In Collar Kit)
2	Control, Cold
3	Plug Button
4	Rod Holder Assembly
6	Bolt, Machine
7	Screw
8	Door
9	Screw
10	Screw
11	Box, Strike
12	Tube, Drain
13	Basket (2)
14	Plug, Drain
15	Ferrule, Drain
16	Cover, Drain
17	Adapter, Hose
18	Knob, Control
19	Plug, Button
20	Corner, Front (2)
21	Corner (Right Rear)
22	Corner (Left Rear)
23	Grommet (2)
24	Collar, End (2)
25	Collar (2) (Front & Rear)
26	WP72107 Whirlpool Touchup
26	VALVE, ACCESS (5/8“)
26	212643 Whirlpool Refrigerator Permagum Sealer
26	799344 Whirlpool Refrigerator Paint
26	72017 Whirlpool Appliance Touch-Up Paint White
26	Almond (Uncut)
26	876370 Whirlpool Refrigerator Insulation
26	WP503695 Whirlpool Refrigerator Sealer
26	72032 Whirlpool Touch Up Paint Black
26	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
26	Enamel, Black (1 Qt. Uncut)
26	VALVE, ACCESS (1/2“)
26	WP978025 Whirlpool Refrigerator Valve
26	978030 Whirlpool Refrigerator Valve
26	978027 Whirlpool Refrigerator Primary Valve
26	WP505587 Whirlpool Refrigerator Sealer
26	978026 Whirlpool Refrigerator Primary Valve
26	876764 Whirlpool Refrigerator Primary Valve
26	Light, Indicator
