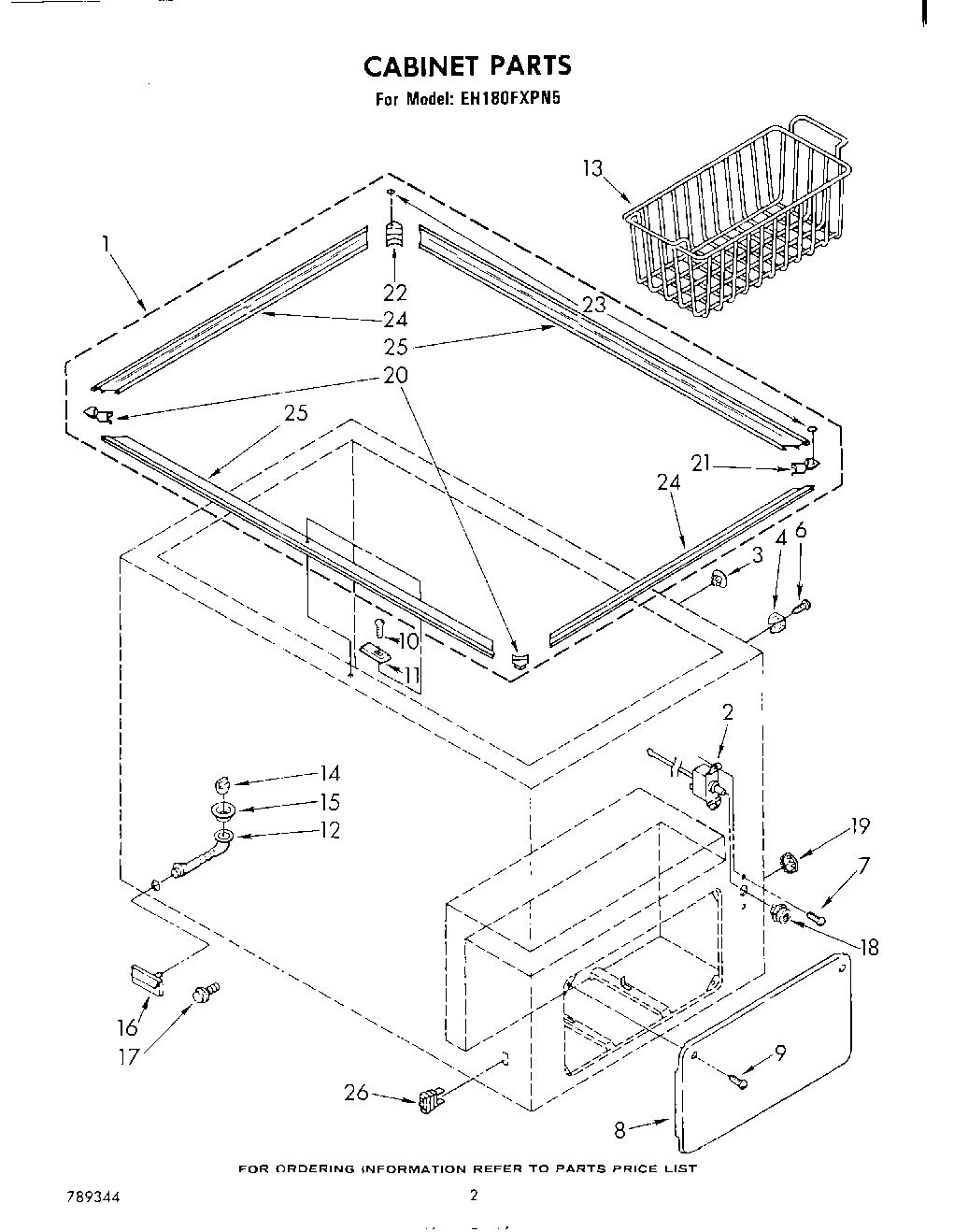

EH180FXPN5 02 – SECTION

Products

Position	Product
1	Collar Kit (Items 20, 21, 22, 23, 24 & 25 Are Included In Collar Kit)
2	Control, Cold
3	Plug Button
4	Rod Holder Assembly
6	Screw
7	Screw
8	Door
9	Screw
10	Screw
11	Box, Strike
12	Tube, Drain
13	Basket (2)
14	Plug, Drain
15	Ferrule, Drain
16	Cover, Drain
17	Adapter, Hose
18	Knob, Control
19	Plug, Button
20	Corner, Front (2)
21	Corner (Right Rear)
22	Corner (Left Rear)
23	Grommet (2)
24	Collar, End (2)
25	Collar (2) (Front & Rear)
26	Light, Indicator
26	WP503695 Whirlpool Refrigerator Sealer
26	876370 Whirlpool Refrigerator Insulation
26	212643 Whirlpool Refrigerator Permagum Sealer
26	Almond (Uncut)
26	WP72107 Whirlpool Touchup
26	799344 Whirlpool Refrigerator Paint
26	VALVE, ACCESS (5/8“)
26	72017 Whirlpool Appliance Touch-Up Paint White
26	350956 Whirlpool Spray Assembly
26	350930 Whirlpool White Spray Paint
26	WPL LIT730096
26	WPL LIT730051
26	Tech
26	WPL LIT656493
26	Leveler (Thinner) (2oz.)
26	285006 Whirlpool Spray
26	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
26	Enamel, Black (1 Qt. Uncut)
26	VALVE, ACCESS (1/2“)
26	WP978025 Whirlpool Refrigerator Valve
26	72032 Whirlpool Touch Up Paint Black
26	978030 Whirlpool Refrigerator Valve
26	978027 Whirlpool Refrigerator Primary Valve
26	WP505587 Whirlpool Refrigerator Sealer
26	978026 Whirlpool Refrigerator Primary Valve
26	WPL LIT789344
