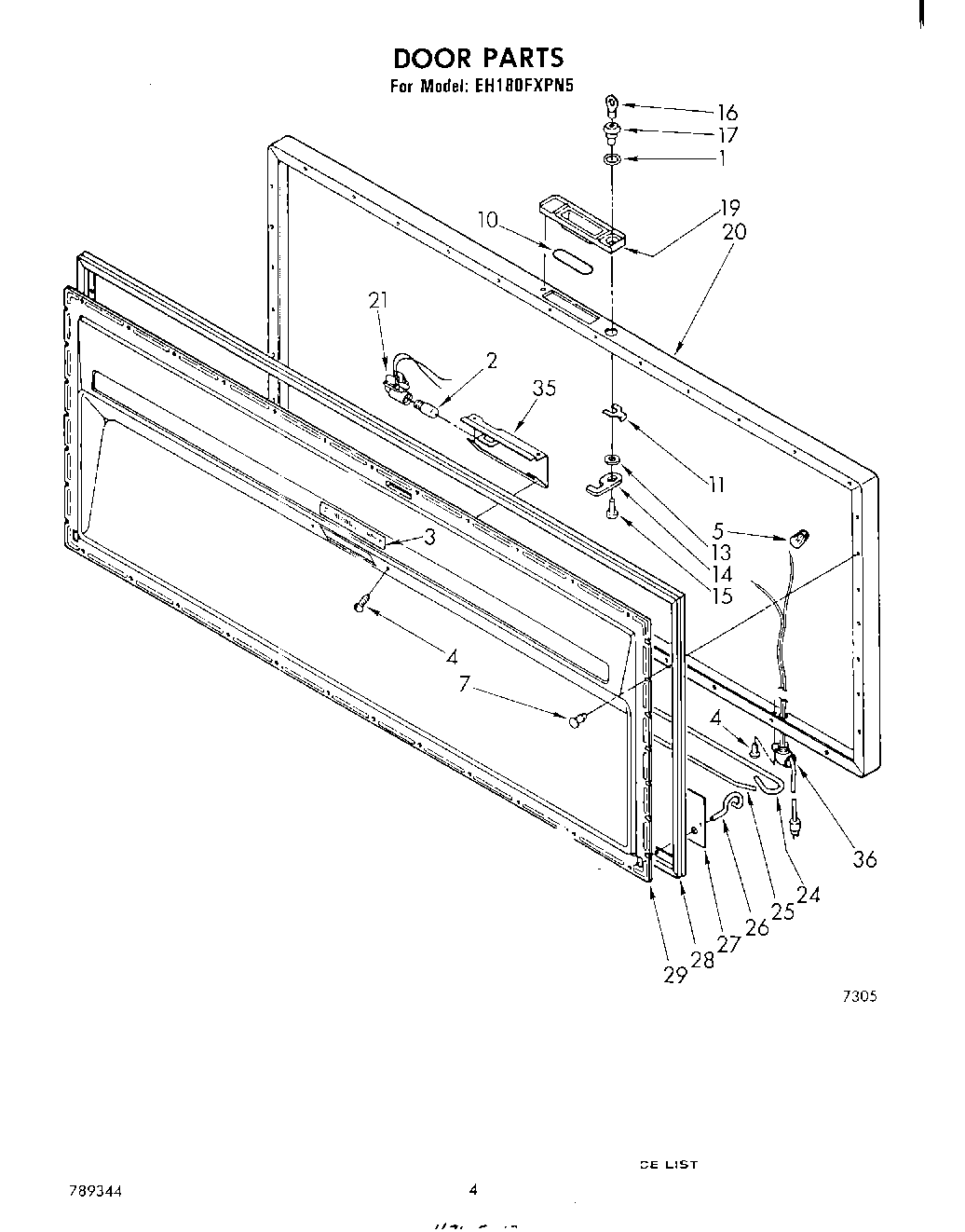

EH180FXPN5 03 – SECTION

Products

PositionProduct
1“O“ Ring
2W10873798 Whirlpool Refrigerator Light Bulb
3Decal, Door Panel
4WP965173 Whirlpool Dishwasher Screw
5Conector, Wire
7Clip (36)
10Gasket, Handle
11Clip, Spring
13Plate, Bolt
14Hook, Lock
15Screw
16WP842177 Whirlpool Refrigerator Door Key
17Lock
19Handle
20Panel, Door Exterior
21Lampholder
24Bar, L.H. Torsion
25Bar, R.H. Torsion
26Hinge, R.H.
26Hinge, L.H.
27Cover, Hinge Rod (2)
28Gasket
29Panel, Door Interior
35Deflector, Light
36Harness, Exterior Door
