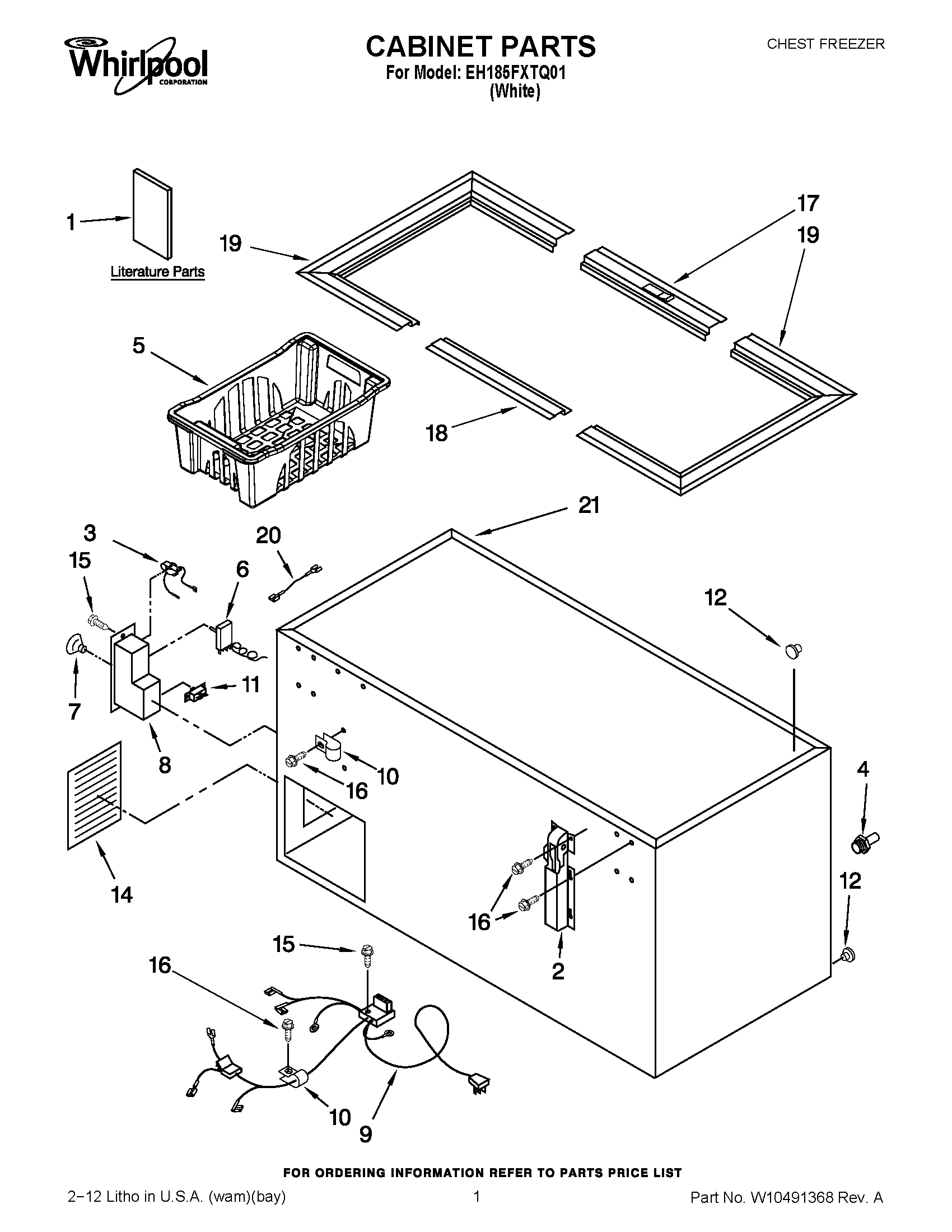

EH185FXTQ01 01 – CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE
1	OWNERS MANUAL
2	HINGE, ASSEMBLY
3	BUZZER, DOOR ALARM
4	ADAPTER, DRAIN
5	BASKET
6	THERMOSTAT
7	KNOB, THERMOSTAT
8	CONTROL BOX
9	HARNESS, WIRING
10	488946 Whirlpool Air Conditioner Clamp
11	SWITCH, ALARM
12	DRAIN, PLUG
14	ACCESS PANEL
15	SCREW
16	SCREW
17	FRONT, BREAKER STRIP
18	REAR, BREAKER STRIP
19	END, BREAKER STRIP (2)
20	WIRE, LEAD
21	CABINET (NOT A SERVICEABLE PART)
