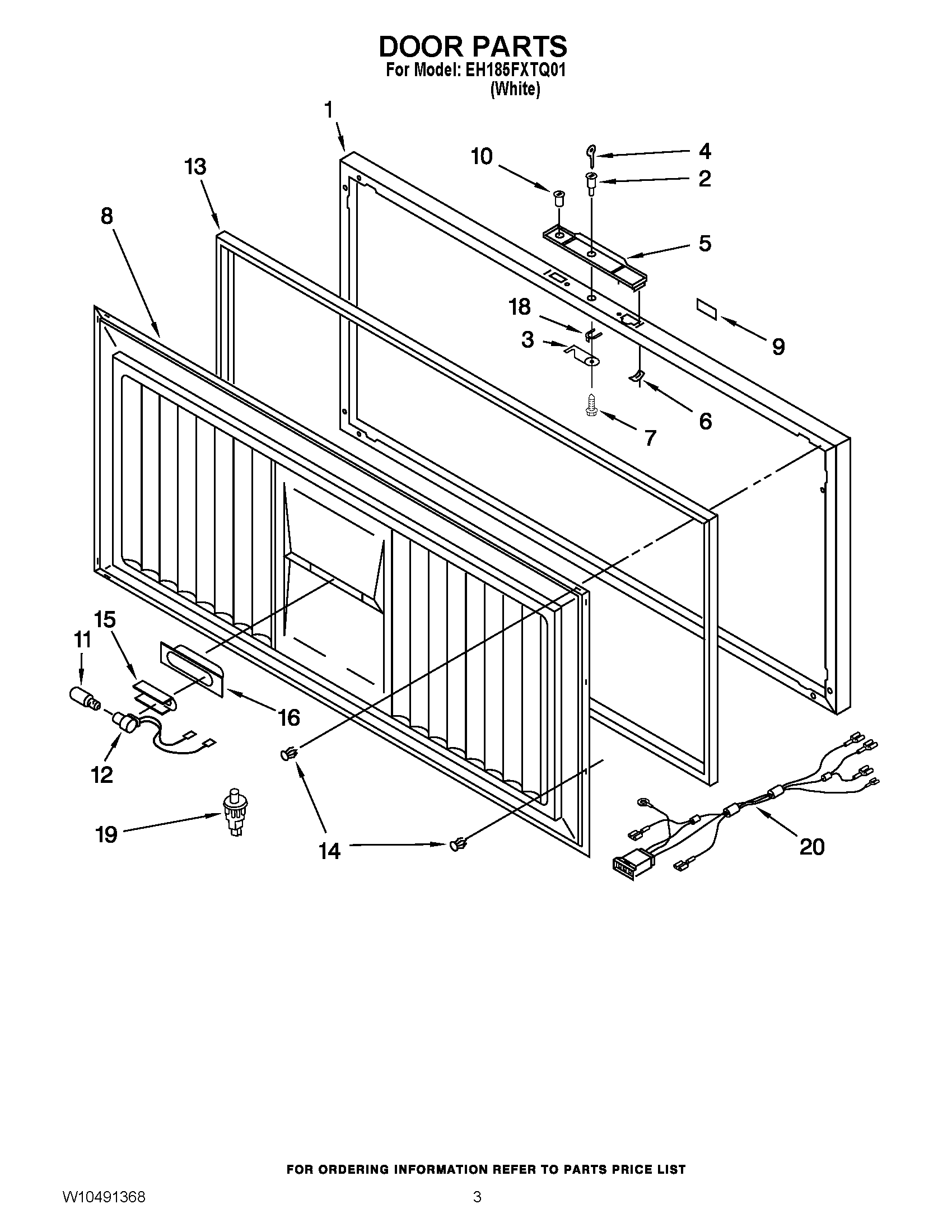

EH185FXTQ01 02 – DOOR PARTS

Written by

Products

Position	Product
1	EXTERIOR DOOR PANEL (INCLUDES INSULATION)
2	LOCK KIT
3	HOOK BOLT, LOCK
4	KEY
5	HANDLE
6	CLIP, OBLONG
7	SCREW
8	INTERIOR DOOR PANEL
9	WP2213265 Whirlpool Refrigerator Nameplate
10	LIGHT, INDICATOR
11	BULB, LIGHT
12	SOCKET, LIGHT
13	GASKET
14	GASKET, CLIP
15	SHIELD, HEAT
16	REFLECTOR, LIGHT
18	CLIP, SPRING
19	SWITCH, LIGHT
20	HARNESS, WIRING (LID)
