EH18VSXLN2 03 – SECTION

EH18VSXLN2 03 – SECTION

Written by

in

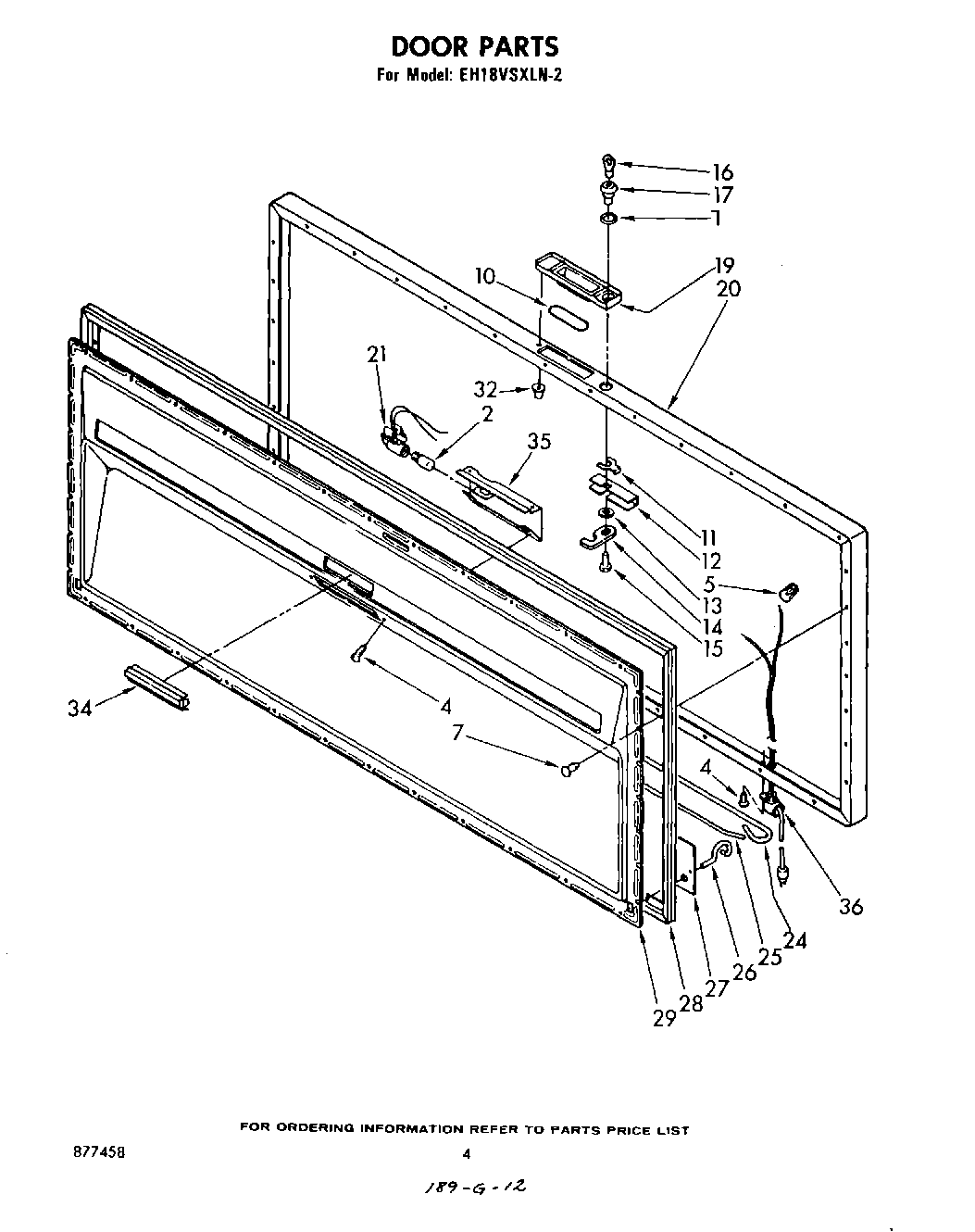

EH18VSXLN2 03 – SECTION

Products

PositionProduct
1“O“ Ring
2W10873798 Whirlpool Refrigerator Light Bulb
4WP965173 Whirlpool Dishwasher Screw
5Conector, Wire
7Clip (36)
10Gasket, Handle
11Clip, Lock
12Shroud, Lock
13Plate, Bolt
14Hook, Lock
15Screw
16WP842177 Whirlpool Refrigerator Door Key
17Lock
19Handle
20Panel, Door Exterior
21Lampholder
24Bar, L.H. Torsion
25Bar, R.H. Torsion
26Hinge, R.H.
26Hinge, L.H.
27Cover, Hinge Rod (2)
28Gasket
29Panel, Door Interior
32Clip, Tubular (2)
34Lens, Light
35Deflector, Light
36Harness, Exterior Door
