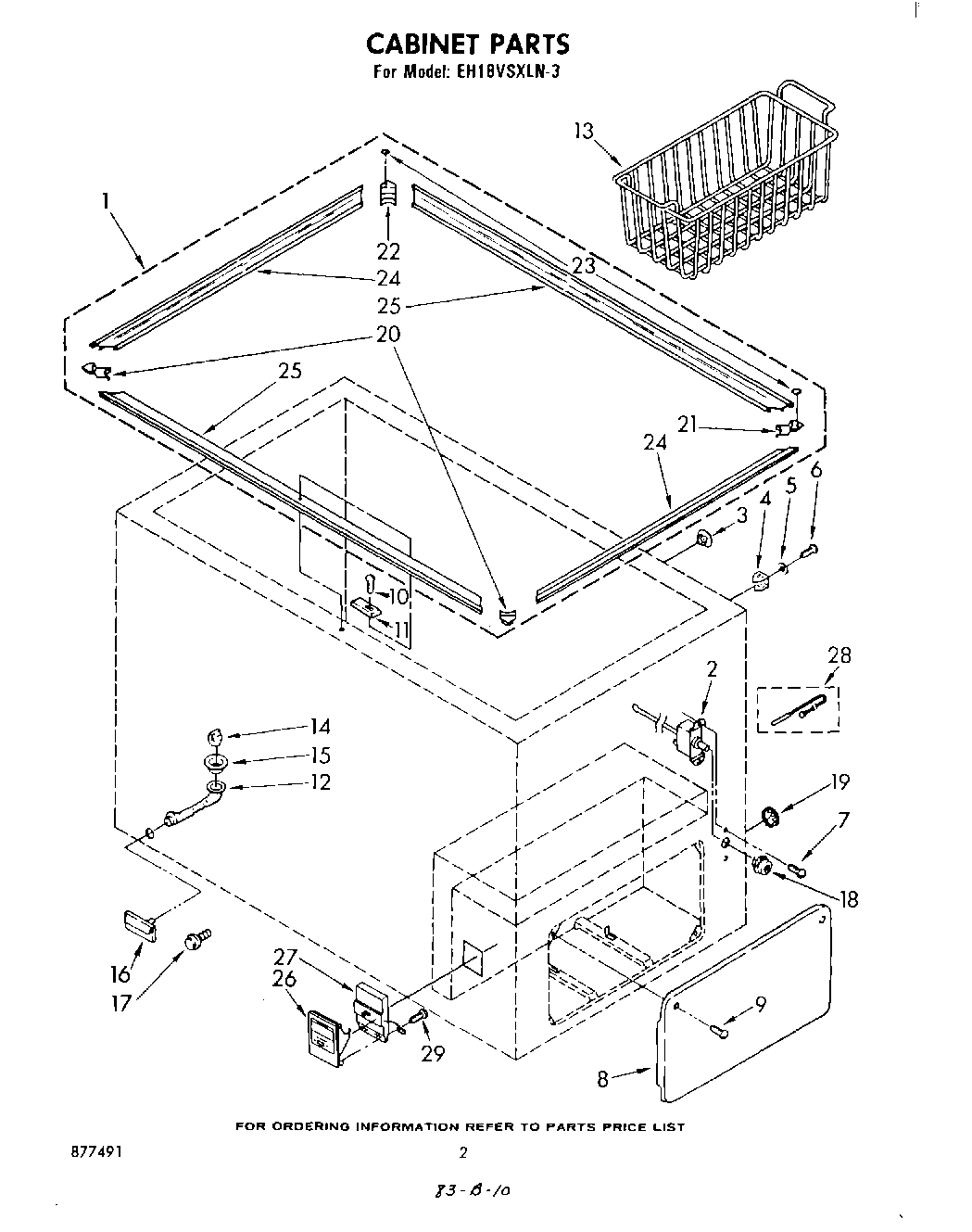

EH18VSXLN3 02 – SECTION

Written by

Products

Position	Product
1	Collar Kit (Items 20, 21, 22, 23, 24 & 25 Are Included In Collar Kit)
2	Control, Cold
3	Plug Button
4	Rod Holder Assembly
5	WP120393 Whirlpool Washer Assembly
6	Screw
7	Screw
8	Door
9	Screw
10	Screw
11	Box, Strike
12	Tube, Drain
13	Basket (2)
14	Plug, Drain
15	Ferrule, Drain
16	Cover, Drain
17	Adapter, Hose
18	Knob, Control
19	Plug, Button
20	Corner, Front (2)
21	Corner (Right Rear)
22	Corner (Left Rear)
23	Grommet (2)
24	Collar, End (2)
25	Collar (2) (Front & Rear)
26	Temperature Housing Assembly
27	Temperature Alarm Assembly
28	Sensor Kit (Alarm)
29	Energy Guide
29	Guide, Use & Care
29	Tech Sheet
29	72032 Whirlpool Touch Up Paint Black
29	WPL 877491
29	212643 Whirlpool Refrigerator Permagum Sealer
29	978026 Whirlpool Refrigerator Primary Valve
29	WP503695 Whirlpool Refrigerator Sealer
29	876370 Whirlpool Refrigerator Insulation
29	VALVE, ACCESS (5/8“)
29	Almond (Uncut)
29	WP72107 Whirlpool Touchup
29	799344 Whirlpool Refrigerator Paint
29	72017 Whirlpool Appliance Touch-Up Paint White
29	350956 Whirlpool Spray Assembly
29	WP505587 Whirlpool Refrigerator Sealer
29	978027 Whirlpool Refrigerator Primary Valve
29	978030 Whirlpool Refrigerator Valve
29	Book, How To Freeze
29	WPL 799351
29	Leveler (Thinner) (2oz.)
29	285006 Whirlpool Spray
29	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
29	WP488787 Whirlpool Refrigerator Screw
29	Enamel, Black (1 Qt. Uncut)
29	VALVE, ACCESS (1/2“)
29	WP978025 Whirlpool Refrigerator Valve
29	350930 Whirlpool White Spray Paint
