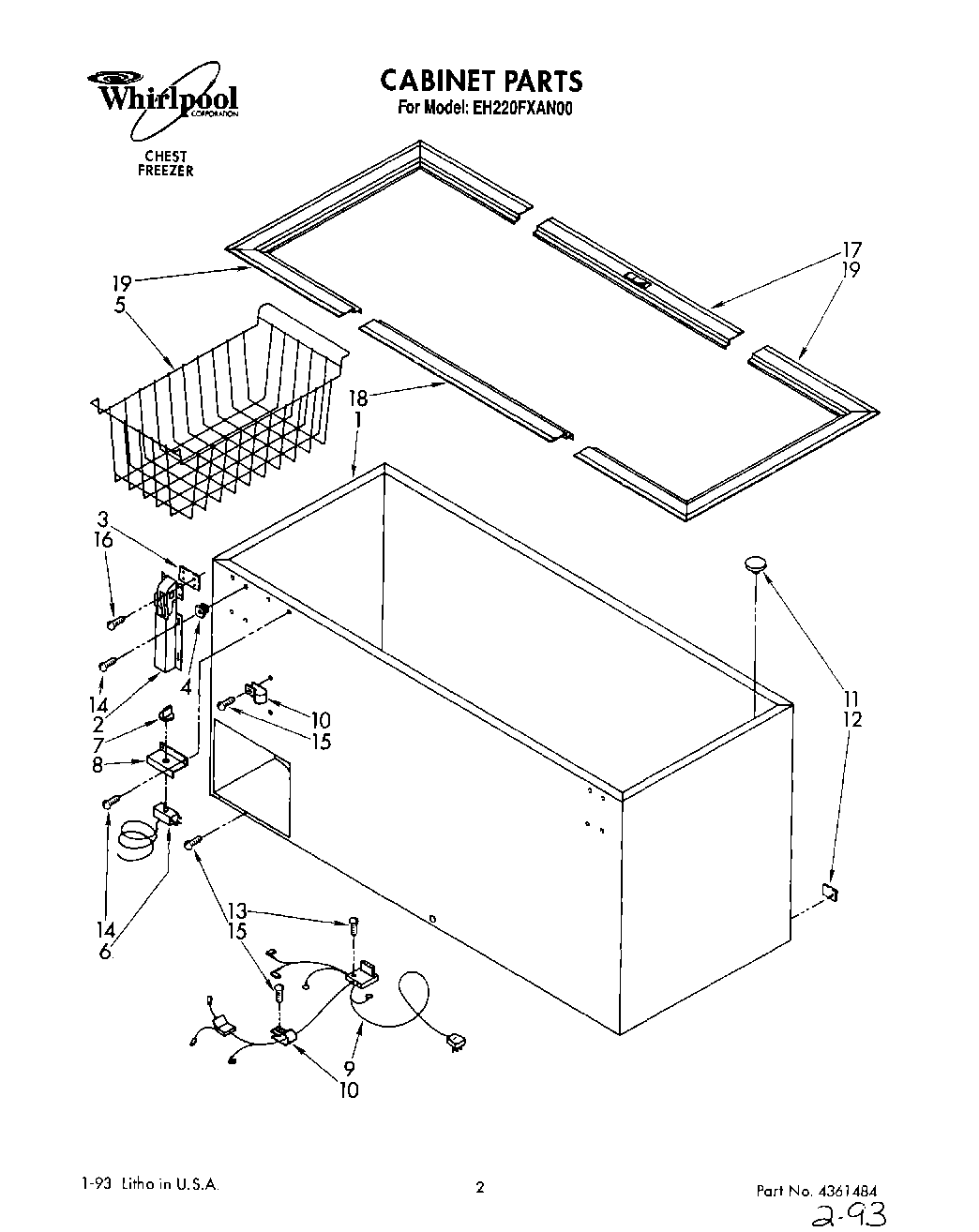

EH220FXAN00 01 – SECTION

EH220FXAN00 01 – SECTION

Written by

in

EH220FXAN00 01 – SECTION

Products

PositionProduct
Parts List
1Cabinet (Not A Serviceable Part)
2Hinge, Assembly
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
5Wire Basket
6Thermostat
7Thermostat, Knob
8Thermostat, Control Bracket
9Wiring, Harness External
10488946 Whirlpool Air Conditioner Clamp
11Drain, Cap
12Drain, Plug
13Screw
14WP308685 Whirlpool Microwave Screw
15WP488787 Whirlpool Refrigerator Screw
16Screw
17Front, Breaker Strip
18Rear, Breaker Strip
19End, Breaker Strip (2)
19Almond (Uncut)
19WP72107 Whirlpool Touchup
19350956 Whirlpool Spray Assembly
