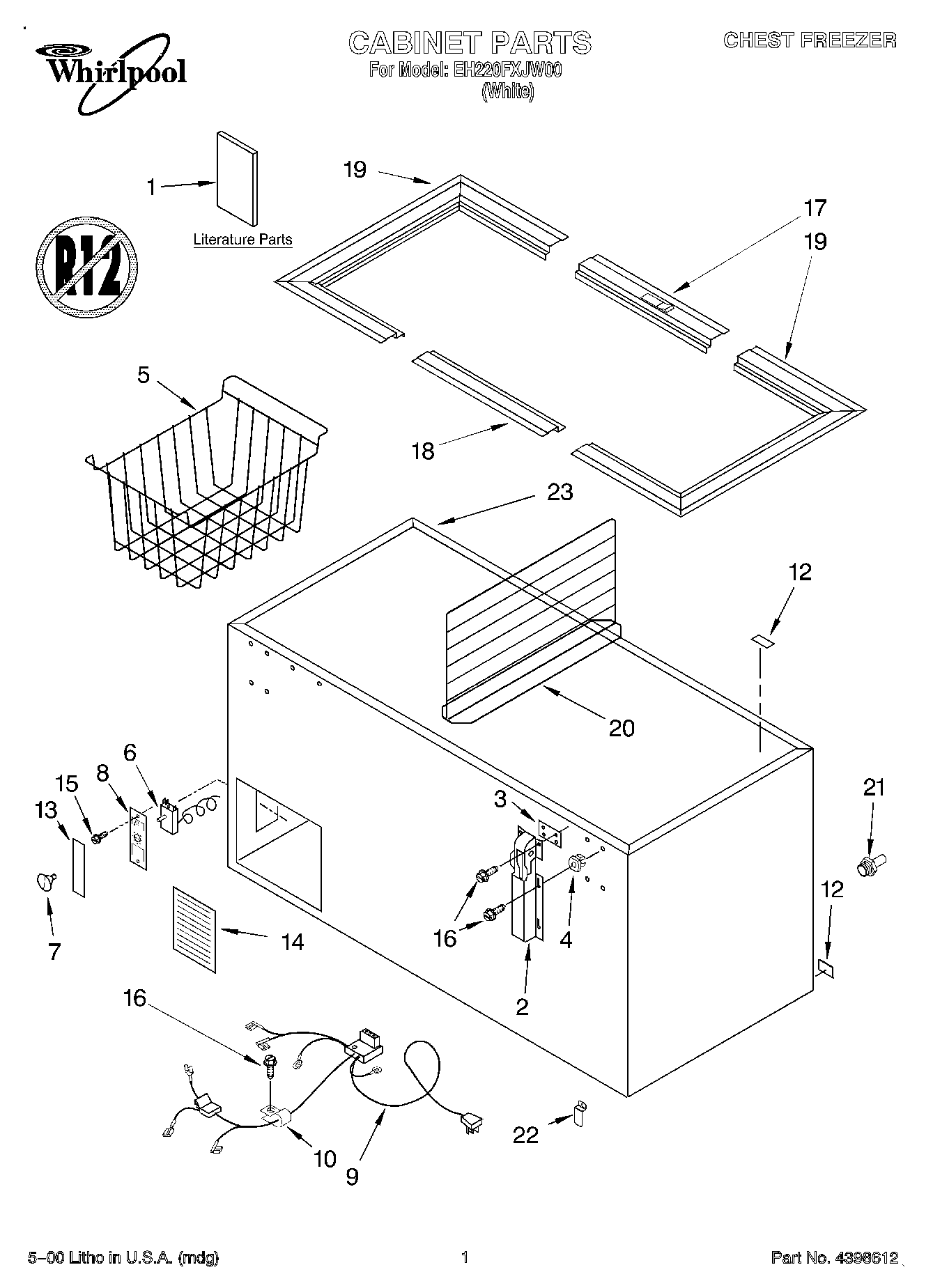

EH220FXJW00 01 – SECTION

EH220FXJW00 01 – SECTION

Written by

in

EH220FXJW00 01 – SECTION

Products

PositionProduct
1Literature Parts (Owner`s Manual)
1Literature Parts (Energy Label)
2W11192185 Whirlpool Refrigerator Door Hinge
31-17548-006 Whirlpool Refrigerator Spacer
44356321 Whirlpool Refrigerator Grommet
5W11553315 Whirlpool Refrigerator Basket
5Wire Basket (Lower, Standard (2))
6WP4-35940-001 Whirlpool Refrigerator Thermostat
7Thermostat, Knob
8W10682894 Whirlpool Refrigerator Control Box
9Wiring, Harness External
10488946 Whirlpool Air Conditioner Clamp
12Drain, Cap
13Insert, Control
14Access Panel
153-24004-049 Whirlpool Screw
164356491 Whirlpool Refrigerator Screw
174356641 Whirlpool Refrigerator Trim Bracket
18W11045298 Whirlpool Refrigerator Trim Bracket
19W11045300 Whirlpool Refrigerator Trim Bracket
20Divider
21W11663505 Whirlpool Hose Adapter
22Clip
23Clip, Gasket (Kit Of 60)
23350956 Whirlpool Spray Assembly
23Almond (Uncut)
23WP72107 Whirlpool Touchup
23Cabinet (Not A Serviceable Part)
