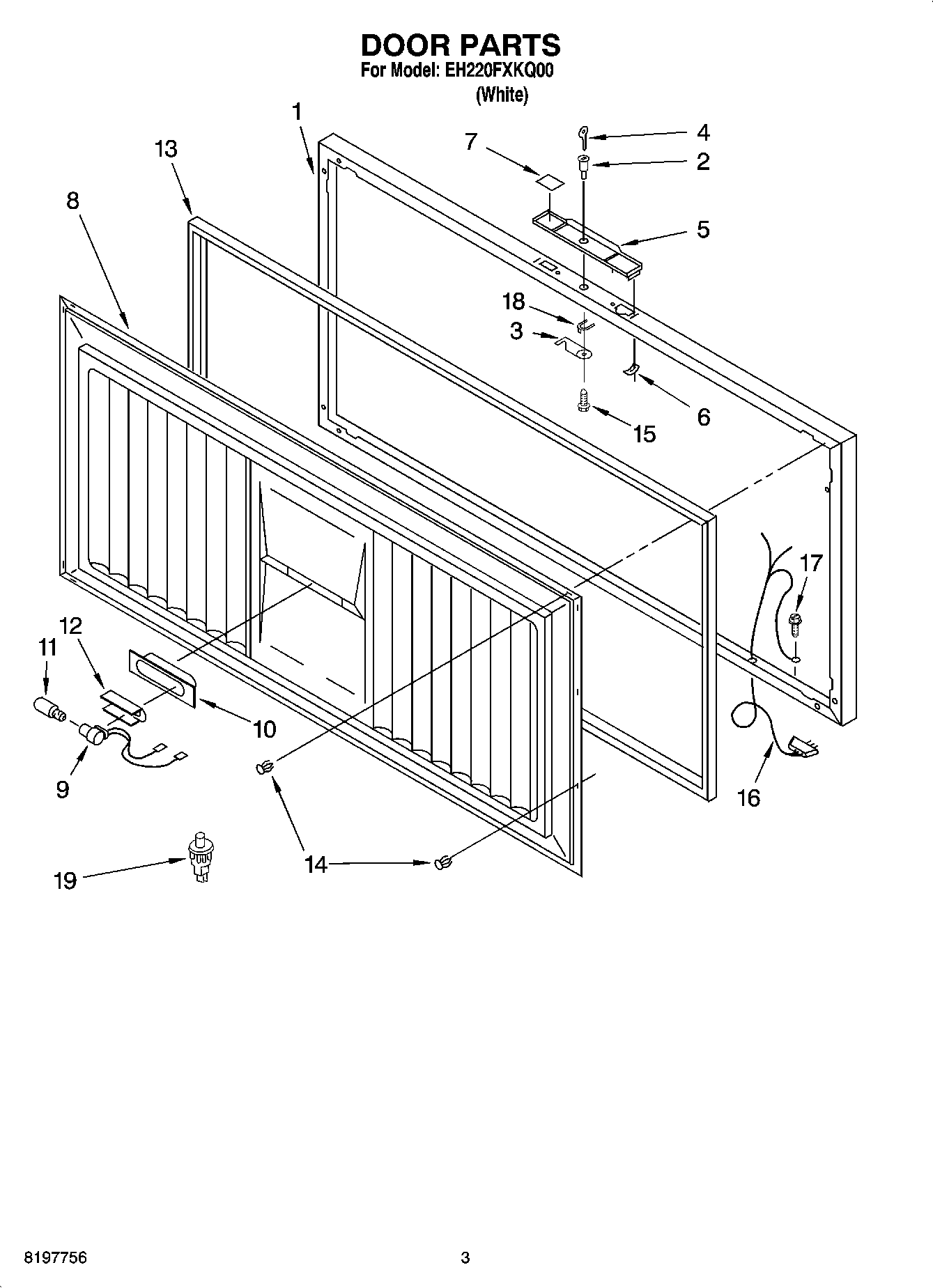

EH220FXKQ00 02 – DOOR PARTS

EH220FXKQ00 02 – DOOR PARTS

Written by

in

EH220FXKQ00 02 – DOOR PARTS

Products

PositionProduct
14390903 Whirlpool Refrigerator External Panel
23-35284-001 Whirlpool Refrigerator Door Lock
32-35195-002 Whirlpool Refrigerator Hook
4Key
5Handle
63-24059-024 Whirlpool Refrigerator Handle Clip
7Light, Indicator
8Interior Door Panel
9Lamp Socket
103-25693-001 Whirlpool Refrigerator Defrost Light
11W10873798 Whirlpool Refrigerator Light Bulb
12Shield, Heat
13Gasket
14Plastic, Mounting Clip
15SCREW
16W10620417 Whirlpool Refrigerator Harness
17WP488787 Whirlpool Refrigerator Screw
18Clip
19W10917237 Whirlpool Refrigerator Switch
