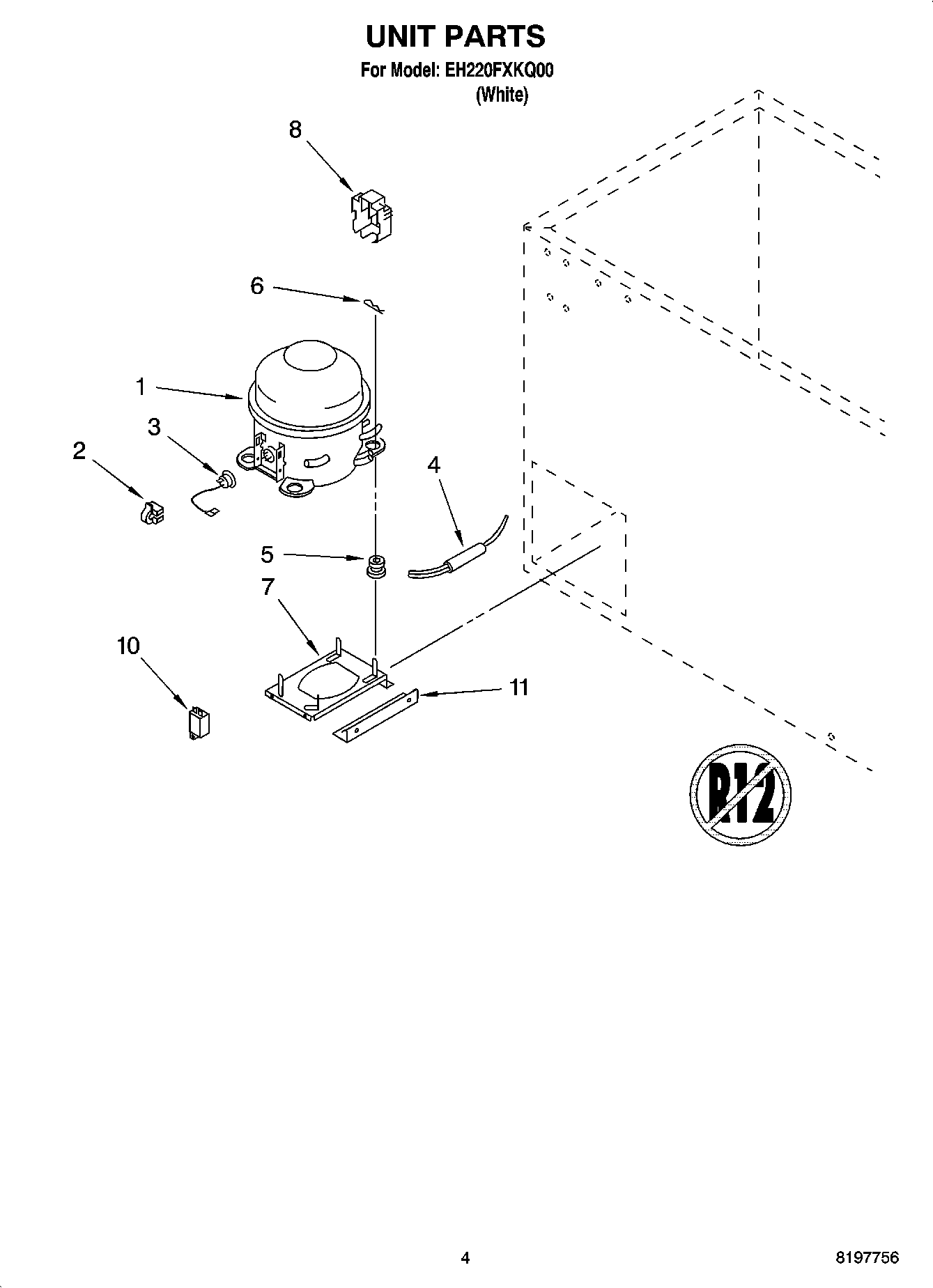

EH220FXKQ00 03 – UNIT PARTS

Written by

Products

Position	Product
1	W10309994 Whirlpool Refrigerator Compressor
2	Relay
3	2-34286-021 Whirlpool Refrigerator Overload Relay
4	W10843121 Whirlpool Refrigerator Tube
5	Grommet, Mounting Compressor
6	Clip, Hitch Pin
7	Base, Compressor
8	4356777 Whirlpool Term Cover
10	Capacitor
11	3-81556-001 Whirlpool Brace
11	REFRIGERANT CHARGE 4.8 oz. (R-134A)
