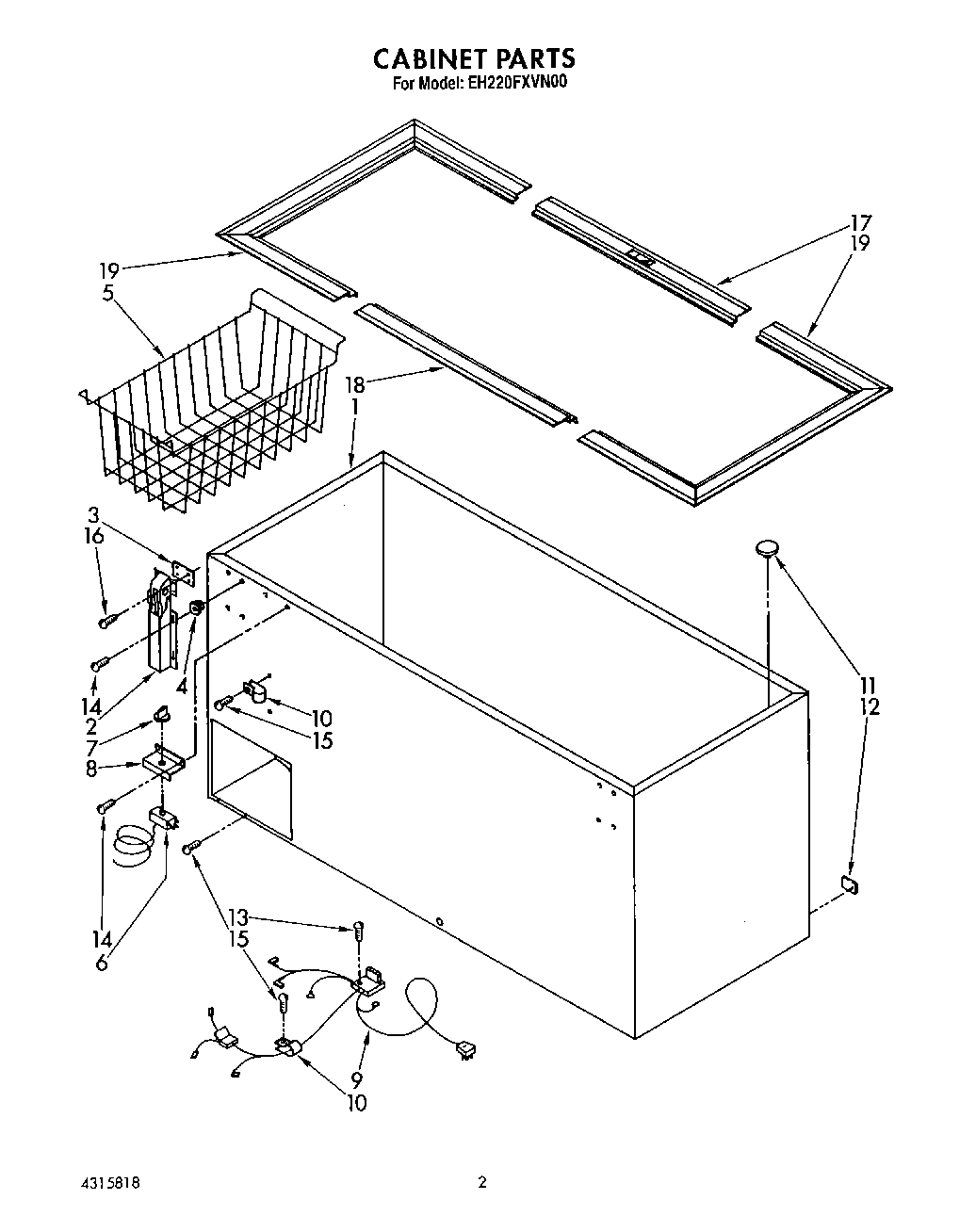

EH220FXVN00 02 – SECTION

Products

Position	Product
	Parts List
	Owner`s Manual
1	Cabinet (Not A Serviceable Part)
2	Hinge, Assembly
3	1-17548-006 Whirlpool Refrigerator Spacer
4	4356321 Whirlpool Refrigerator Grommet
5	Wire Basket
6	Thermostat
7	Thermostat, Knob
8	Thermostat, Control Bracket
9	Wiring, Harness External
10	488946 Whirlpool Air Conditioner Clamp
11	Drain, Cap
12	Drain, Plug
13	Screw
14	WP308685 Whirlpool Microwave Screw
15	WP488787 Whirlpool Refrigerator Screw
16	Screw
17	Front, Breaker Strip
18	Rear, Breaker Strip
19	End, Breaker Strip (2)
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	350956 Whirlpool Spray Assembly
