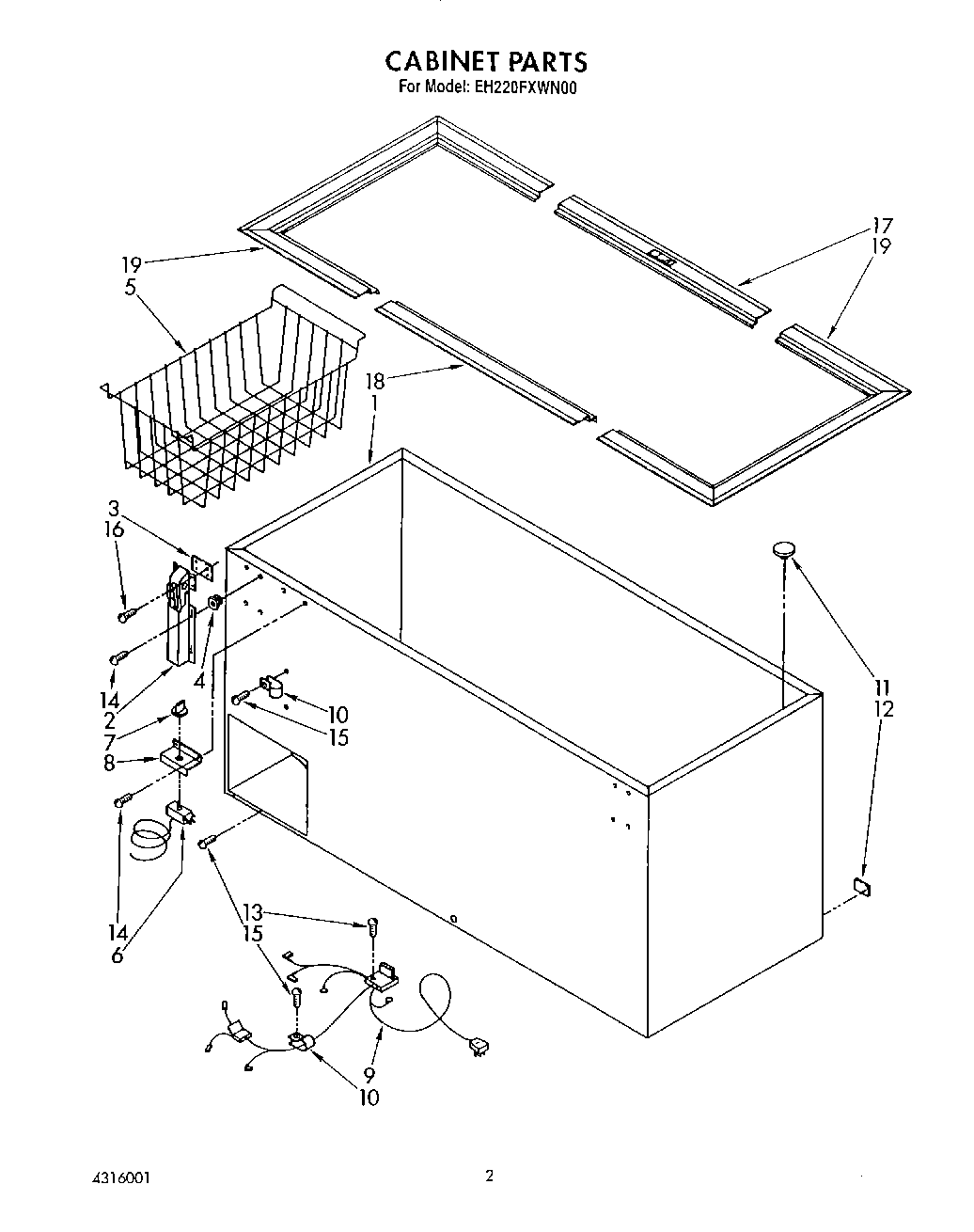

| Parts List |
| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Hinge, Assembly |
| 3 | 1-17548-006 Whirlpool Refrigerator Spacer |
| 4 | 4356321 Whirlpool Refrigerator Grommet |
| 5 | Wire Basket |
| 6 | Thermostat |
| 7 | Thermostat, Knob |
| 8 | Thermostat, Control Bracket |
| 9 | Wiring, Harness External |
| 10 | 488946 Whirlpool Air Conditioner Clamp |
| 11 | Drain, Cap |
| 12 | Drain, Plug |
| 13 | Screw |
| 14 | WP308685 Whirlpool Microwave Screw |
| 15 | WP488787 Whirlpool Refrigerator Screw |
| 16 | Screw |
| 17 | Front, Breaker Strip |
| 18 | Rear, Breaker Strip |
| 19 | WP72107 Whirlpool Touchup |
| 19 | Almond (Uncut) |
| 19 | End, Breaker Strip (2) |
| 19 | 350956 Whirlpool Spray Assembly |
