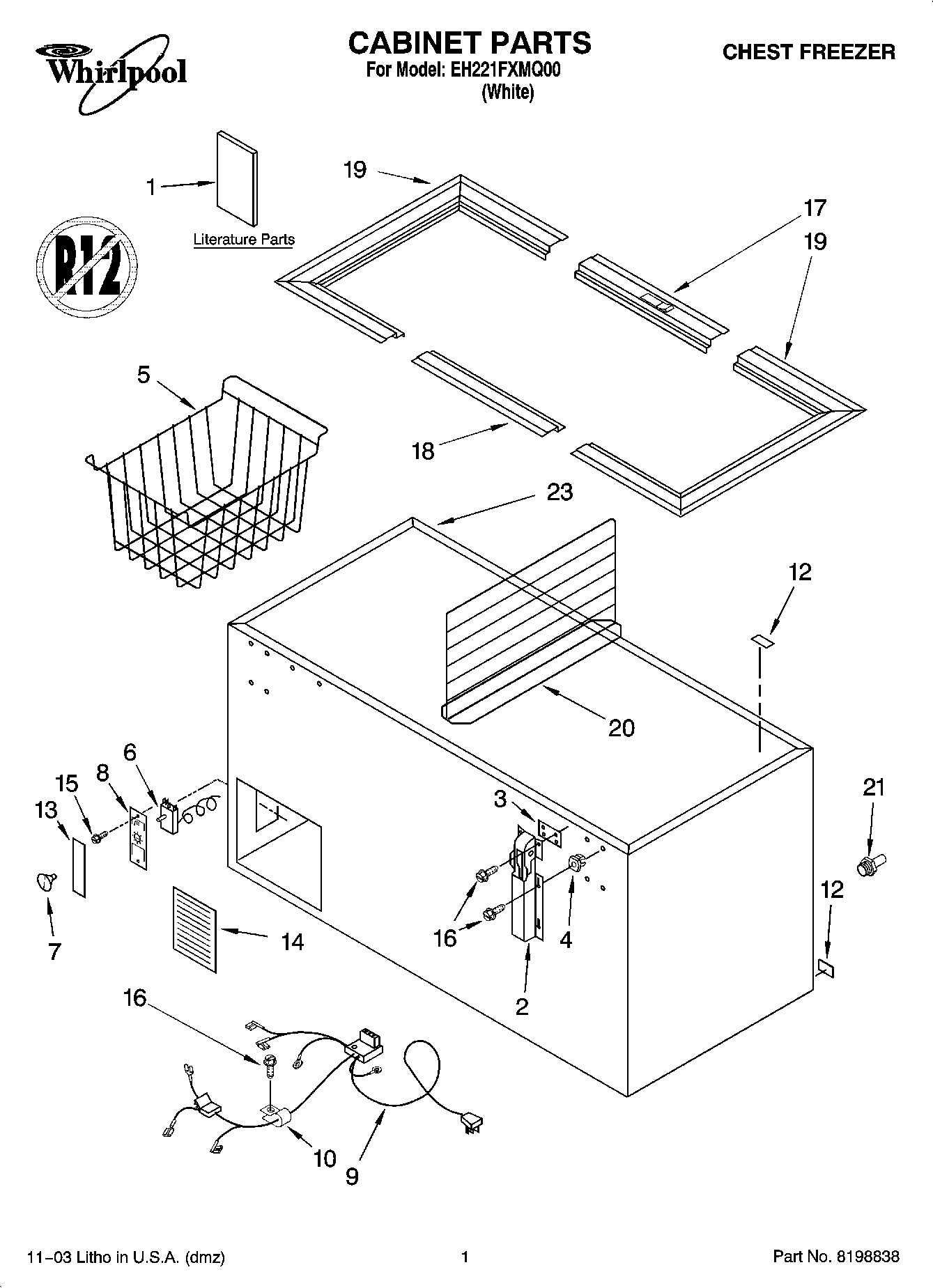

EH221FXMQ00 01 – CABINET PARTS

Products

Position	Product
1	Literature Parts (Energy Label)
1	Literature Parts (Use & Care Guide)
2	W11192185 Whirlpool Refrigerator Door Hinge
3	1-17548-006 Whirlpool Refrigerator Spacer
4	4356321 Whirlpool Refrigerator Grommet
5	Wire Basket (Lower, Standard (2))
5	W11553315 Whirlpool Refrigerator Basket
6	WP4-35940-001 Whirlpool Refrigerator Thermostat
7	Thermostat, Knob
8	W10682894 Whirlpool Refrigerator Control Box
9	Wiring, Harness External
10	488946 Whirlpool Air Conditioner Clamp
12	Drain, Cap
13	Insert, Control
14	Access Panel
15	3-24004-049 Whirlpool Screw
16	4356491 Whirlpool Refrigerator Screw
17	4356641 Whirlpool Refrigerator Trim Bracket
18	W11045298 Whirlpool Refrigerator Trim Bracket
19	W11045300 Whirlpool Refrigerator Trim Bracket
20	Divider
21	Clip, Gasket (Kit Of 60)
21	W11663505 Whirlpool Hose Adapter
21	Almond (Uncut)
21	PARTS NOT ILLUSTRATED
21	Parts Not Illustrated and Optional Parts (Not Included)
21	Customer Touch-Up Material
21	WP72107 Whirlpool Touchup
21	350956 Whirlpool Spray Assembly
