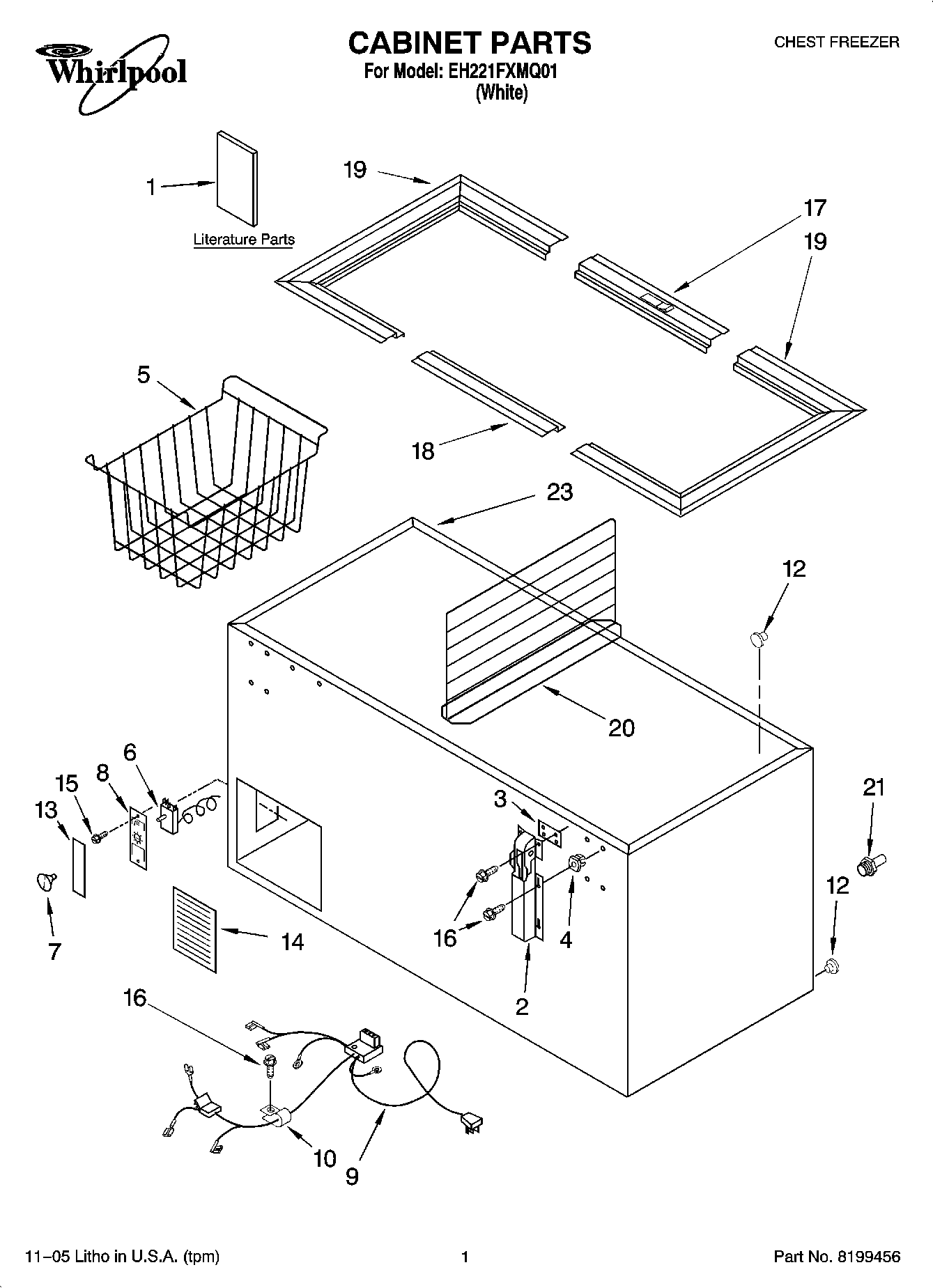

EH221FXMQ01 01 – CABINET PARTS

Products

Position	Product
1	Owner`s Manual
2	W11192185 Whirlpool Refrigerator Door Hinge
3	1-17548-006 Whirlpool Refrigerator Spacer
4	4356321 Whirlpool Refrigerator Grommet
5	Wire Basket (Lower, Standard (2))
5	W11553315 Whirlpool Refrigerator Basket
6	WP4-35940-001 Whirlpool Refrigerator Thermostat
7	Thermostat, Knob
8	W10682894 Whirlpool Refrigerator Control Box
9	4-35136-002 Whirlpool Refrigerator Harness
10	488946 Whirlpool Air Conditioner Clamp
12	Drain, Cap
13	Insert, Control
14	Access Panel
15	3-24004-049 Whirlpool Screw
16	4356491 Whirlpool Refrigerator Screw
17	4356641 Whirlpool Refrigerator Trim Bracket
18	W11045298 Whirlpool Refrigerator Trim Bracket
19	W11045300 Whirlpool Refrigerator Trim Bracket
20	Divider
21	W11663505 Whirlpool Hose Adapter
23	Cabinet (Not A Serviceable Part)
23	Parts Not Illustrated and Optional Parts (Not Included)
23	Clip, Gasket (Kit Of 60)
23	350956 Whirlpool Spray Assembly
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	Customer Touch-Up Material
