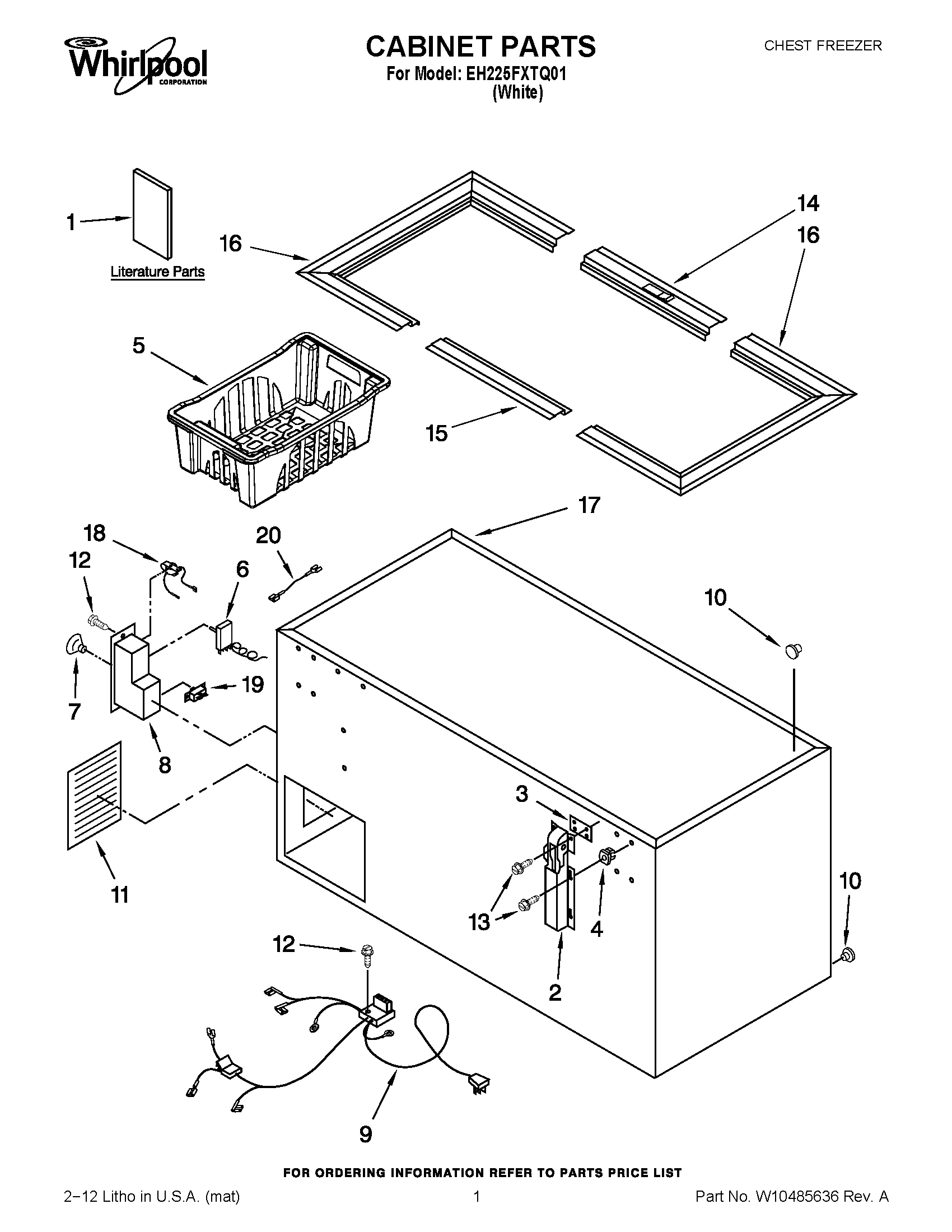

EH225FXTQ01 01 – CABINET PARTSadmin2025-04-26T09:49:13+00:00EH225FXTQ01 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | ENERGY GUIDE |
| 1 | OWNERS MANUAL |
| 2 | HINGE, ASSEMBLY |
| 3 | SPACER, HINGE |
| 4 | PLASTIC, GROMMET |
| 5 | BASKET |
| 6 | THERMOSTAT |
| 7 | KNOB, THERMOSTAT |
| 8 | CONTROL BOX |
| 9 | HARNESS, WIRING |
| 10 | DRAIN, PLUG |
| 11 | ACCESS PANEL |
| 12 | SCREW |
| 13 | SCREW |
| 14 | FRONT, BREAKER STRIP |
| 15 | REAR, BREAKER STRIP |
| 16 | END, BREAKER STRIP (2) |
| 17 | CABINET (NOT A SERVICEABLE PART) |
| 18 | BUZZER, DOOR ALARM |
| 19 | SWITCH, ALARM |
| 20 | WIRE, LEAD |
