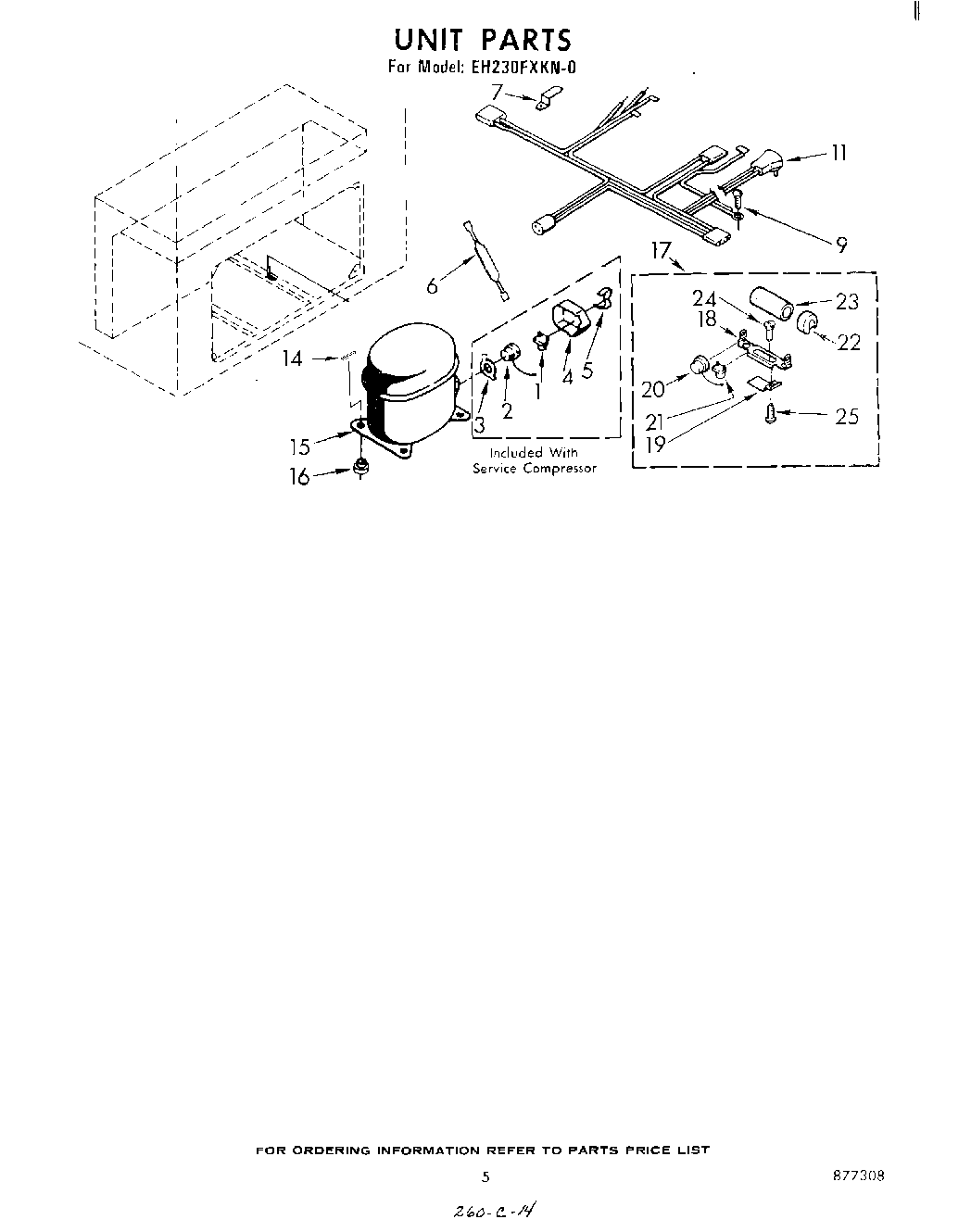

EH230FXKN0 04 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350942 Whirlpool Spray Paint
	Leveler (Thinner) (2oz.)
	350956 Whirlpool Spray Assembly
1	Relay
2	Overload
3	Spring
4	Cover, Terminal
5	Cover Strap
6	W10843121 Whirlpool Refrigerator Tube
7	Clip, Cord Plug
9	Screw
11	Harness, Wiring
14	Clip, Compressor Mounting (4)
15	Compressor (Also Includes Items 1, 2, 3, 4, & 5)
15	876765 Whirlpool Primary Mounting Kit Refrigerator
16	876811 Whirlpool Grommet
17	Start Kit
18	Bracket, Capacitor (Component Of Start Kit)
19	Bracket, Mounting (Used On Start Kit 482278)
20	Overload (Used On Start Kit 482706)
21	Relay (Used On Start Kit 482706)
22	Cap, Capacitor (Used On Start Kit 482278)
23	WP482156 Whirlpool Refrigerator Capacitor
24	Screw (2) (Used On Start Kit 482278)
25	WPL 799351
25	Screw (Used On Start Kit 482278)
25	212643 Whirlpool Refrigerator Permagum Sealer
25	VALVE, ACCESS (5/8“)
25	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
25	WP72107 Whirlpool Touchup
25	Energy Guide
25	799344 Whirlpool Refrigerator Paint
25	72017 Whirlpool Appliance Touch-Up Paint White
25	Almond (Uncut)
25	978026 Whirlpool Refrigerator Primary Valve
25	VALVE, ACCESS (1/2“)
25	WP978025 Whirlpool Refrigerator Valve
25	978030 Whirlpool Refrigerator Valve
25	Book, How To Freeze
25	Guide, Use & Care
25	978027 Whirlpool Refrigerator Primary Valve
25	Kit, Insulation (Door Only)
25	WP505587 Whirlpool Refrigerator Sealer
25	List, Parts
