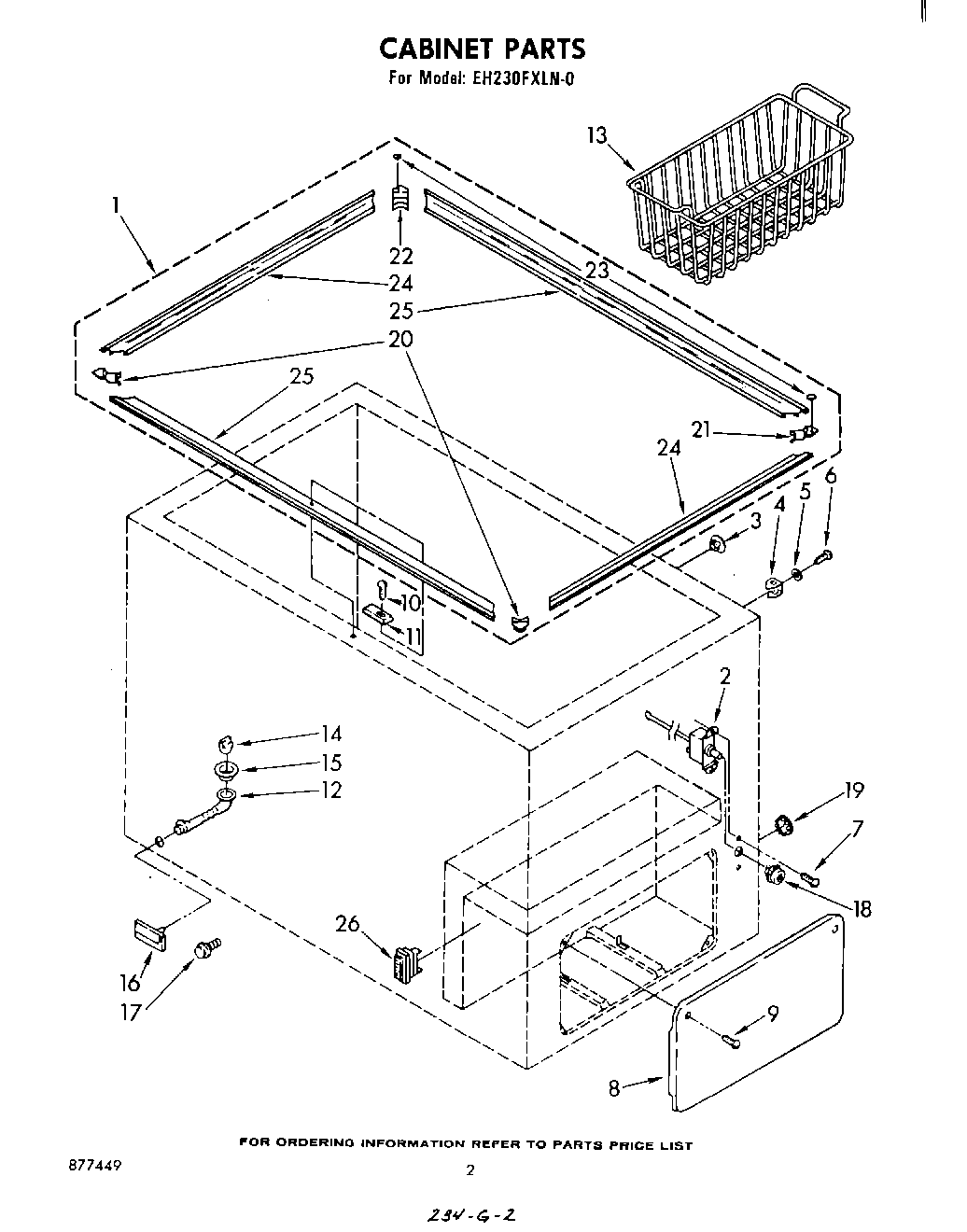

EH230FXLN0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	Leveler (Thinner) (2oz.)
	350942 Whirlpool Spray Paint
1	Collar Kit (Items 20, 21, 22 23, 24 & 25 Are Included In Collar Kit)
2	Control, Temperature
3	Plug Button
4	Rod Holder Assembly
5	WP120393 Whirlpool Washer Assembly
6	Screw
7	Screw
8	Door
9	Screw
10	Screw
11	Box, Strike
12	Tube, Drain
13	Basket (2)
14	Plug, Drain
15	Ferrule, Drain
16	Cover, Drain
17	Adapter, Hose
18	Knob, Control
19	Plug, Button
20	Corner, Front (2)
21	Corner (Right Rear)
22	Corner (Left Rear)
23	Grommet (2)
24	Collar, End (2)
25	Collar (2) (Front & Rear)
26	Almond (Uncut)
26	WP72107 Whirlpool Touchup
26	212643 Whirlpool Refrigerator Permagum Sealer
26	Kit, Condenser (1 Required)
26	799344 Whirlpool Refrigerator Paint
26	Energy Guide
26	List, Parts
26	72017 Whirlpool Appliance Touch-Up Paint White
26	833938 Whirlpool Refrigerator Terminal
26	WP503695 Whirlpool Refrigerator Sealer
26	WP505587 Whirlpool Refrigerator Sealer
26	Kit, Insulation (Door Only)
26	Book, How To Freeze
26	Guide, Use & Care
26	Light, Indicator
26	Tech Sheet
26	WPL 799351
26	Transformer (115-230 Volt)
26	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
26	Kit, Precooler (1 Required)
