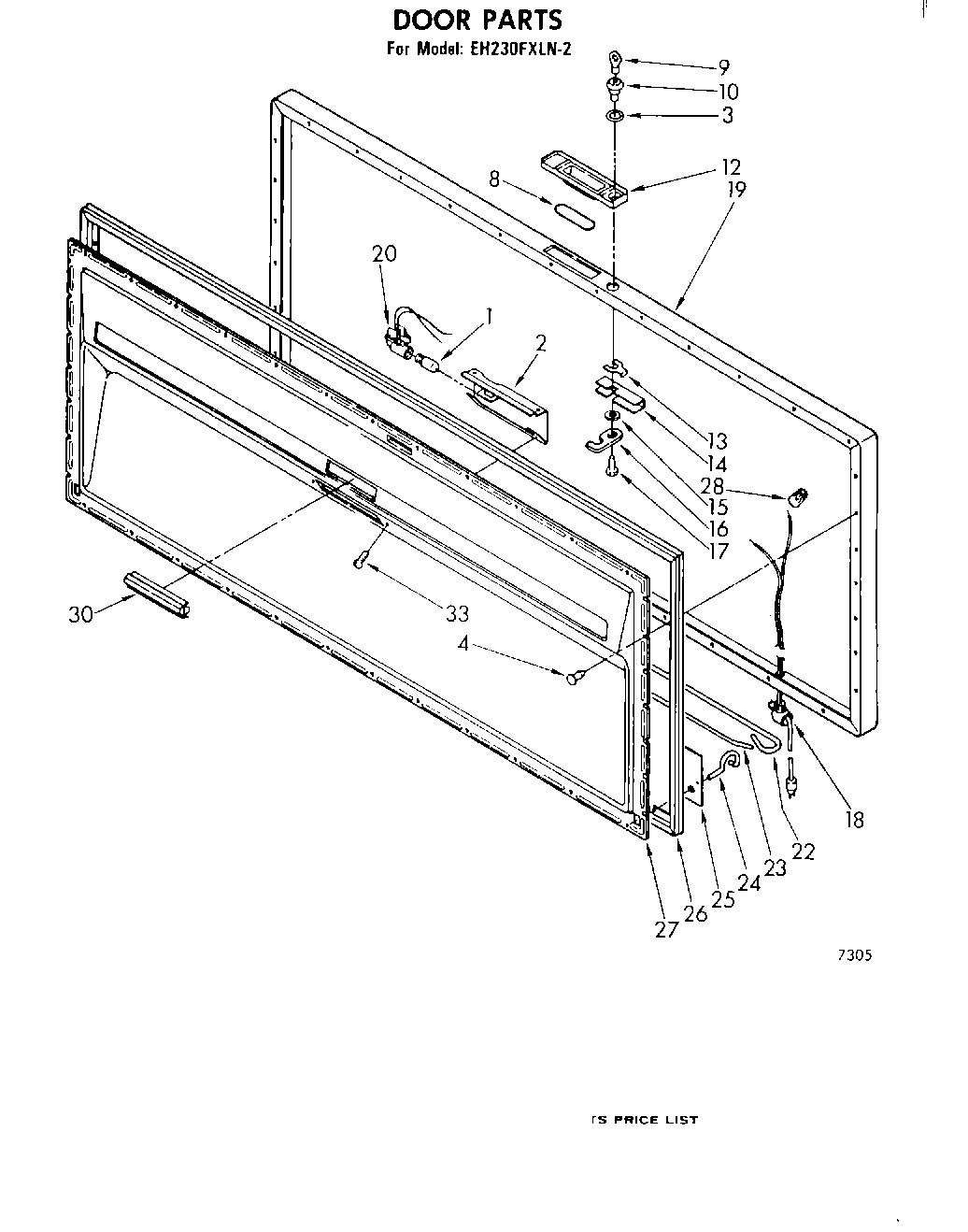

EH230FXLN2 03 – SECTION

Products

Position	Product
1	W10873798 Whirlpool Refrigerator Light Bulb
2	Deflector, Light
3	“O“ Ring
4	Clip (36)
8	Gasket, Handle
9	WP842177 Whirlpool Refrigerator Door Key
10	Lock
12	Handle
13	Clip, Lock
14	Shroud, Lock
15	Plate, Bolt
16	Hook, Lock
17	Screw
18	Harness, Exterior Door
19	Panel, Exterior Door
20	Lampholder
22	Bar, L.H. Torsion
23	Bar, R.H. Torsion
24	Hinge, R.H.
24	Hinge, L.H.
25	Cover, Hinge Rod (2)
26	Gasket
27	Panel, Interior
28	Conector, Wire
30	Lens, Light
33	WP965173 Whirlpool Dishwasher Screw
