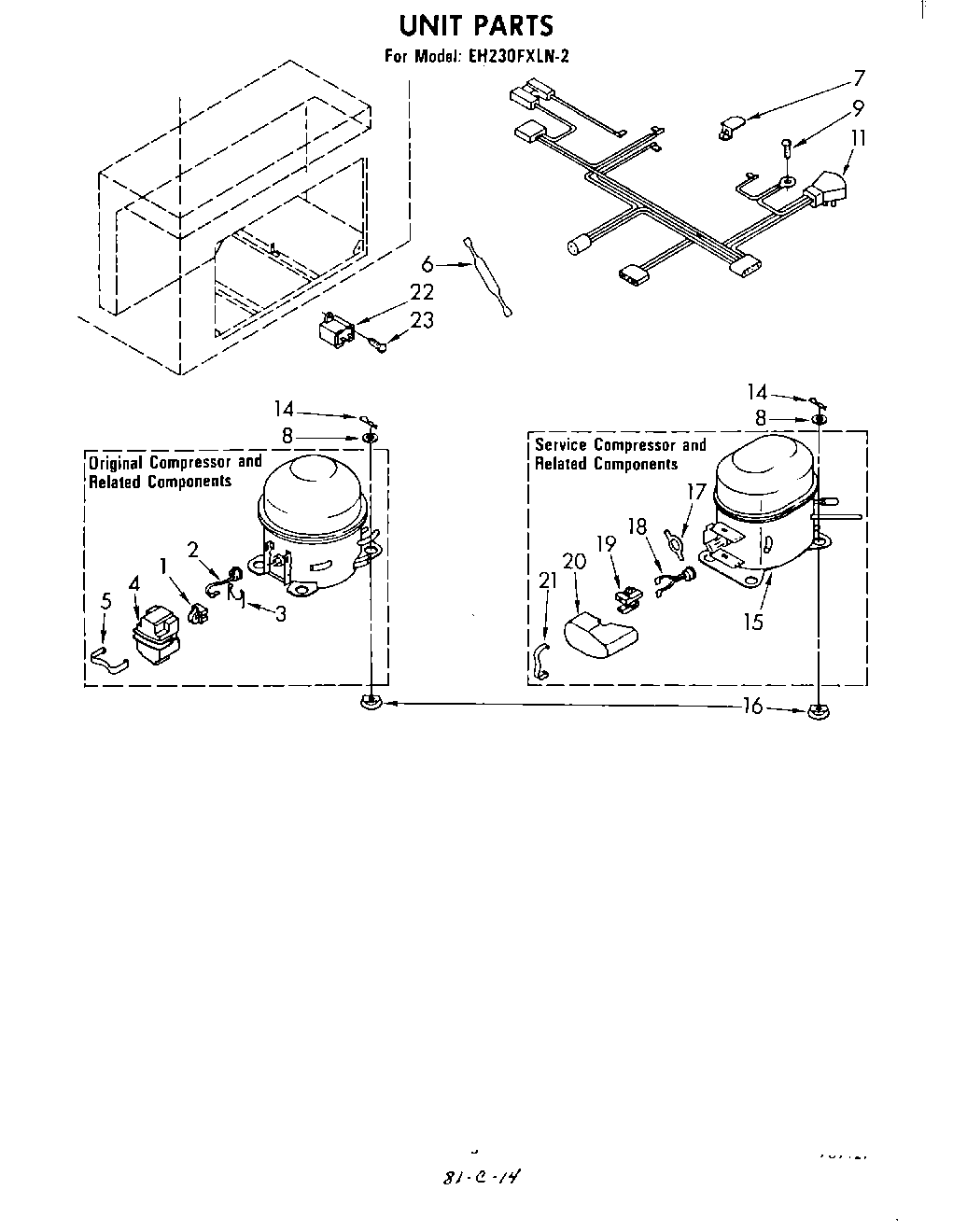

EH230FXLN2 04 – SECTION

Products

Position	Product
1	Relay
2	Overload (Used W/Original Compressor)
3	Spring, Overload
4	relay case
5	case spring
6	W10843121 Whirlpool Refrigerator Tube
7	Clip, Cord Plug
8	Washer
9	Screw
11	Harness, Wiring
14	Clip, Compressor Mounting (4)
15	876765 Whirlpool Primary Mounting Kit Refrigerator
15	Compressor Kit (Includes, Items 72, 73, 74, 75 & 76) (Also Order 876765 Tube Kit)
16	876811 Whirlpool Grommet
17	Spring, Overload
18	Overlo
19	Relay
20	WPL 549505
21	Cover, Spring
22	WPW10662129 Whirlpool Refrigerator Run Capacitor
23	VALVE, ACCESS (1/2“)
23	WP978025 Whirlpool Refrigerator Valve
23	978030 Whirlpool Refrigerator Valve
23	978027 Whirlpool Refrigerator Primary Valve
23	978026 Whirlpool Refrigerator Primary Valve
23	W11693756 Whirlpool Screw Assembly
23	VALVE, ACCESS (5/8“)
