EH230FXPN2 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Leveler (Thinner) (2oz.)
	WPL 677971
	WPL 677967
	WPL 677821
	WPL 677818
	WPL LIT730051
	WPL LIT789331
	350942 Whirlpool Spray Paint
	350956 Whirlpool Spray Assembly
	Literature Parts (Sheet, Tech)
	Energy Guide
	WPL LIT656493
	WPL 677813

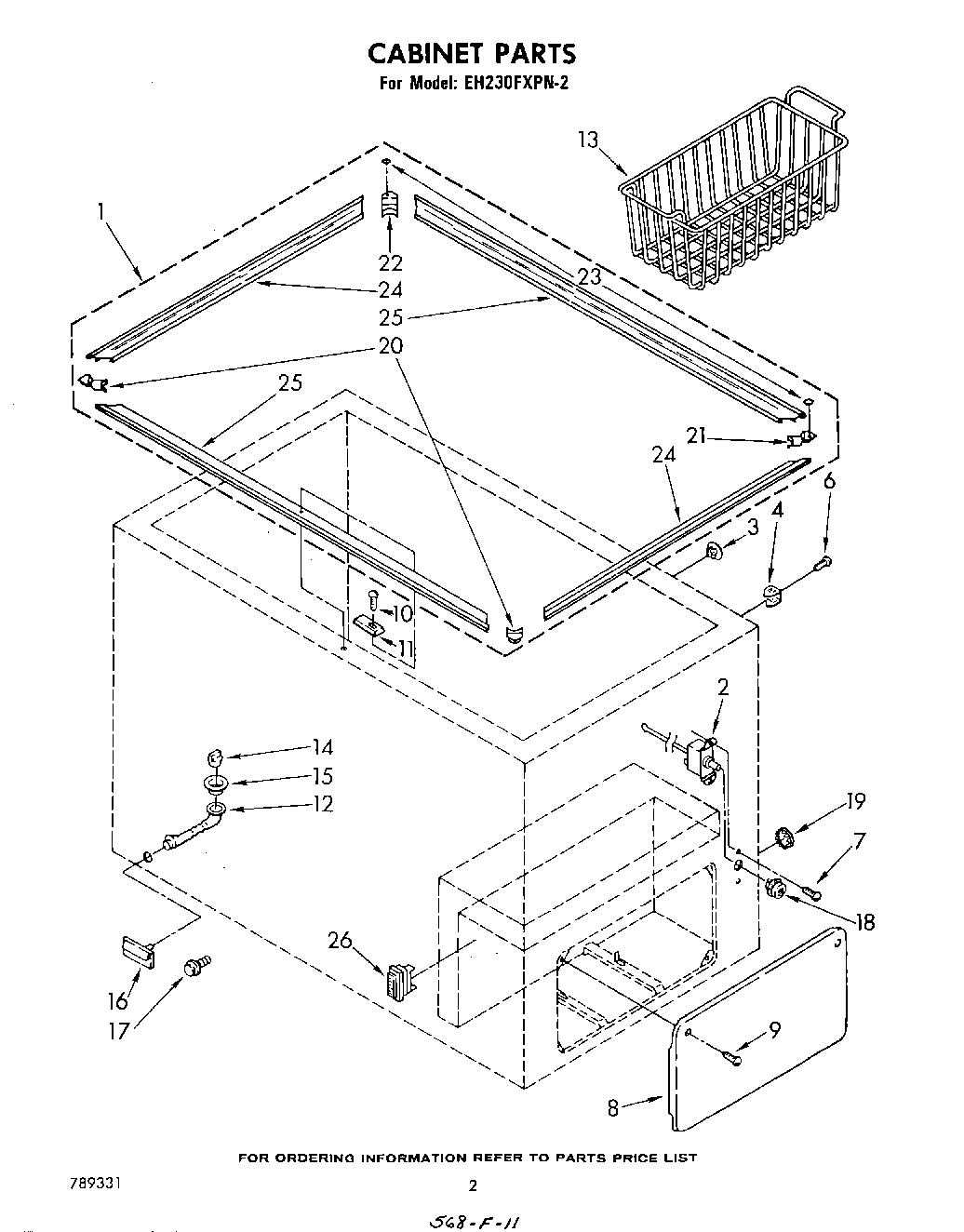

1	Collar Kit (White) (Includes Items 20, 24 & 25)
2	Control, Cold
3	Plug Button
4	Rod Holder Assembly
6	Bolt, Machine
7	Screw
8	Door
9	Screw
10	Screw
11	Box, Strike
12	Tube, Drain
13	Basket (2)
14	Plug, Drain
15	Ferrule, Drain
16	Cover, Drain
17	Adapter, Hose
18	Knob, Control
19	Plug, Button
20	Corner, Front (2)
21	Corner (Right Rear)
22	Corner (Left Rear)
23	Grommet (2)
24	Collar, End (2)
25	Collar (2) (Front & Rear) (White)
26	Almond (Uncut)
26	Kit, Condenser (1 Required)
26	WP72107 Whirlpool Touchup
26	72017 Whirlpool Appliance Touch-Up Paint White
26	799344 Whirlpool Refrigerator Paint
26	833938 Whirlpool Refrigerator Terminal
26	Transformer (115-230 Volt)
26	WP503695 Whirlpool Refrigerator Sealer
26	WP505587 Whirlpool Refrigerator Sealer
26	Light, Indicator
26	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
26	Kit, Insulation (Door Only)
26	212643 Whirlpool Refrigerator Permagum Sealer
26	Kit, Precooler (1 Required)
