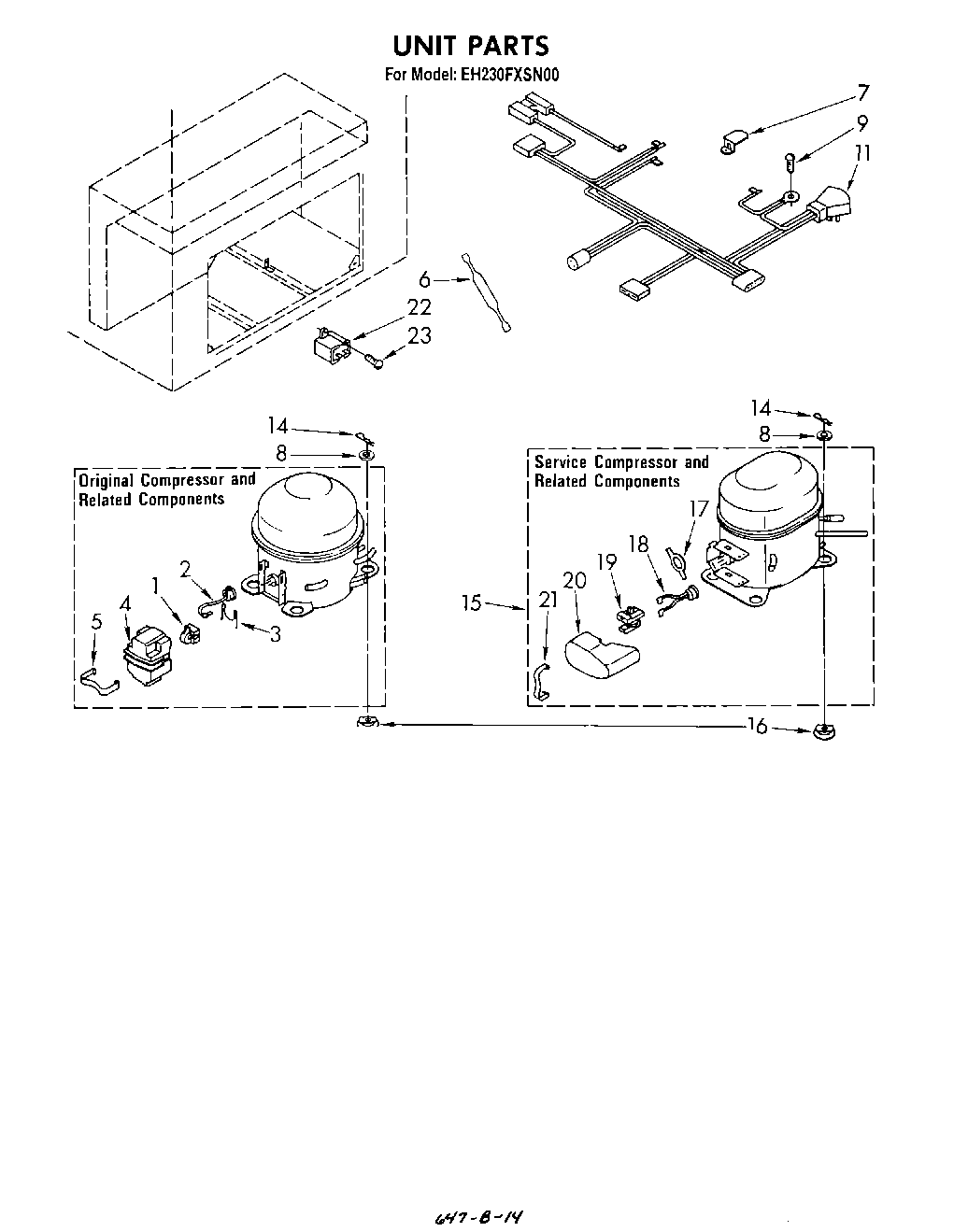

EH230FXSN00 04 – SECTION

Products

PositionProduct
1Relay
2Overload (Used W/Original Compressor)
3Spring, Overload
4Case, Relay
5case spring
6Drier
7Clip, Cord Plug
8Washer
9Screw
11Harness, Wiring
14Clip (4)
15Compressor Kit (Includes, Items 72, 73, 74, 75 & 76) (Also Order 876765 Tube Kit)
15876765 Whirlpool Primary Mounting Kit Refrigerator
16876811 Whirlpool Grommet
17Spring, Overload
18Overload
19Relay
20WPL 549505
21Cover, Spring
22WPW10662129 Whirlpool Refrigerator Run Capacitor
23W11693756 Whirlpool Screw Assembly
23876764 Whirlpool Refrigerator Primary Valve
23978026 Whirlpool Refrigerator Primary Valve
23978027 Whirlpool Refrigerator Primary Valve
23978030 Whirlpool Refrigerator Valve
23WP978025 Whirlpool Refrigerator Valve
23VALVE, ACCESS (1/2“)
23VALVE, ACCESS (5/8“)
