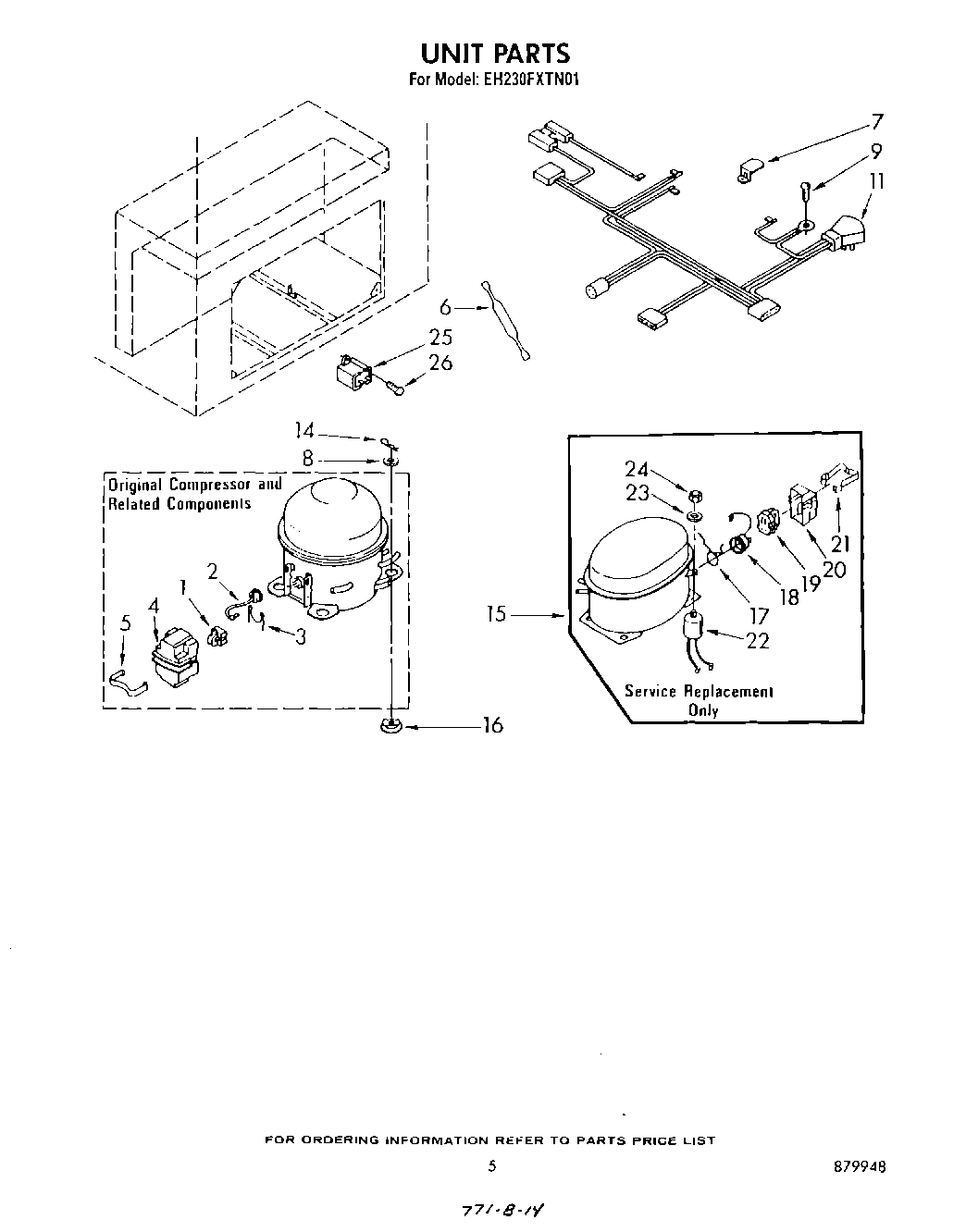

EH230FXTN01 04 – SECTION

Products

Position	Product
1	Relay
2	Overload
3	Spring, Overload
4	Case, Relay
5	case spring
6	Drier
7	Clip, Cord Plug
8	Washer
9	Screw
11	Harness, Wiring
14	Clip (4)
15	Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (Also Order)
16	876811 Whirlpool Grommet
17	Overload Spring
18	Overload
19	WP2262181 Whirlpool Refrigerator Start Relay
20	Cover, Terminal
21	Strap
22	Capacitor
23	Washer
24	Nut
25	WPW10662129 Whirlpool Refrigerator Run Capacitor
26	Screw, 8-32 x 1/2
