EH23EFXRW2 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Leveler (Thinner) (2oz.)
	Literature Parts (Sheet, Tech)
	Use & Care Guide
	WPL LIT656493
	350942 Whirlpool Spray Paint
	Energy Guide

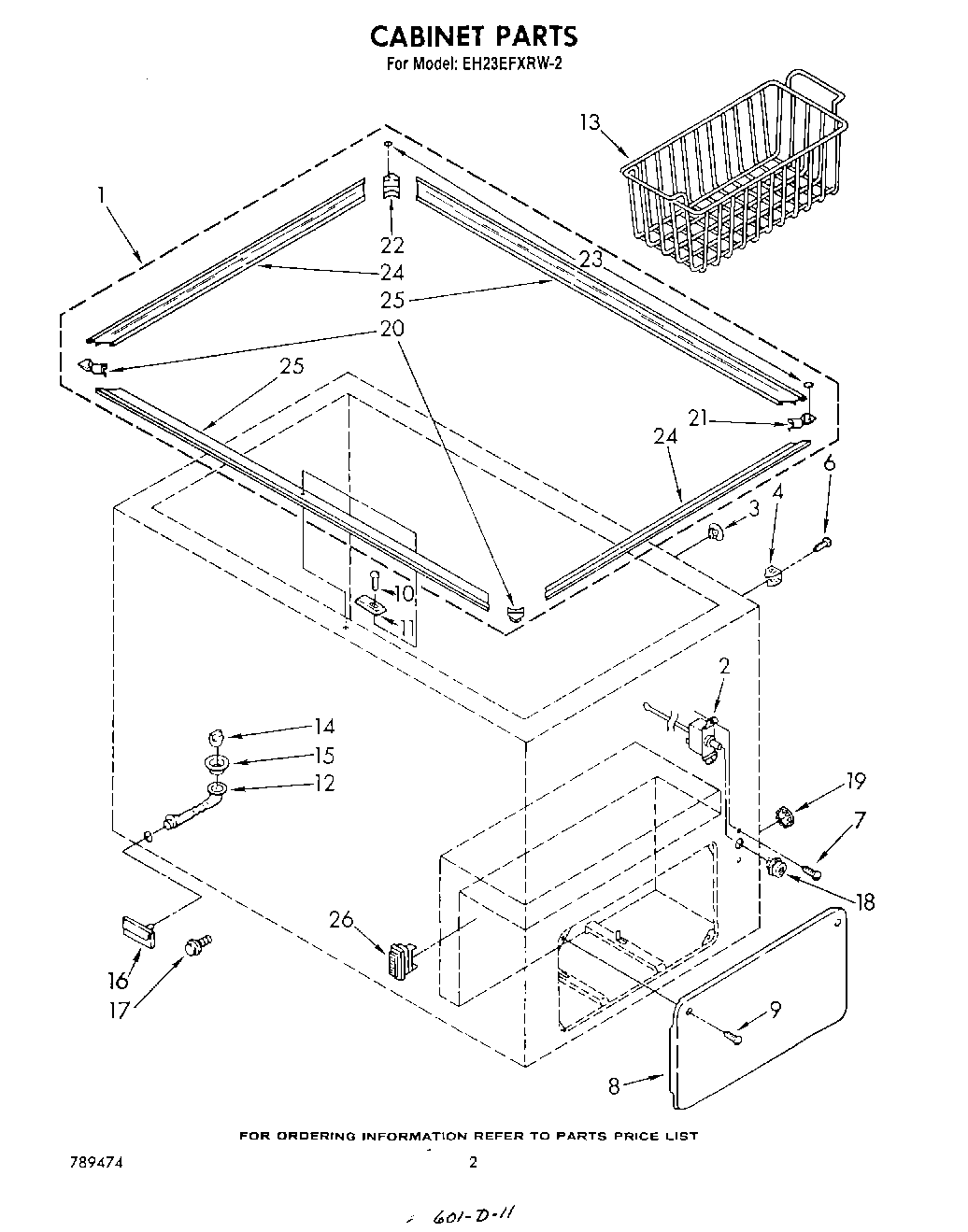

	List, Parts
1	Collar Kit (White) (Includes Items 20, 24 & 25)
2	Control, Cold
3	Plug Button
4	Rod Holder Assembly
6	Bolt, Machine
7	Screw
8	Door
9	Screw
10	Screw
11	Box, Strike
12	Tube, Drain
13	Basket (2)
14	Plug, Drain
15	Ferrule, Drain
16	Cover, Drain
17	Adapter, Hose
18	Knob, Control
19	Plug, Button
20	Corner, Front (2)
21	Corner (Right Rear)
22	Corner (Left Rear)
23	Grommet (2)
24	Collar, End (2)
25	Collar (2) (Front & Rear) (White)
26	72017 Whirlpool Appliance Touch-Up Paint White
26	799344 Whirlpool Refrigerator Paint
26	212643 Whirlpool Refrigerator Permagum Sealer
26	833938 Whirlpool Refrigerator Terminal
26	Kit, Precooler (1 Required)
26	WP503695 Whirlpool Refrigerator Sealer
26	WP505587 Whirlpool Refrigerator Sealer
26	Light, Indicator
26	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
26	Kit, Insulation (Door Only)
26	Transformer (115-230 Volt)
26	Kit, Condenser (1 Required)
