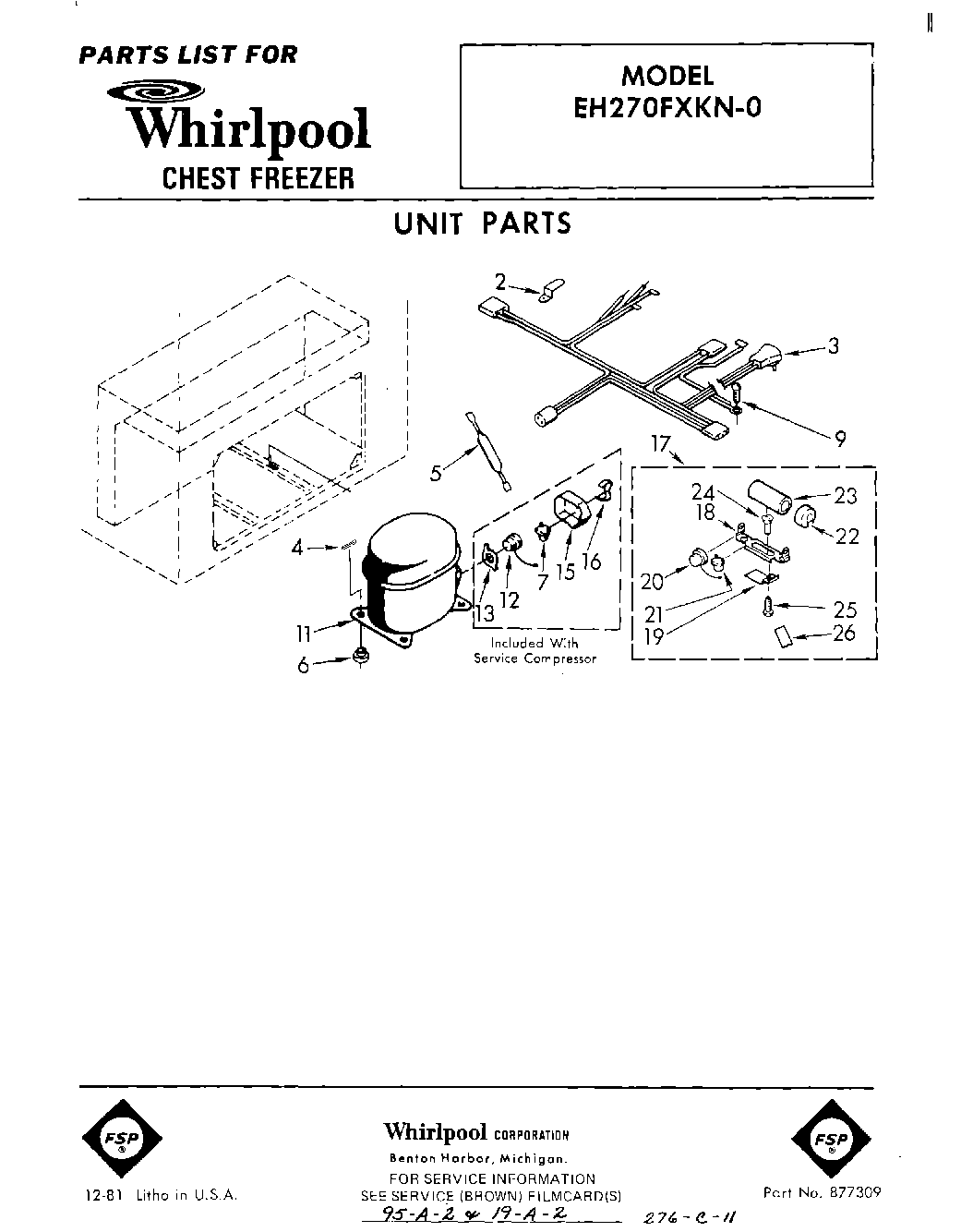

EH270FXKN0 01 – SECTION

Products

PositionProduct
2Clip, Cord Plug
3Harness, Wiring
4Clip, Compressor Mounting (4)
5W10843121 Whirlpool Refrigerator Tube
6876811 Whirlpool Grommet
7Relay
9Screw
11Compressor (Also Includes Items 1, 2, 3, 4, & 5)
12Overload
13Spring
15Cover, Terminal
16Cover Strap
17Start Kit
18Support, Bracket (Used On Start Kit 482278)
19Bracket, Mounting (Used On Start Kit 482278)
20Overload (Used On Start Kit 482398)
21Relay (Used On Start Kit 482398)
22Cap, Capacitor (Used On Start Kit 482278)
23WP482156 Whirlpool Refrigerator Capacitor
24Screw (2) (Used On Start Kit 482278)
25WP488729 Whirlpool Refrigerator Door Screw
26Clip, Terminal
