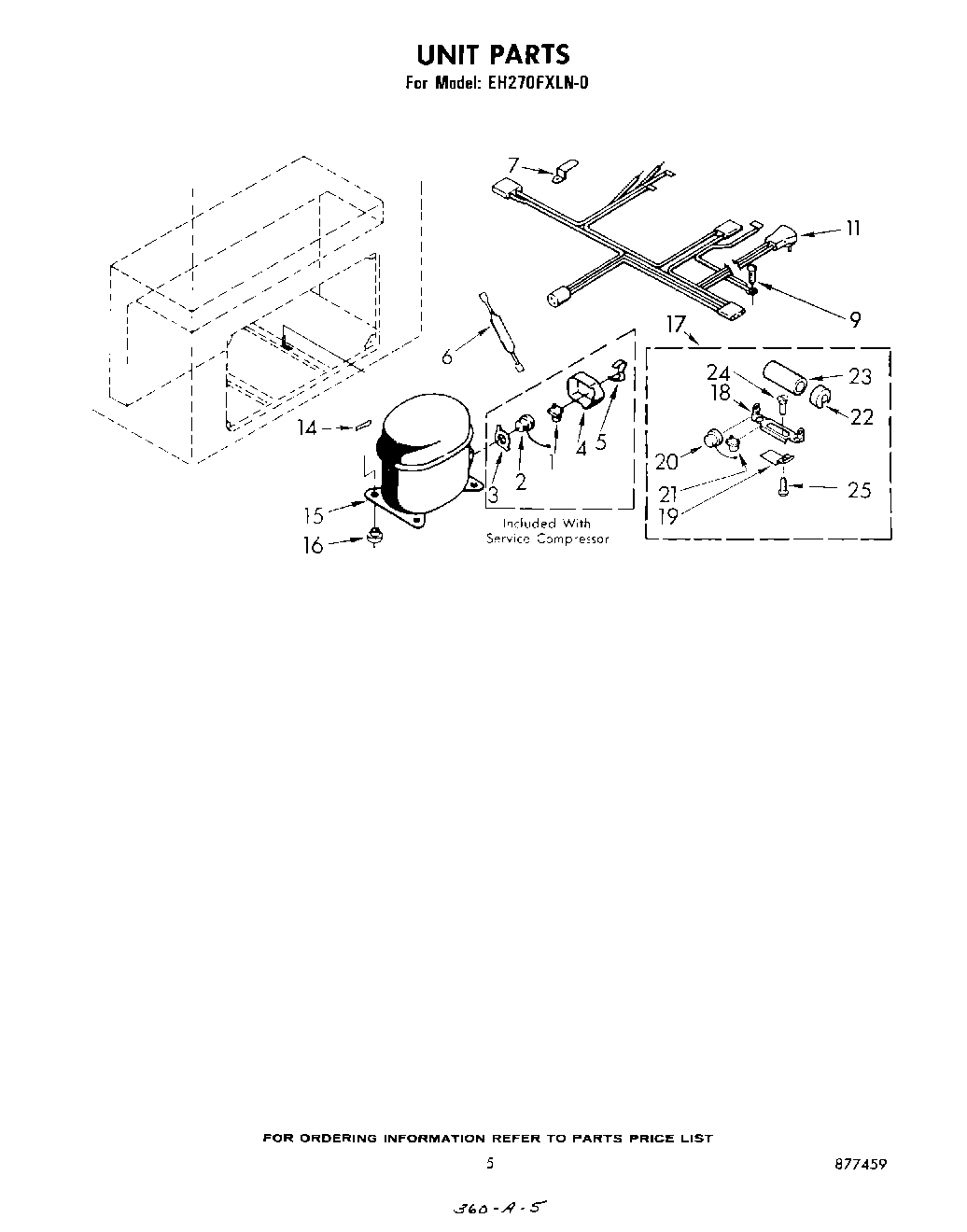

EH270FXLN0 04 – SECTION

EH270FXLN0 04 – SECTION

Written by

in

EH270FXLN0 04 – SECTION

Products

PositionProduct
1Relay
2Overload
3Spring
4Cover, Terminal
5Cover Strap
6W10843121 Whirlpool Refrigerator Tube
7Clip, Cord Plug
9Screw
11Harness, Wiring
14Clip, Compressor Mounting (4)
15Compressor (Also Includes Items 1, 2, 3, 4, & 5)
15876765 Whirlpool Primary Mounting Kit Refrigerator
16876811 Whirlpool Grommet
17Start Kit
18Bracket, Capacitor (Component Of Start Kit)
19Bracket, Mounting (Used On Start Kit 482278)
20Overload (Used On Start Kit 482706)
21Relay (Used On Start Kit 482706)
22Cap, Capacitor (Used On Start Kit 482278)
23WP482156 Whirlpool Refrigerator Capacitor
24Screw (2) (Used On Start Kit 482278)
25978026 Whirlpool Refrigerator Primary Valve
25978027 Whirlpool Refrigerator Primary Valve
25978030 Whirlpool Refrigerator Valve
25WP978025 Whirlpool Refrigerator Valve
25VALVE, ACCESS (1/2“)
25Screw (Used On Start Kit 482278)
25VALVE, ACCESS (5/8“)
