EH270FXPN0 04 – SECTION

EH270FXPN0 04 – SECTION

Written by

in

EH270FXPN0 04 – SECTION

Products

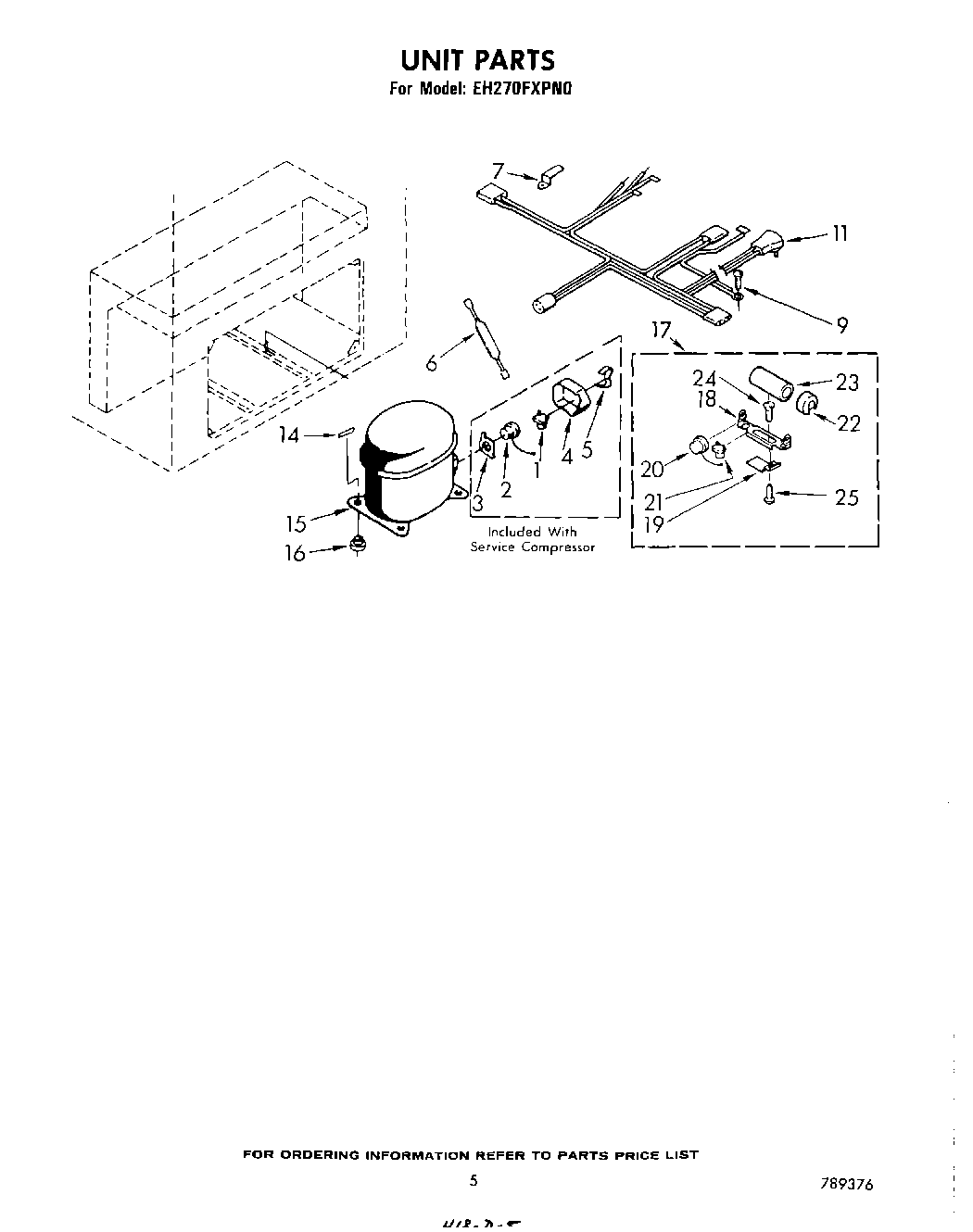

PositionProduct
1Relay
2Overload
3Spring
4Cover, Terminal
5Cover Strap
6Drier
7Clip, Cord Plug
9Screw
11Harness, Wiring
14Clip (4)
15876765 Whirlpool Primary Mounting Kit Refrigerator
15Compressor Kit (Includes, Items 72, 73, 74, 75 & 76) (Also Order 876765 Tube Kit)
16876811 Whirlpool Grommet
17Start Kit
18Bracket, Capacitor (Component Of Start Kit)
19Bracket, Mounting (Used On Start Kit 482278)
20Overload (Used On Start Kit 482706)
21Relay (Used On Start Kit 482706)
22Cap, Capacitor (Used On Start Kit 482278)
23WP482156 Whirlpool Refrigerator Capacitor
24Screw (2) (Used On Start Kit 482278)
25876764 Whirlpool Refrigerator Primary Valve
25978026 Whirlpool Refrigerator Primary Valve
25978027 Whirlpool Refrigerator Primary Valve
25978030 Whirlpool Refrigerator Valve
25WP978025 Whirlpool Refrigerator Valve
25Screw (Used On Start Kit 482278)
25VALVE, ACCESS (1/2“)
25VALVE, ACCESS (5/8“)
