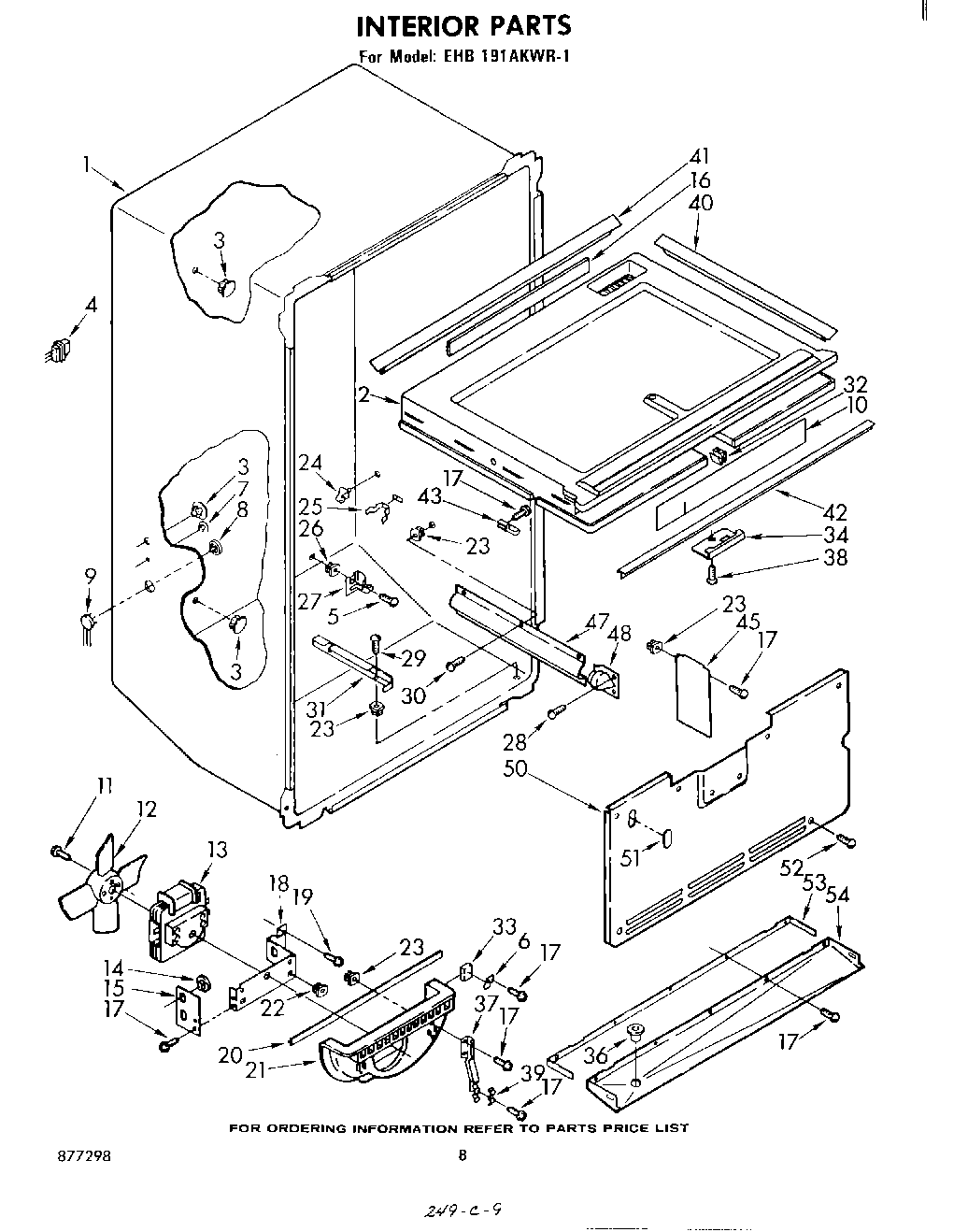

EHB191AKWR1 05 – INTERIOR

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Separator Compartment
3	Hole, Plug
4	Liner Wiring (Defrost Timer)
5	SCREW
6	Support Clip
7	Hole, Plug
8	Receptacle Cap
9	Wiring, Ice Maker
10	Wiring Shield
11	WP487887 Whirlpool Refrigerator Screw
12	Blade, Fan
13	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
14	Grommet (3)
15	Fan, Bracket Double
16	Gasket, Sealing
17	W11624204 Whirlpool Screw
18	Bracket, Fan Mounting (Single)
19	WP489069 Whirlpool Compactor Screw
20	Gasket, Sealing
21	Scroll Fan
22	Screw Grommet
23	Grommet
24	Stud, Support (2)
25	Speed Clip, Light Lens (3)
26	Grommet, Screw (2)
27	Support, Evaporator
29	W11693756 Whirlpool Screw Assembly
31	Slide, Basket (R.S)
31	Slide, Basket (Left Side)
32	Expansion Clip
33	Pad, Scroll (2)
34	Light Switch Cover
36	Fitting, Drain Pan
37	Support, Fan Scroll (2)
38	WP488729 Whirlpool Refrigerator Door Screw
39	Clamp, Fan Scroll Bracket (2)
40	Gasket, Side (2)
41	Gasket, Rear
42	Gasket, Front
43	Hold Down
45	Baffle, Air Evaporator
47	Cover, Tube
48	Cover, Tub Entry
50	Cover, Evaporator
51	Hole Plug, Evaporator
53	Gasket, Drain Pan
54	Pan, Drain (Also Includes Illus. 36)
