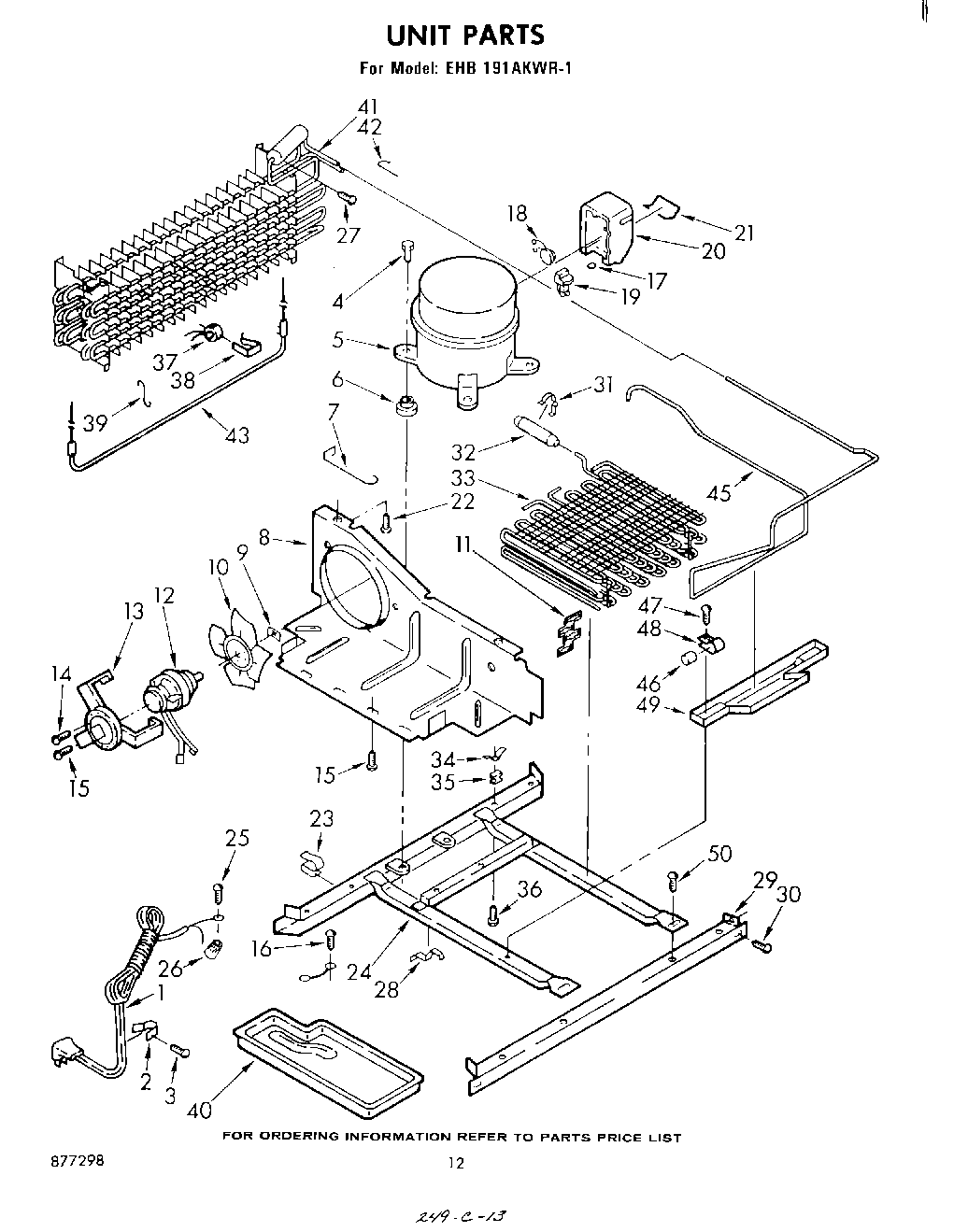

EHB191AKWR1 07 – UNIT

Products

Position	Product
1	Cord, Service
2	549193 Whirlpool Refrigerator Power Clamp
4	Screw, 1/4-28 x 1“ (4)
5	Compressor
6	Grommet (4)
7	Guard, Fan
8	Baffle
9	WP486692 Whirlpool Refrigerator Nut
10	Fan, Blade
11	Spacer Condenser (4)
12	833697 Whirlpool Condenser Fan Motor
13	Bracket, Motor
14	Screw, 8-36 x 3/8 (3)
15	Screw, 8 x 3/8
16	303776 Whirlpool Dishwasher Screw
17	Bumper
18	Overload
19	Relay
19	Relay (Alternate)
20	Case, Relay
21	Spring
22	Screw, 8-32 x 1/2
23	Clip, Wire (2)
24	Frame
25	Screw, 8-32 x 3/8
26	Wire Connector
27	W11693756 Whirlpool Screw Assembly
28	Clip (2)
29	Rail, Front
30	489340 Whirlpool Refrigerator Screw
31	Clamp
32	W10843121 Whirlpool Refrigerator Tube
33	Condenser & Precooler Assembly
34	Clamp (4)
35	Grommet (4)
36	W11624204 Whirlpool Screw
37	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
38	Clamp
39	Support, Heater
40	WPL 842041
41	Evaporator
42	Clip, Heater (2)
43	Heater, Defrost
45	Exchanger, Heat
46	Dampener (2)
47	WPW10141625 Whirlpool Refrigerator Screw Assembly
48	Clamp Tube
49	Pan, Drip
50	978026 Whirlpool Refrigerator Primary Valve
50	VALVE, ACCESS (5/8“)
50	Screw, 1/4-28 x 1/2 (2)
50	978027 Whirlpool Refrigerator Primary Valve
50	VALVE, ACCESS (1/2“)
50	978030 Whirlpool Refrigerator Valve
50	WP978025 Whirlpool Refrigerator Valve
