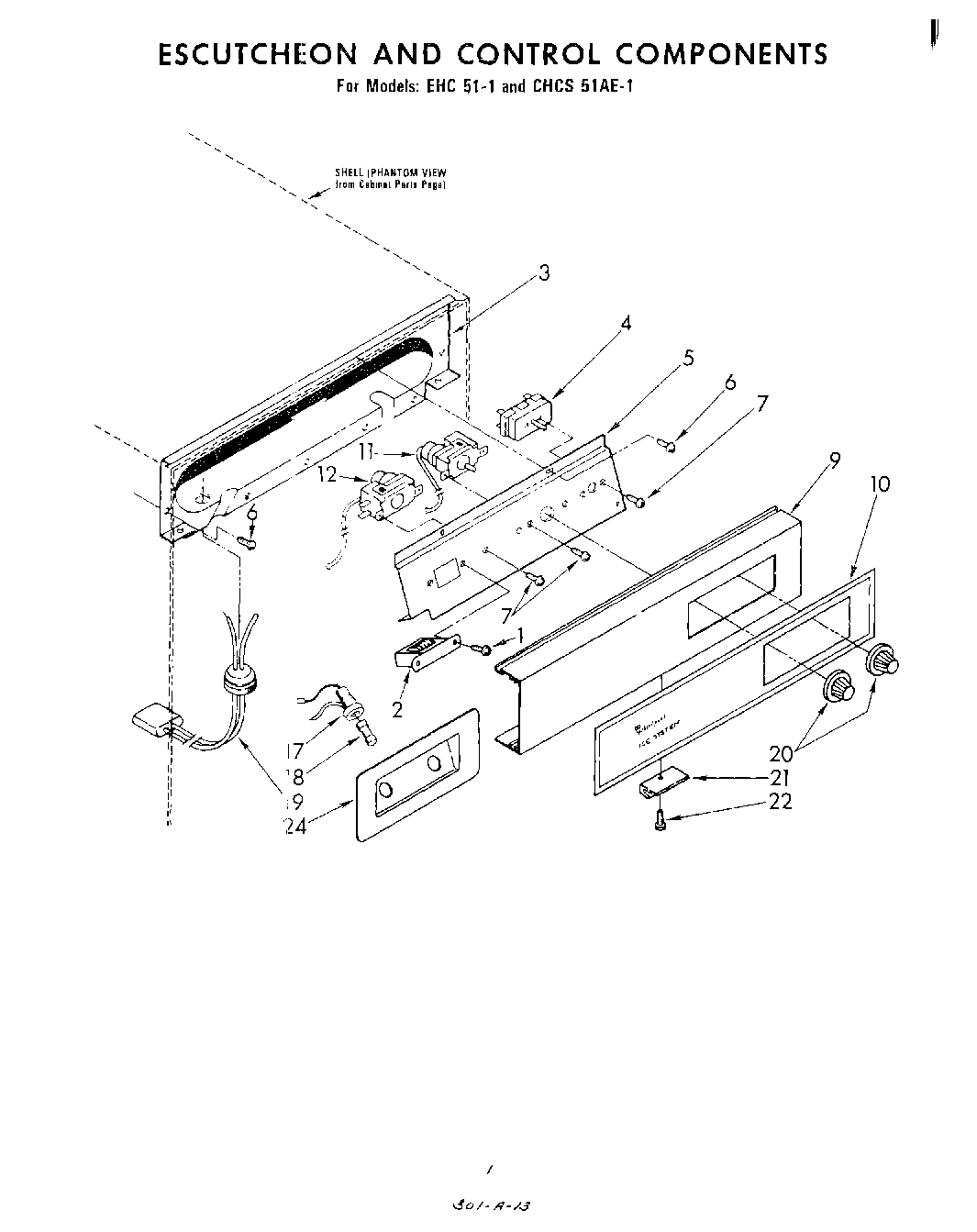

EHC511 05 – ESCUTCHEON AND CONTROL

Products

Position	Product
1	WPW10141625 Whirlpool Refrigerator Screw Assembly
2	Transformer
3	Panel, Rear Escutcheon
4	Switch, Rotary
5	Panel, Control
6	WP965173 Whirlpool Dishwasher Screw
7	WP486579 Whirlpool Air Conditioner Screw
9	Escutcheon (Includes 10, 21, 22 & 24)
10	Decal, Escutcheon
11	Thermostat, Evaporator
12	Thermostat, Bin Control
17	Holder, Fuse
18	Fuse
19	Harness, Grid
20	Knob
21	Latch
22	WPL 595295
24	Cup, Escutcheon
