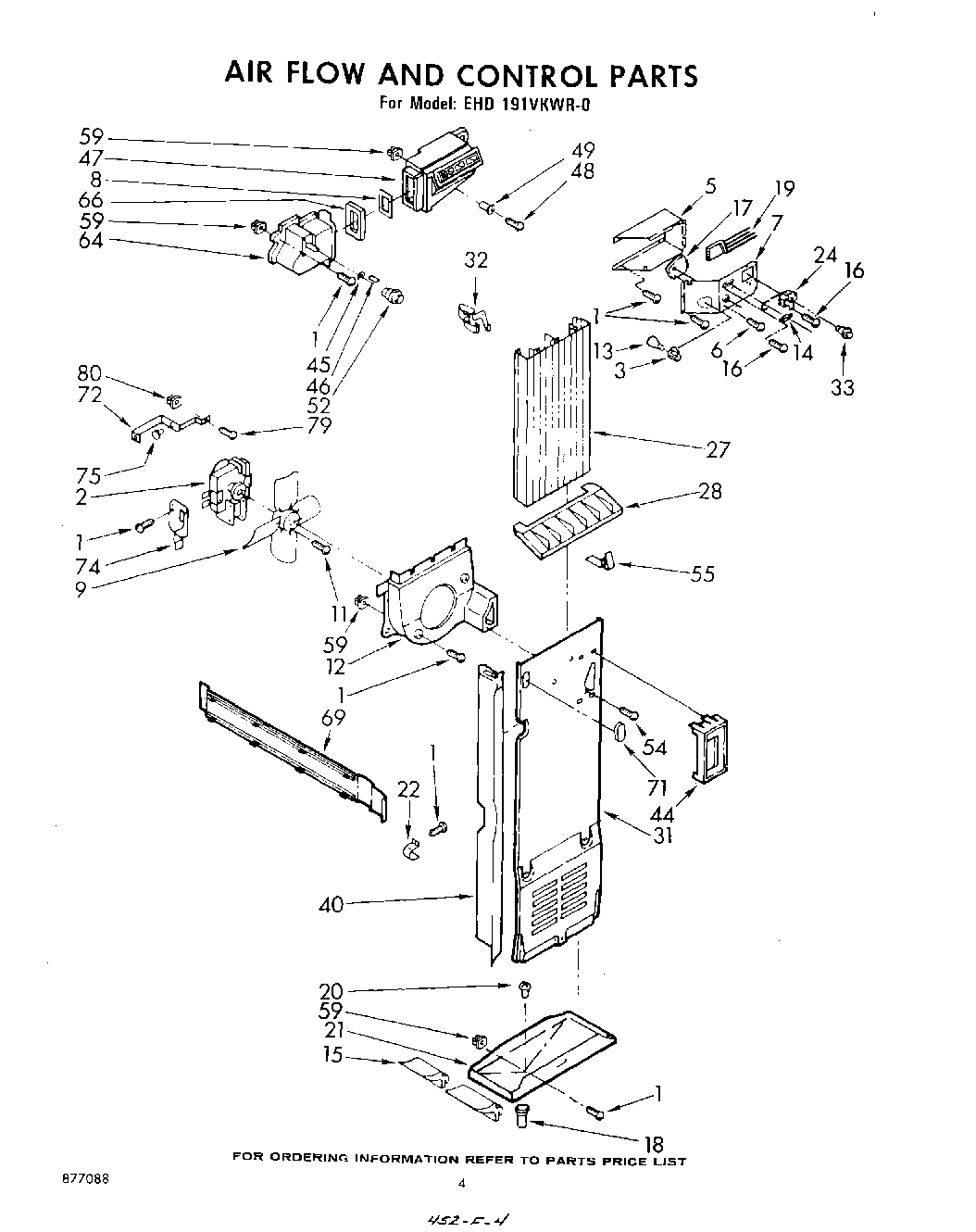

EHD191VKWR0 03 – AIRFLOW AND CONTROL
Written by
in
EHD191VKWR0 03 – AIRFLOW AND CONTROL
Products
Position
Product
1
W11624204 Whirlpool Screw
2
482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
3
4387478 Whirlpool Refrigerator Light Socket
5
Box, Control
6
WP3388228 Whirlpool Screw
7
Control Box, Front
8
Gasket, Air Diffuser
9
Blade, Fan
11
WP487887 Whirlpool Refrigerator Screw
12
Scroll Fan
13
RANGE ONLY 40W 120V APPL BULB
14
WPL 984640
15
Gasket, Drain Pan
16
WP489128 Whirlpool Refrigerator Screw
17
Defrost Timer, 8 Hour
17
Timer, Defrost (8 Hour- Alternate)
18
Fitting, Drain Pan
19
Liner Wiring (Defrost Timer)
20
Cap, Drain
21
Drain Pan
22
WPL 836077
24
WP819470 Whirlpool Refrigerator Thermostat
27
Duct, Air
28
End Cap, Evaporator
31
Cover, Evaporator
32
2215823 Whirlpool Refrigerator Clip
33
Knob, Temperature Control
40
Gasket (2)
44
Grille, Freezer
45
Retainer, Damper
46
Knob, Retainer
47
Air Diffuser
48
Screw, 8 x 1-1/4 (3)
49
836667 Whirlpool Refrigerator Spacer
52
Control Knob
54
WP488729 Whirlpool Refrigerator Door Screw
55
Baffle, Air
59
Grommet
64
Air Scoop Assembly
66
Gasket, Air Scoop
69
Cover, Exchanger
71
Hole Plug, Evaporator
72
Bracket, Fan Mounting (Single)
74
Fan, Bracket Double
75
Grommet (3)
79
WP489069 Whirlpool Compactor Screw
80
Screw Grommet
←
