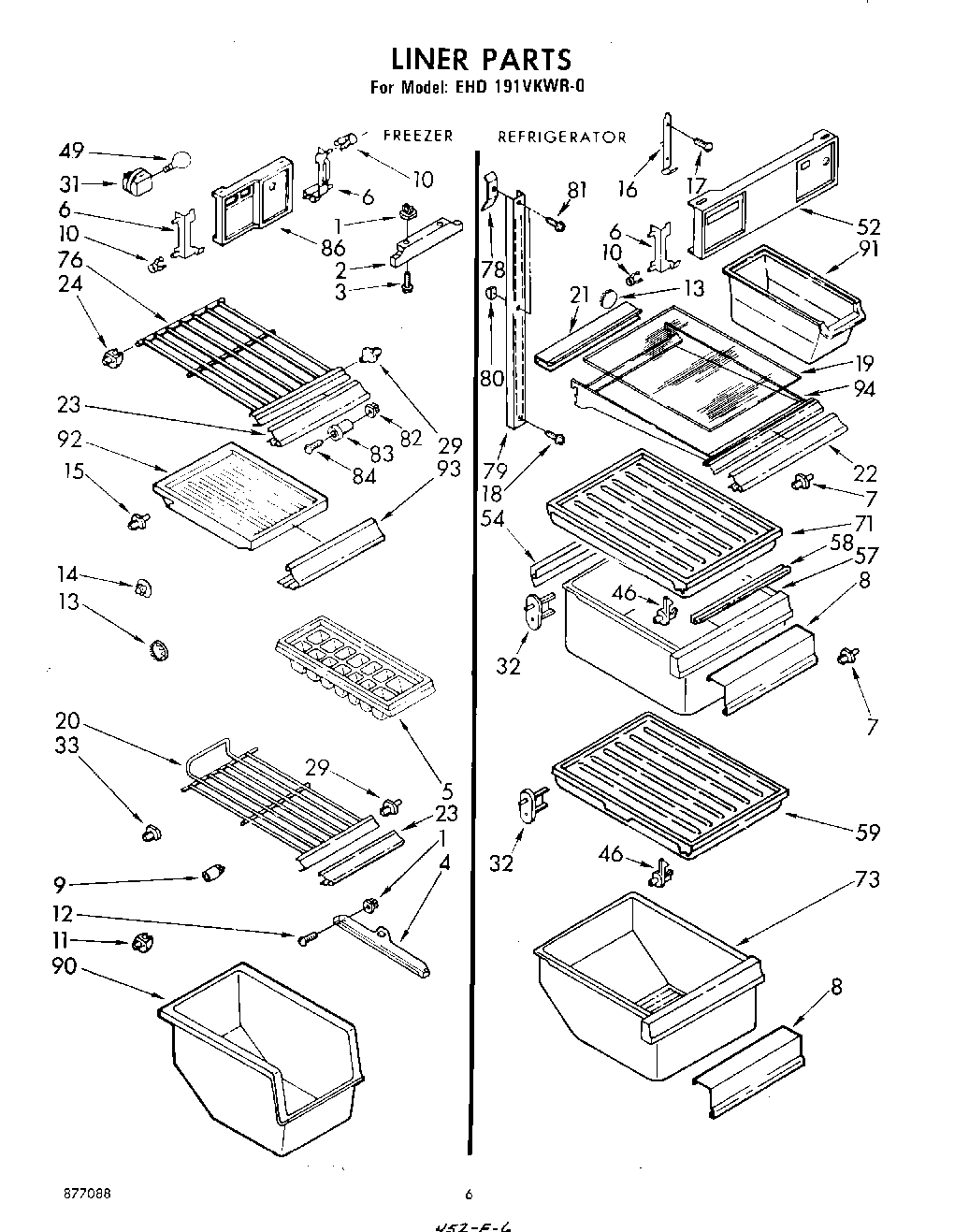

EHD191VKWR0 04 – LINER

Products

Position	Product
1	Grommet
2	Baffle, Liner Top
3	WP489069 Whirlpool Compactor Screw
4	Slide, Freezer Bin
5	WP841180A Whirlpool Microwave Glass Turntable Tray
6	Support, Light Lens (L.S.)
6	Support, Light Lens (R.S.)
7	Shelf, Stud
8	Overlay, Front Cover
9	Grommet
10	Clip, Tubular
11	Shelf Support
12	Screw, 8 x 1
13	Hole, Plug
14	Hole, Plug
15	Stud, Shelf (2)
16	Support, Light Lens
17	W11624204 Whirlpool Screw
18	Screw (Repair)
18	Screw, 8-32 x 1-1/4
19	Glass, Shelf
20	Shelf, Ice Pan (2)
21	Retainer, Glass Shelf
22	Trim, Shelf Front
23	Trim, Shelf Front
24	Shelf Stud, Saddle
24	Shelf Stud Saddle (R.S.)
29	Shelf, Stud (2)
31	4387478 Whirlpool Refrigerator Light Socket
32	Stud, Shelf (2)
33	Retainer Stud
46	Stud, Shelf (2)
49	RANGE ONLY 40W 120V APPL BULB
52	Light Lens, R.C.
54	Crisper Basket, Rear
57	Pan, Crisper
58	Crisper Gasket Front
59	Slide & Cover Meat Pan (Frost Ivory)
71	Slide & Cover, Crisper Pan (Light Smoke)
73	Pan, Meat
76	Shelf (2)
78	Screw, Anchor (3)
79	Shelfladder (2)
80	520965 Whirlpool Refrigerator Support
81	Screw, 8 x 1-1/4 (3)
82	Screw Grommet
83	Stud
84	Screw
86	Light Lens, Freezer
90	WPL 935319
91	WP982704 Whirlpool Refrigerator Container
92	WPL 935318
93	Trim, Shelf
94	WPL 936796
