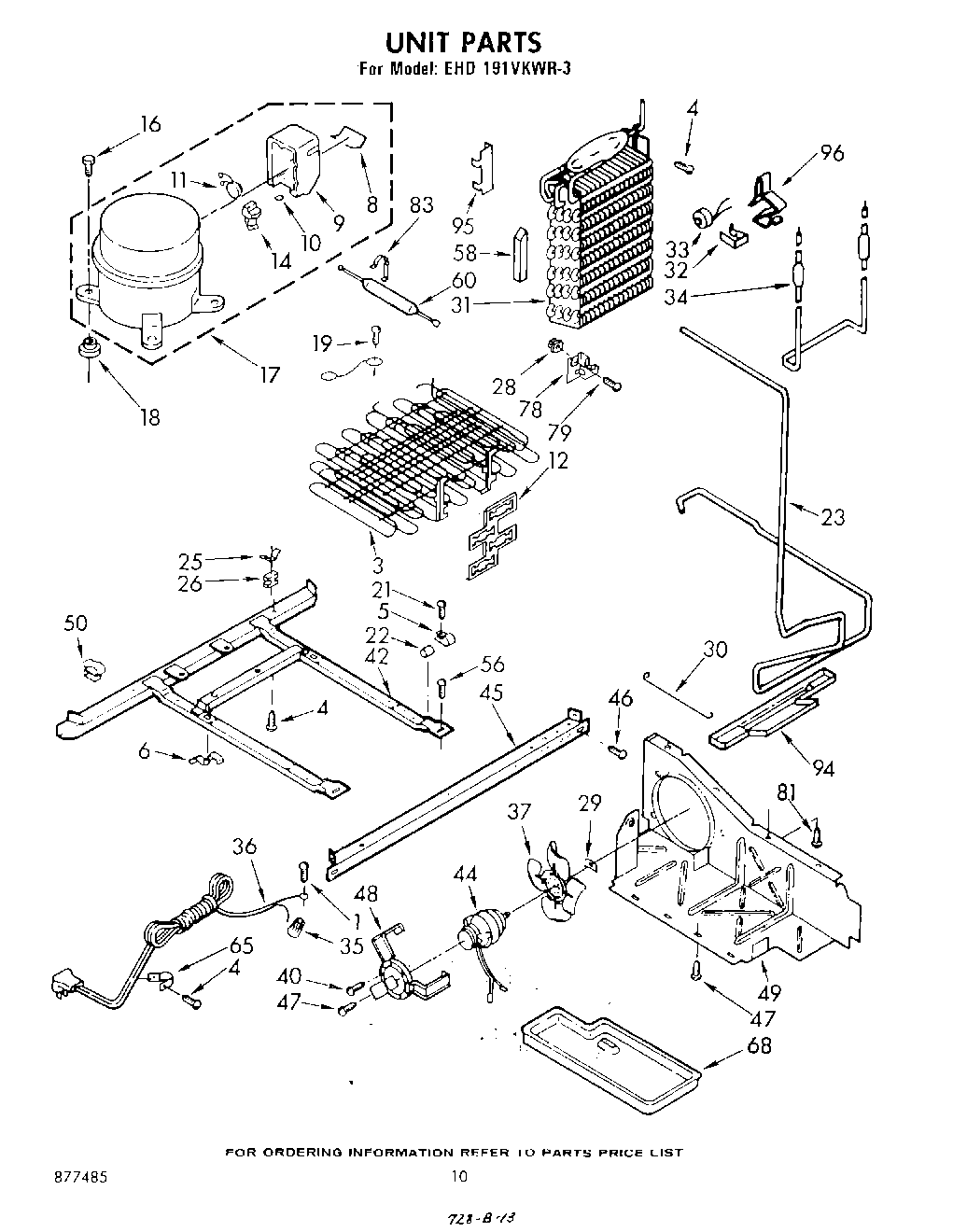

EHD191VKWR3 06 – UNIT

Products

Position	Product
1	Screw, 8-32 x 3/8
3	Condenser & Precooler Assembly
4	W11624204 Whirlpool Screw
5	Clamp Tube
6	Clip (2)
8	Spring
9	Case, Relay
10	Bumper
11	Overload
12	Spacer Condenser (4)
14	Relay (Alternate)
16	Screw, 1/4-28 x 1“ (4)
17	Compressor Kit (Includes Items 4, 5, 8, 9 & 10)
18	Grommet (4)
19	303776 Whirlpool Dishwasher Screw
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Dampener (2)
23	Exchanger, Heat
25	Clamp (4)
26	Grommet (4)
28	Grommet, Screw
29	WP486692 Whirlpool Refrigerator Nut
30	Guard, Fan
31	Evaporator
32	Clamp
33	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
34	WP549433 Whirlpool Refrigerator Heater
35	Wire Connector
36	Cord, Service
37	Fan, Blade
40	Screw, 8-36 x 3/8 (3)
42	Frame
44	833697 Whirlpool Condenser Fan Motor
45	Rail, Front
46	489340 Whirlpool Refrigerator Screw
47	Screw, 8 x 3/8
48	Bracket, Motor
49	Baffle
50	Clip, Wire (2)
56	Screw, 1/4-28 x 1/2 (2)
58	Air Baffle, Evaporator
60	W10843121 Whirlpool Refrigerator Tube
65	549193 Whirlpool Refrigerator Power Clamp
68	WPL 842041
78	Support, Evaporator
79	SCREW
81	Screw, 8-15 x 3/8
83	Clamp
94	Pan, Drip
95	Shield, Heat (2)
96	VALVE, ACCESS (5/8“)
96	Heater, Clamp (4)
96	VALVE, ACCESS (1/2“)
96	978026 Whirlpool Refrigerator Primary Valve
96	WP978025 Whirlpool Refrigerator Valve
96	978030 Whirlpool Refrigerator Valve
96	978027 Whirlpool Refrigerator Primary Valve
