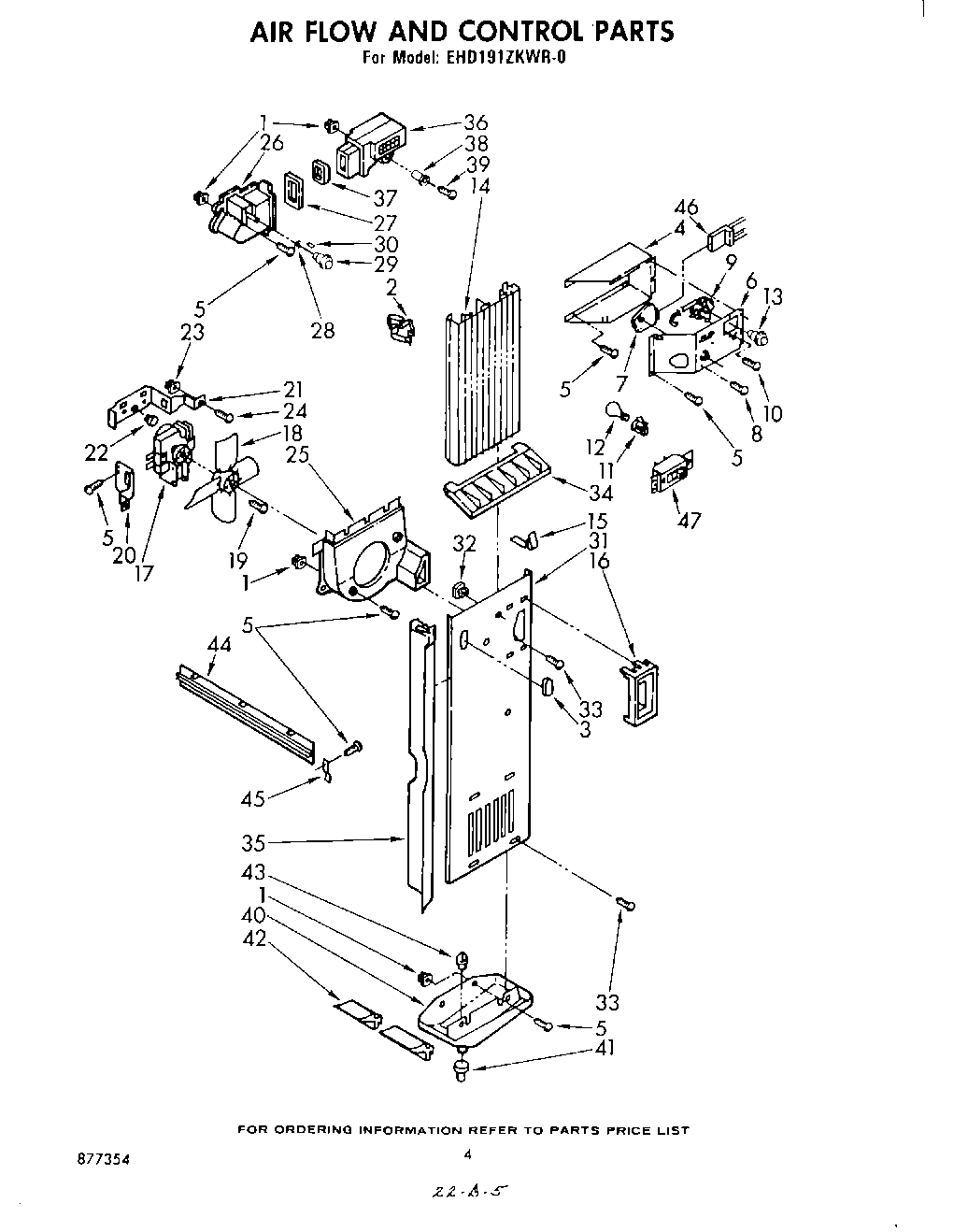

EHD191ZKWR0 03 – AIR FLOW AND CONTROL , PARTS NOT IL

Products

PositionProduct
1Grommet
22215823 Whirlpool Refrigerator Clip
3Hole Plug, Evaporator
4Box, Control
5W11624204 Whirlpool Screw
6Control Box, Front
7Defrost Timer, 8 Hour
8WP3388228 Whirlpool Screw
9WP819470 Whirlpool Refrigerator Thermostat
10WP489128 Whirlpool Refrigerator Screw
114387478 Whirlpool Refrigerator Light Socket
12RANGE ONLY 40W 120V APPL BULB
13Knob, Temperature Control
14Duct, Air
15Baffle, Air
16Grille, Freezer
17482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
18Blade, Fan
19WP487887 Whirlpool Refrigerator Screw
20Fan, Bracket Double
21Bracket, Fan Mounting (Single)
22Grommet (3)
23Screw Grommet
24WP489069 Whirlpool Compactor Screw
25Scroll Fan
26Air Scoop Assembly
27Gasket, Air Scoop
28Retainer, Damper
29Control Knob
30Knob, Retainer
31Cover, Evaporator
32Grommet
33WP488729 Whirlpool Refrigerator Door Screw
34End Cap, Evaporator
35Gasket (2)
36Air Diffuser
37Gasket, Air Diffuser
38836667 Whirlpool Refrigerator Spacer
39Screw, 8 x 1-1/4 (3)
40Drain Pan
41Fitting, Drain Pan
42Gasket, Drain Pan
43Cap, Drain
44Cover, Exchanger
45WPL 836077
46Liner Wiring (Defrost Timer)
47WPL 984640
47WPL 942174
47WPL 942173
47WPL 942172
47WPL 934460
47WPL 877354
47Golden Harvest
47WPL 511881
47WPL 799351
47Transformer (115-230 Volt)
47Silicone (Spray)
47876370 Whirlpool Refrigerator Insulation
47833938 Whirlpool Refrigerator Terminal
47606755 Whirlpool Refrigerator Bag
47511873 Whirlpool Refrigerator Paint
47350942 Whirlpool Spray Paint
47212643 Whirlpool Refrigerator Permagum Sealer
47Golden Harvest (Uncut)
4772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
47Almond (Uncut)
47Leveler (Thinner)
47WP72107 Whirlpool Touchup
47799344 Whirlpool Refrigerator Paint
4772017 Whirlpool Appliance Touch-Up Paint White
47350956 Whirlpool Spray Assembly
47WP505587 Whirlpool Refrigerator Sealer
47WP542638 Whirlpool Refrigerator Grease
47Enamel, New Avocado (1 Qt. Uncut)
47Enamel, Coffee (1 Qt. Uncut)
47paint, spray 13 oz. (coffee)
47Paint, Spray 13 Oz. (Avocado)
47Paint, Touch-Up 1/2 Oz. (Coffee)
4772109 Whirlpool Dacor Avocado Touch-Up Paint
4772032 Whirlpool Touch Up Paint Black
47285006 Whirlpool Spray
47WPL 876029
47WPL 799833
47WPL 799832
47Enamel, Black (1 Qt. Uncut)
47CEMENT, ALUMILASTIC (1 1/4 OZ.)
47TAPE, VINYL (3/4 X 108“)
47350930 Whirlpool White Spray Paint
