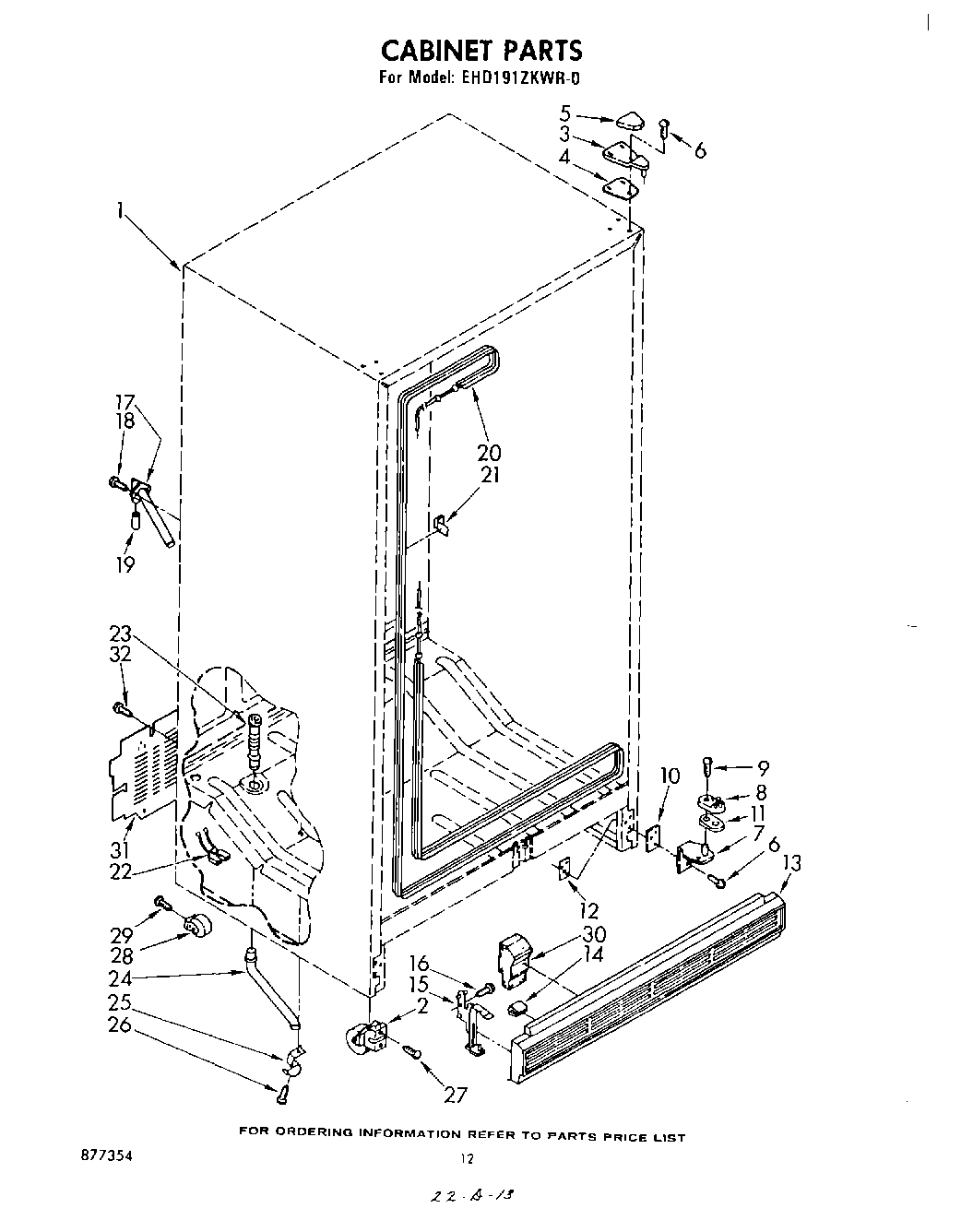

EHD191ZKWR0 07 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Hinge, Top
4	WPL 836151
5	Hinge Cover (New Avocado)
5	1119787 Whirlpool Refrigerator Hinge Cover
5	Hinge Cover (Golden Harvest)
5	Hinge, Cover (Coffee)
6	Screw (Repair)
6	WP999367 Whirlpool Refrigerator Screw
7	Hinge Bottom (R.H)
7	Hinge Bottom (L.H)
8	WPW10329686 Whirlpool Door Cam Black
9	WP486579 Whirlpool Air Conditioner Screw
9	Screw (Repair)
10	Shim, Bottom Hinge
11	Shim, Door Closer
12	Tap Plate
13	Exterior Grille (New Avocado)
13	Exterior Grille (White)
13	Exterior Grille (Coffee)
13	Exterior Grille (Golden Harvest)
13	Exterior Grille (Almond)
14	Bumper, Grille
15	WPL 844614
16	W11624204 Whirlpool Screw
17	Fitting, Water Tube
18	WP98165 Whirlpool Screw
19	WP487996 Whirlpool Refrigerator Cap Tube
20	Heater, Stile
21	WPL 935663
22	WPL 548734
23	WPL 836068
24	Extension, Drain Fitting
25	Cup, Drain Extension
26	Screw, 8-15 x 3/8
27	Screw, 5/16-24 x 1
28	WPW10250570 Whirlpool Refrigerator Cabinet Roller
29	Screw, 1/4-28 x 1/2 (2)
30	WPL 836372
31	WPL 850457
