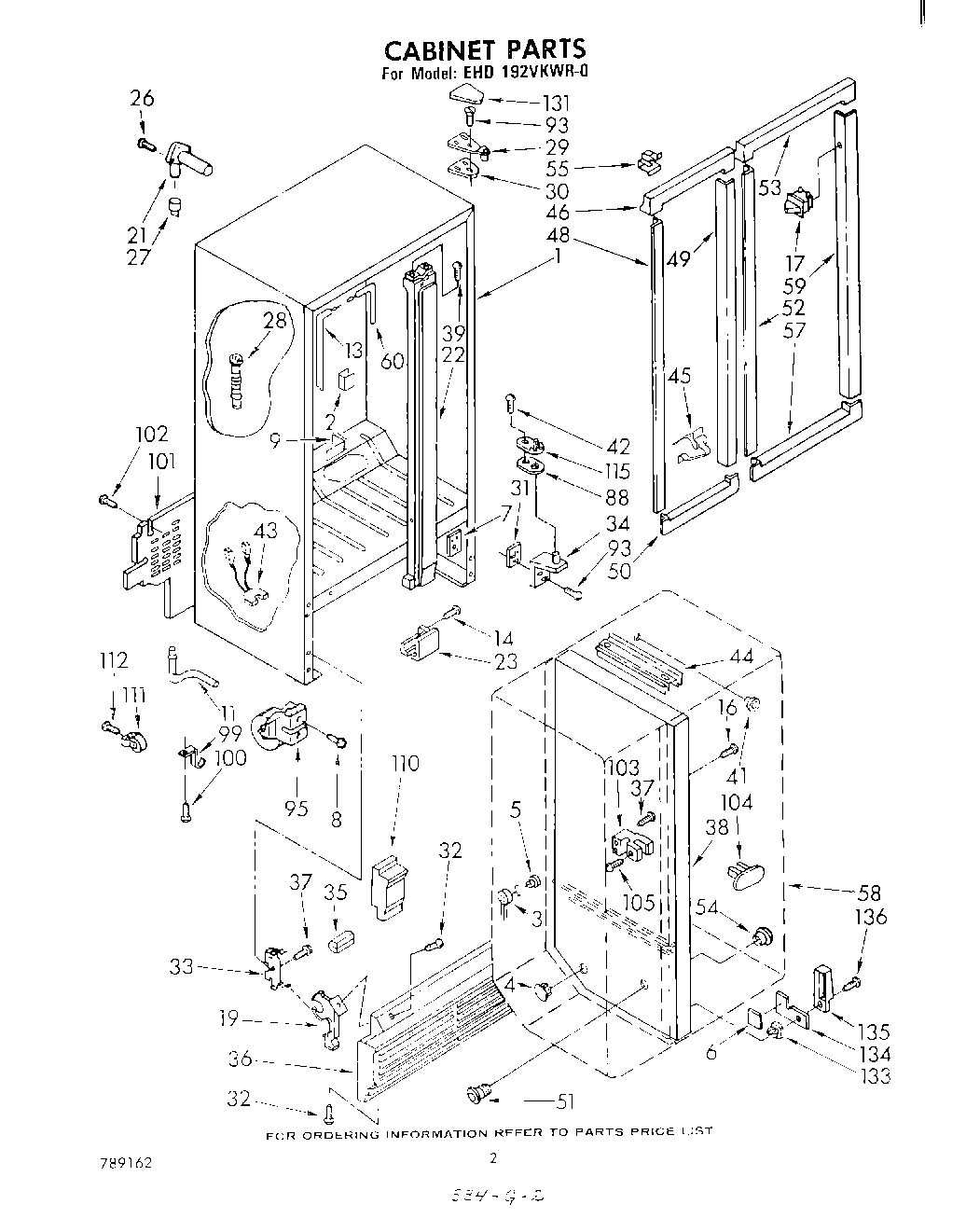

EHD192VKWR0 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Clip, Heater (2)
3	Wiring, Ice Maker
4	Hole Plug (2)
5	Receptacle Cap
6	Pad, Foam
7	Tap Plate
8	Screw, 5/16-24 x 1
9	WPL 935663
11	Extension, Drain Fitting
13	Heater, Stile
14	WP488729 Whirlpool Refrigerator Door Screw
16	WP489069 Whirlpool Compactor Screw
17	W11384469 Whirlpool Door Switch
19	WP944224 Whirlpool Refrigerator Support
21	Fitting, Water Tube
22	Center Rail & Bracket Assembly (New Avocado)
22	Center Rail & Bracket Assembly (Almond)
22	Center Rail & Bracket Assembly (Golden Harvest)
22	Center Rail & Bracket Assembly (Coffee)
22	Center Rail & Bracket Assembly (White)
22	Center Rail & Bracket Assembly (Toast)
22	Center Rail & Bracket Assembly (Platinum)
23	WPL 549947
26	WP98165 Whirlpool Screw
27	WP487996 Whirlpool Refrigerator Cap Tube
28	WPL 836068
29	Hinge, Top
30	Shim, Hinge
31	Shim, Bottom Hinge
32	WPL 489085
33	WPL 989068
34	Hinge Bottom (L.H)
34	Hinge Bottom (R.H)
35	Bumper, Grille
36	Exterior, Grille (Golden Harvest)
36	Exterior, Grille (Toast)
36	Exterior, Grille (Platinum)
36	Exterior, Grille (Coffee)
36	Exterior Grille (New Avocado)
36	Exterior, Grille (Almond)
36	Exterior, Grille (White)
37	W11624204 Whirlpool Screw
38	Div
39	Screw, 8 x 3/8
39	WP308685 Whirlpool Microwave Screw
41	Grommet, Wiring
42	WP486579 Whirlpool Air Conditioner Screw
42	Screw (Repair)
43	WPL 548734
44	WPL 842435
45	Clip, Breaker Retainer (2)
46	WPL 843334
48	WPL 836174
49	WPL 836108
50	WPL 836447
51	Retainer, Hole Insert
52	WPL 836213
53	WPL 843335
54	Insert, Hole
55	Breaker, Clip
57	WPL 836446
58	WPL ARI39345A7
59	WPL 842178
60	WPL 851874
88	Shim, Door Closer
93	Screw (Repair)
93	WP999367 Whirlpool Refrigerator Screw
95	Roller, Front
99	Cup, Drain Extension
100	Screw, 8-15 x 3/8
101	WPL 850457
103	WPL 836079
104	WPL 836080
105	Screw (2)
110	WPL 836372
111	WPW10250570 Whirlpool Refrigerator Cabinet Roller
112	Screw, 1/4-28 x 1/2 (2)
115	WPW10329686 Whirlpool Door Cam Black
131	Hinge Cover (New Avocado)
131	Hinge, Cover (Coffee)
131	Hinge Cover (Golden Harvest)
131	1119787 Whirlpool Refrigerator Hinge Cover
131	Hinge Cover (Toast)
133	Grommet
134	Slide, Meat Pan Control
135	Escutcheon, Meat Pan Control
136	Screw, 8-15 x 1/2 (4)
