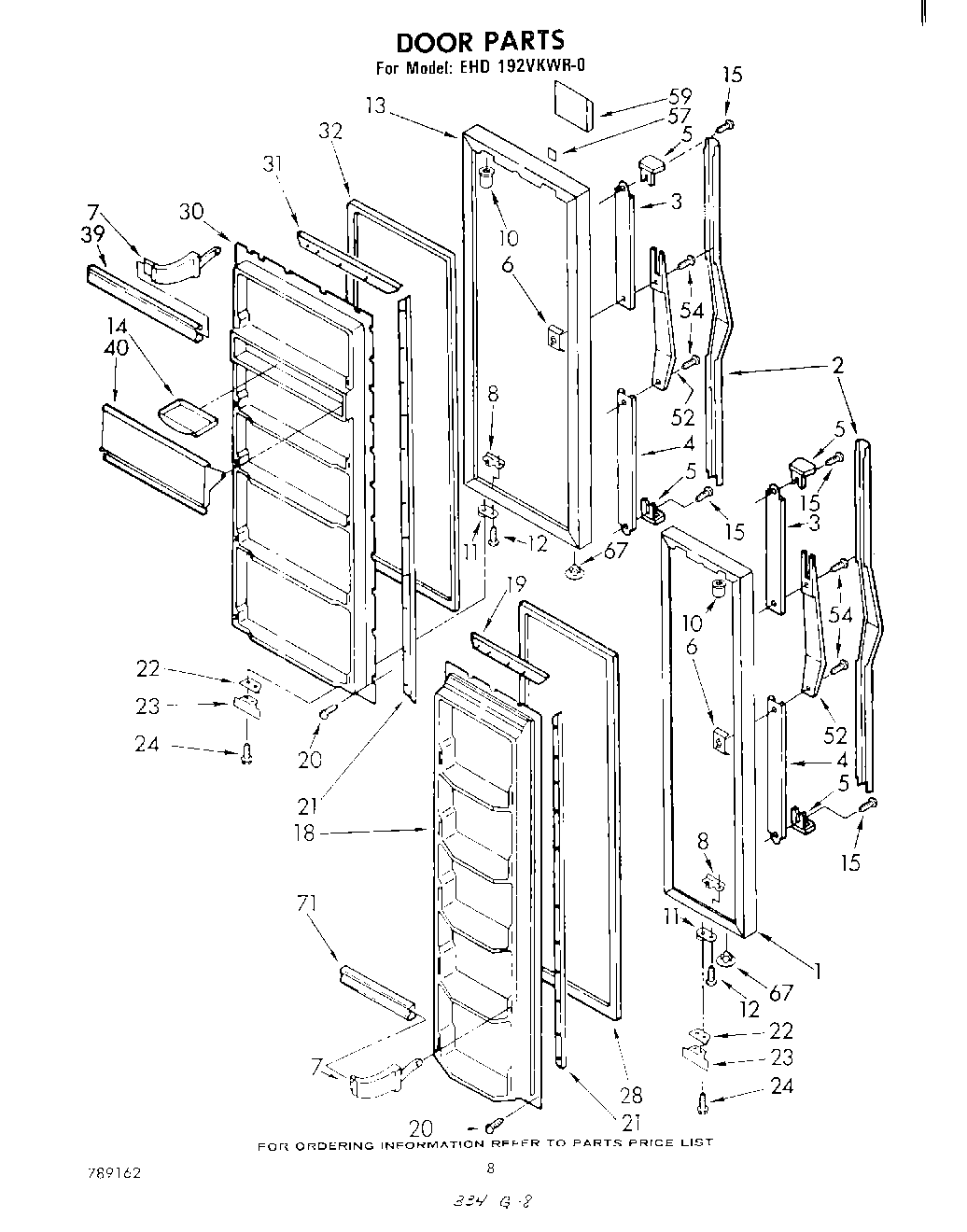

EHD192VKWR0 05 – DOOR , LIT/OPTIONAL

Products

Position	Product
1	Door, Freezer (Golden Harvest)
1	Door, Freezer (Coffee)
1	Door, Freezer (White)
1	Door, Freezer (New Avocado)
1	Freezer, Door Panel (Platinum)
1	Door, Freezer (Almond)
1	Freezer, Door Panel (Toast)
2	Insert, Handle (Toast)
2	Insert, Handle (White, Coffee, & Almond)
2	Insert, Handle (Platinum)
2	Insert, Handle (New Avocado)
2	Insert, Handle (Golden Harvest)
3	Retainer, Top
4	Retainer, Bottom
5	Cap, Handle (2)
6	WP939101 Whirlpool Refrigerator Plate
7	WP849996 Whirlpool Refrigerator Endcap Trim
8	Tap Plate
10	Cap, Hinge Sleeve (2)
11	4318165 Whirlpool Refrigerator Door Closure Cam Kit
12	WP489069 Whirlpool Compactor Screw
13	Door, Refrigerator (White)
13	Refrigerator, Door Panel (Platinum)
13	Door, Refrigerator (Almond)
13	Door, Refrigerator (New Avocado)
13	Door, Refrigerator (Golden Harvest)
13	Door, Refrigerator (Coffee)
13	Refrigerator, Door Panel (Toast)
15	Screw, 10-32 x 5/8
18	Panel, Interior
18	Panel, Interior
19	Retainer, Top & Bottom Gasket
20	SCREW
21	Retainer Side, Gasket
22	Shim
23	Bracket, Door Stop
24	Screw, 89 x 5/8
28	2188405A Whirlpool Refrigerator Door Gasket
30	WPL 943827
30	Panel, Interior
31	Retainer, Top & Bottom
32	2188404A Whirlpool Refrigerator Door Gasket
39	WPL 849806
40	Compartment Door
52	Handle
54	W11624204 Whirlpool Screw
57	Tape Strip
59	WPL 945121
67	Hole Plug (2)
71	WPL 789162
71	WPL 944001
71	WPL 945511
71	WPL 1100052
71	WPL 936844
71	Energy Label
71	Kit, Evaporator Repair (Aluminum Epoxy)
71	WP503695 Whirlpool Refrigerator Sealer
71	876370 Whirlpool Refrigerator Insulation
71	606755 Whirlpool Refrigerator Bag
71	511873 Whirlpool Refrigerator Paint
71	350942 Whirlpool Spray Paint
71	212643 Whirlpool Refrigerator Permagum Sealer
71	Golden Harvest (Uncut)
71	Golden Harvest
71	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
71	Almond (Uncut)
71	Leveler (Thinner)
71	WP72107 Whirlpool Touchup
71	799344 Whirlpool Refrigerator Paint
71	72017 Whirlpool Appliance Touch-Up Paint White
71	350956 Whirlpool Spray Assembly
71	WP505587 Whirlpool Refrigerator Sealer
71	WP542638 Whirlpool Refrigerator Grease
71	WPL 799351
71	Silicone (Spray)
71	Enamel, New Avocado (1 Qt. Uncut)
71	Enamel, Coffee (1 Qt. Uncut)
71	Paint, Spray 13 Oz. (Avocado)
71	paint, spray 13 oz. (coffee)
71	Paint, Touch-Up 1/2 Oz. (Coffee)
71	72109 Whirlpool Dacor Avocado Touch-Up Paint
71	72032 Whirlpool Touch Up Paint Black
71	285006 Whirlpool Spray
71	WPL 876029
71	WPL 799832
71	Enamel, Black (1 Qt. Uncut)
71	CEMENT, ALUMILASTIC (1 1/4 OZ.)
71	TAPE, VINYL (3/4 X 108“)
71	350930 Whirlpool White Spray Paint
