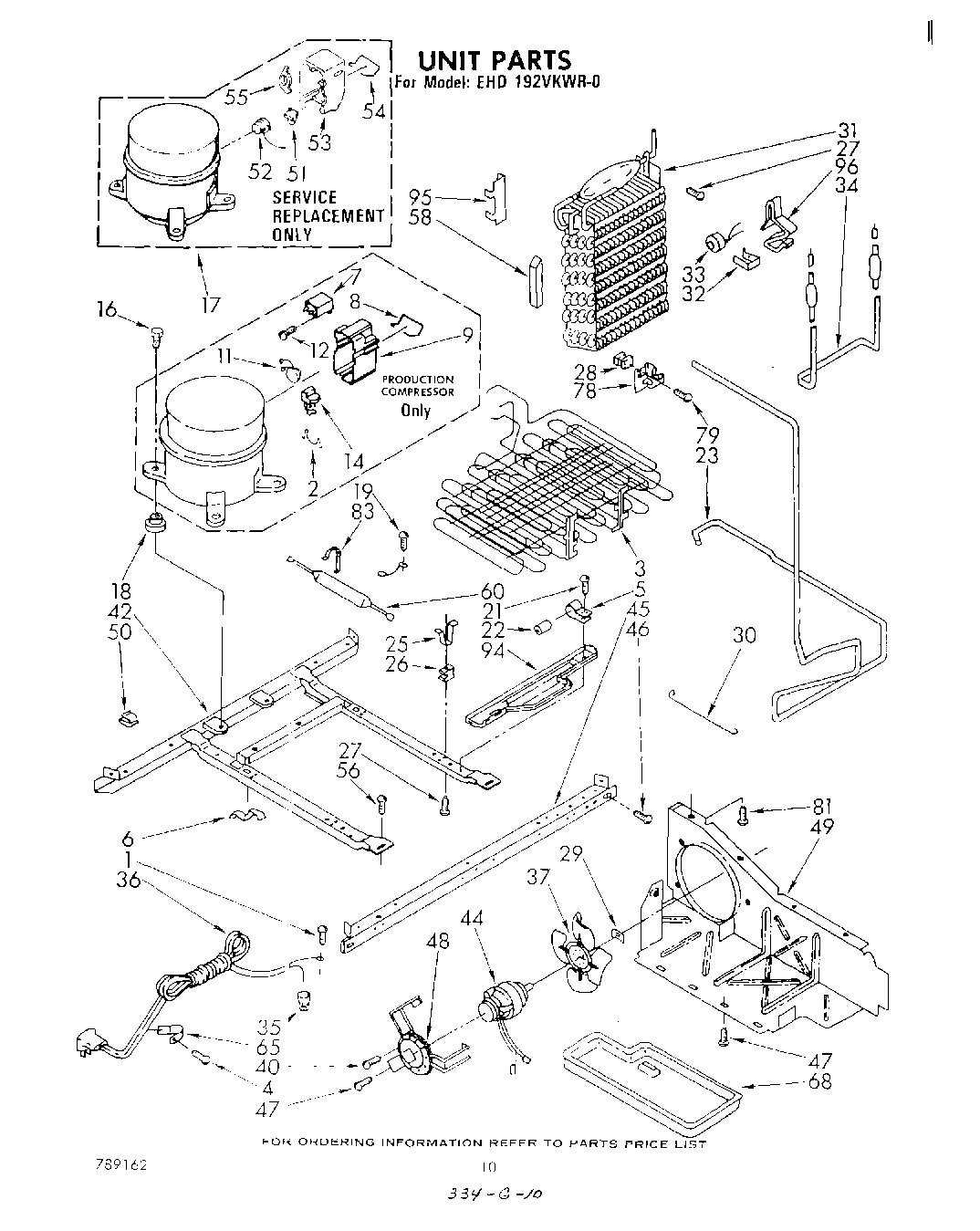

EHD192VKWR0 06 – UNIT

Products

Position	Product
1	Screw, 8-32 x 3/8
2	Spring, Overload
3	Condenser & Precooler
5	Clamp Tube
6	Clip (2)
7	WPW10662129 Whirlpool Refrigerator Run Capacitor
8	case spring
9	relay case
11	Overload
14	Relay
17	W10439652 Whirlpool Refrigerator Compressor
18	876811 Whirlpool Grommet
19	303776 Whirlpool Dishwasher Screw
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Dampener (2)
23	Exchanger, Heat
25	Clamp (4)
26	Grommet (4)
27	W11624204 Whirlpool Screw
28	Grommet, Screw
29	WP486692 Whirlpool Refrigerator Nut
30	Guard, Fan
31	Evaporator
32	Clamp
33	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
34	WP549433 Whirlpool Refrigerator Heater
35	Wire Connector
36	Cord, Service
37	Fan, Blade
40	Screw, 8-36 x 3/8 (3)
42	Frame
44	833697 Whirlpool Condenser Fan Motor
45	Rail, Front
46	489340 Whirlpool Refrigerator Screw
47	Screw, 8 x 3/8
48	Bracket, Motor
49	Baffle
50	Clip, Wire (2)
51	Relay
52	Overload
53	Cover, Terminal
54	Cover, Spring
55	Spring, Overload
56	Screw, 1/4-28 x 1/2 (2)
58	Air Baffle, Evaporator
60	W10843121 Whirlpool Refrigerator Tube
65	549193 Whirlpool Refrigerator Power Clamp
68	WPL 842041
78	Support, Evaporator
79	SCREW
81	Screw, 8-15 x 3/8
83	Clamp
94	Pan, Drip
95	Shield, Heat (2)
96	978027 Whirlpool Refrigerator Primary Valve
96	978026 Whirlpool Refrigerator Primary Valve
96	Heater, Clamp (4)
96	978030 Whirlpool Refrigerator Valve
96	VALVE, ACCESS (5/8“)
96	WP978025 Whirlpool Refrigerator Valve
96	VALVE, ACCESS (1/2“)
96	876764 Whirlpool Refrigerator Primary Valve
