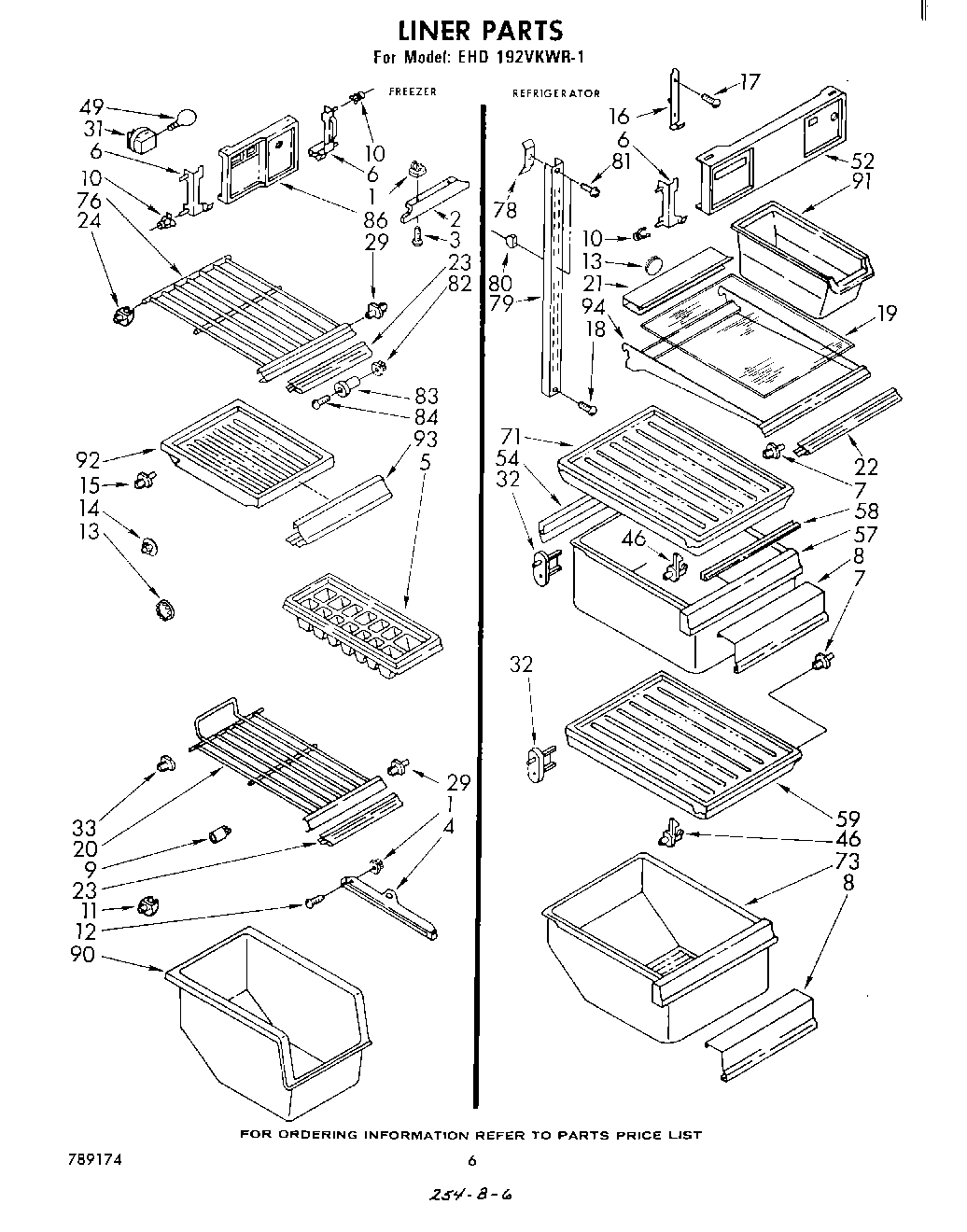

EHD192VKWR1 04 – LINER

Products

Position	Product
1	Grommet
2	Baffle, Liner Top
3	WP489069 Whirlpool Compactor Screw
4	Slide, Freezer Bin
5	WP841180A Whirlpool Microwave Glass Turntable Tray
6	Support, Light Lens (R.S.)
6	Support, Light Lens (L.S.)
7	Shelf, Stud
8	Overlay, Front Cover
9	Grommet
10	Clip, Tubular
11	Shelf Support
12	Screw, 8 x 1
13	Hole, Plug
14	Hole, Plug
15	Stud, Shelf (2)
16	Support, Light Lens
17	W11624204 Whirlpool Screw
18	Screw (Repair)
18	Screw, 8-32 x 1-1/4
19	Glass, Shelf
20	Shelf, Ice Pan (2)
21	Retainer, Glass Shelf
22	Trim, Shelf Front
23	Trim, Shelf Front
24	Shelf Stud Saddle (R.S.)
24	Shelf Stud, Saddle
29	Shelf, Stud (2)
31	4387478 Whirlpool Refrigerator Light Socket
32	Stud, Shelf (2)
33	Retainer Stud
46	Stud, Shelf (2)
49	RANGE ONLY 40W 120V APPL BULB
52	Light Lens
54	Crisper Basket, Rear
57	Pan, Crisper (For Platinum Model Only)
57	Pan, Crisper
58	Crisper Gasket Front
59	Slide & Cover
59	Slide & Cover Meat Pan (Almond)
71	Slide & Cover, Crisper Pan (Light Smoke)
73	Meat, Pan (For Platinum Model Only)
73	Pan, Meat
76	Shelf (2)
78	Screw, Anchor (3)
79	Shelfladder (2)
80	520965 Whirlpool Refrigerator Support
81	Screw, 8 x 1-1/4 (3)
82	Screw Grommet
83	Stud
84	Screw
86	Light Lens, Freezer
90	Bin, Freezer (For Platinum Model
90	WPL 935319
91	WP982704 Whirlpool Refrigerator Container
92	Shelf, Solid
92	WPL 935318
93	Trim, Shelf
94	WPL 936796
