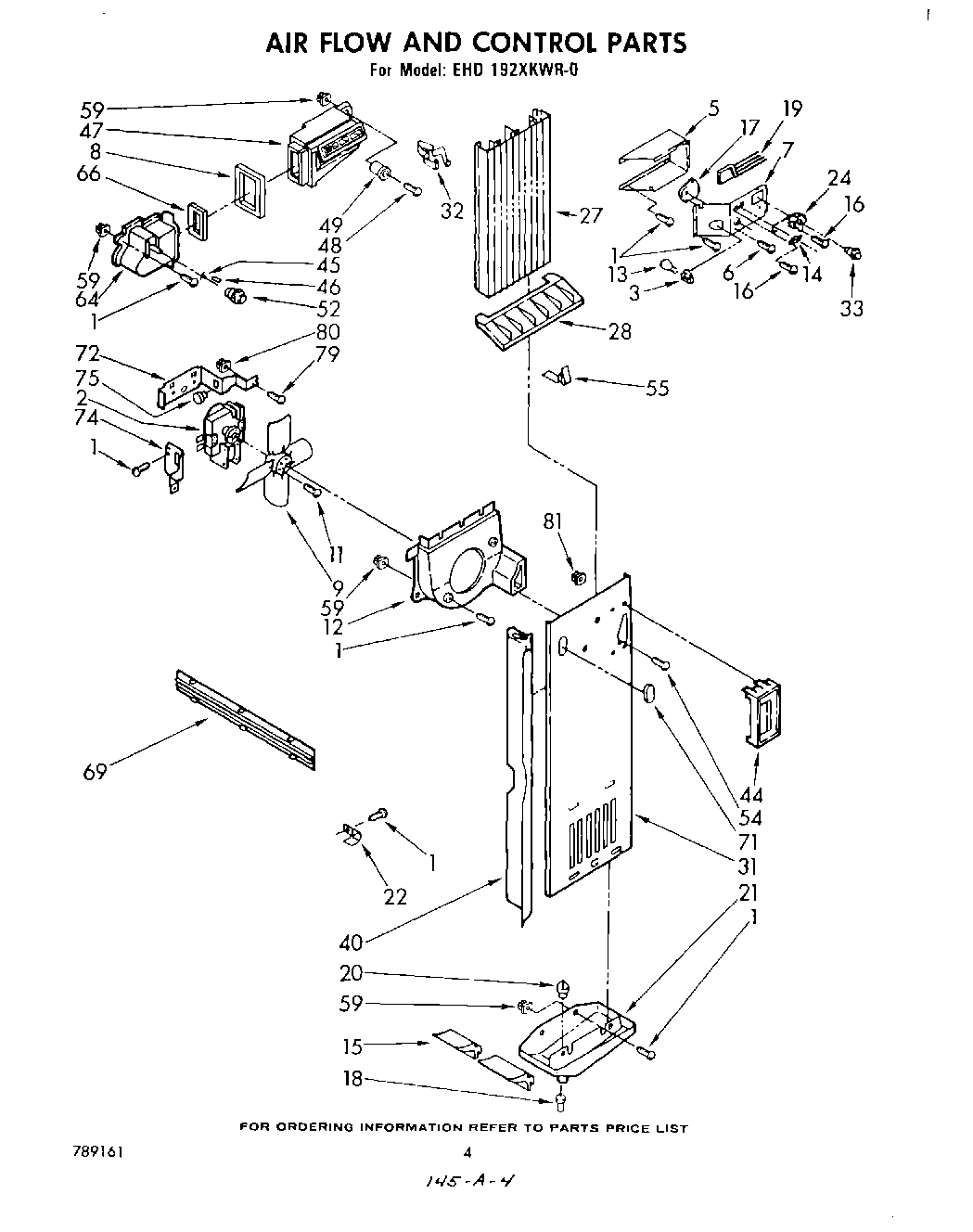

EHD192XKWR0 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	W11624204 Whirlpool Screw
2	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
3	4387478 Whirlpool Refrigerator Light Socket
5	Box, Control
6	WP3388228 Whirlpool Screw
7	Control Box Front
8	Gasket, Air Diffuser
9	Blade, Fan
11	WP487887 Whirlpool Refrigerator Screw
12	Scroll Fan
13	RANGE ONLY 40W 120V APPL BULB
14	WP938213 Whirlpool Refrigerator Power Switch
15	Gasket, Drain Pan
16	WP489128 Whirlpool Refrigerator Screw
17	Defrost Timer
18	Fitting, Drain Pan
19	Liner Wiring (Defrost Timer)
20	Cap, Drain
21	Drain Pan
22	WPL 836077
24	WP4317800 Whirlpool Refrigerator Thermostat
27	Duct, Air
28	End Cap, Evaporator
31	Cover, Evaporator
32	2215823 Whirlpool Refrigerator Clip
33	Knob, Temperature Control
40	Gasket (2)
44	Grille, Freezer
45	Retainer, Damper
46	Knob, Retainer
47	Air Diffuser Assembly
48	Screw, 8 x 1-1/4 (3)
49	836667 Whirlpool Refrigerator Spacer
52	Control Knob
54	WP488729 Whirlpool Refrigerator Door Screw
55	Baffle, Air
59	Grommet
64	Air Scoop Assembly
66	Gasket, Air Scoop
69	Cover, Exchanger
71	Hole Plug, Evaporator
72	Bracket, Fan Mounting (Single)
74	Fan, Bracket Double
75	Grommet (3)
79	WP489069 Whirlpool Compactor Screw
80	Screw Grommet
81	Grommet
