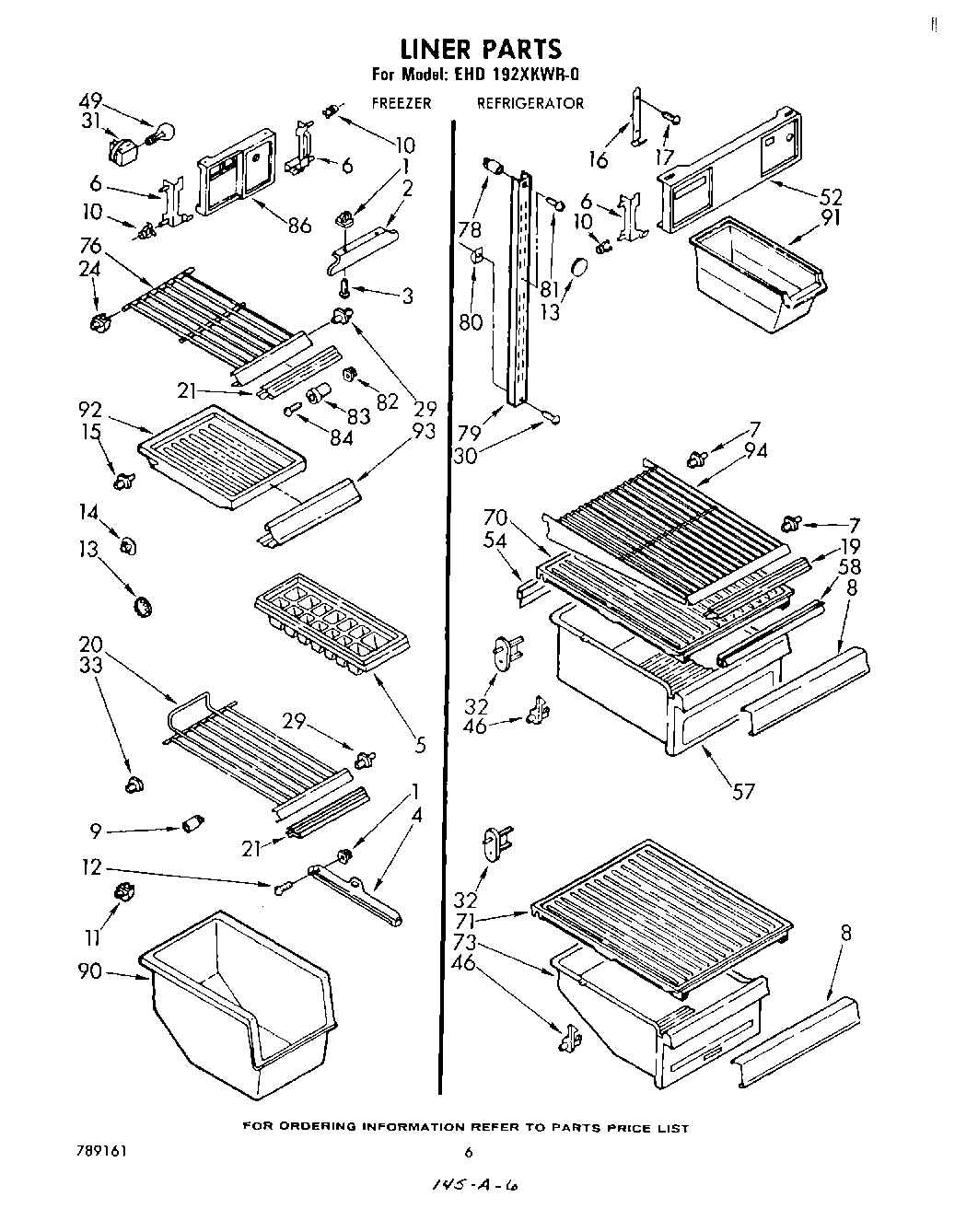

EHD192XKWR0 04 – LINER

Products

Position	Product
1	Grommet
2	Baffle, Liner Top
3	WP489069 Whirlpool Compactor Screw
4	Slide, Freezer Bin
5	WP841180A Whirlpool Microwave Glass Turntable Tray
6	Support, Light Lens (R.S.)
6	Support, Light Lens (L.S.)
7	Shelf, Stud
8	Overlay, Front Cover
9	Grommet
10	Clip, Tubular
11	Shelf Support
12	Screw, 8 x 1
13	Hole, Plug
14	Hole, Plug
15	Stud, Shelf (2)
16	Support, Light Lens
17	W11624204 Whirlpool Screw
19	Trim, Shelf Front
20	Shelf, Ice Pan (2)
21	Trim, Shelf Front
24	Shelf Stud, Saddle
24	Shelf Stud Saddle (R.S.)
29	Shelf, Stud (2)
30	Screw (Repair)
30	Screw, 8-32 x 1-1/4
31	4387478 Whirlpool Refrigerator Light Socket
32	Stud, Shelf (2)
33	Retainer Stud
46	Stud, Shelf (2)
49	RANGE ONLY 40W 120V APPL BULB
52	Light Lens
54	Crisper Basket, Rear
57	Pan, Crisper
58	Crisper Gasket Front
70	Slide & Cover
71	Slide & Cover
73	Pan, Meat
76	Shelf (2)
78	Screw, Grommet
79	Shelfladder (2)
80	520965 Whirlpool Refrigerator Support
81	Screw, 8 x 1-1/4 (3)
82	Screw Grommet
83	Stud
84	Screw
86	Light Lens, Freezer
90	Bin, Freezer
91	WP982704 Whirlpool Refrigerator Container
92	Shelf, Solid
93	Trim, Shelf
94	Shelf, Cantilever (4)
